Receiver Wiring Adaptor
120 70-1781
Revision 09/16/15
STEP 1 -- MATCH & CONNECT WIRES
*120701781*
IMPORTANT
Before starting, compare items on your invoice with items
received. Thoroughly check packing materials. If an item
is missing, please call
Crutchfield at 1-888-955-6000.
Secure the Ground Wire from the
receiver to the vehicle chassis.
Copyright 2015 Crutchfield Corporation

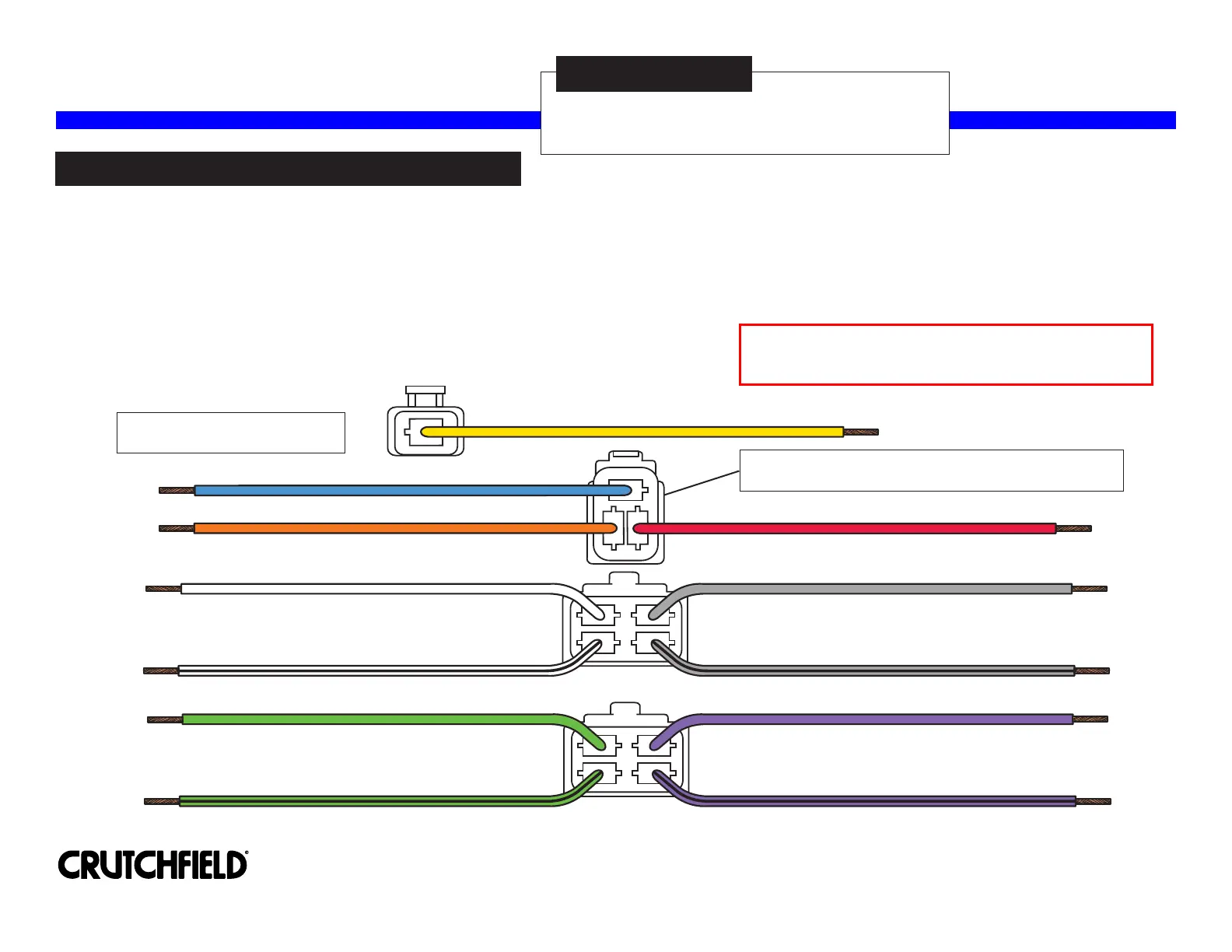

Red - 12 Volts Switched Power
Yellow - 12 Volts Constant Power
Orange - Illumination
Gray - Right Front Speaker Positive
Green - Left Rear Speaker Positive
Violet - Right Rear Speaker Positive
Gray/Black - Right Front Speaker NegativeWhite/Black - Left Front Speaker Negative
Green/Black - Left Rear Speaker Negative Violet/Black - Right Rear Speaker Negative
Blue - Power Antenna
White - Left Front Speaker Positive
If vehicle is factory-equipped with a power antenna, part
number 120 E5000 must be used with this power plug.
Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your
new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
Your receiver illumination wire could be Orange or Orange/White. As with other wires, match this wire to illumination wire in this harness by
function, not by color. If your receiver does not have an illumination wire, tape off the illumination wire.
Individually tape off any unused wires.
Make final wiring connections following instructions on the next page.
A.
B.
C.
D.
If you received instructions for the 120 E5000 wiring harness,
refer to those instructions for wiring of vehicles with factory-
equipped power antenna.
