Receiver Wiring Adaptor

120 70-1784

Revision 04/01/20

STEP 1 -- MATCH & CONNECT WIRES

A. Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your

new receiver may, or may not match the colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.

B. See pages 2 and 3 for application variations for Red and Yellow wires for specific vehicles.

C. See page 4 for application pin locations for the Blue and Blue/White wires for specific vehicles.

D. Individually tape off any unused wires.

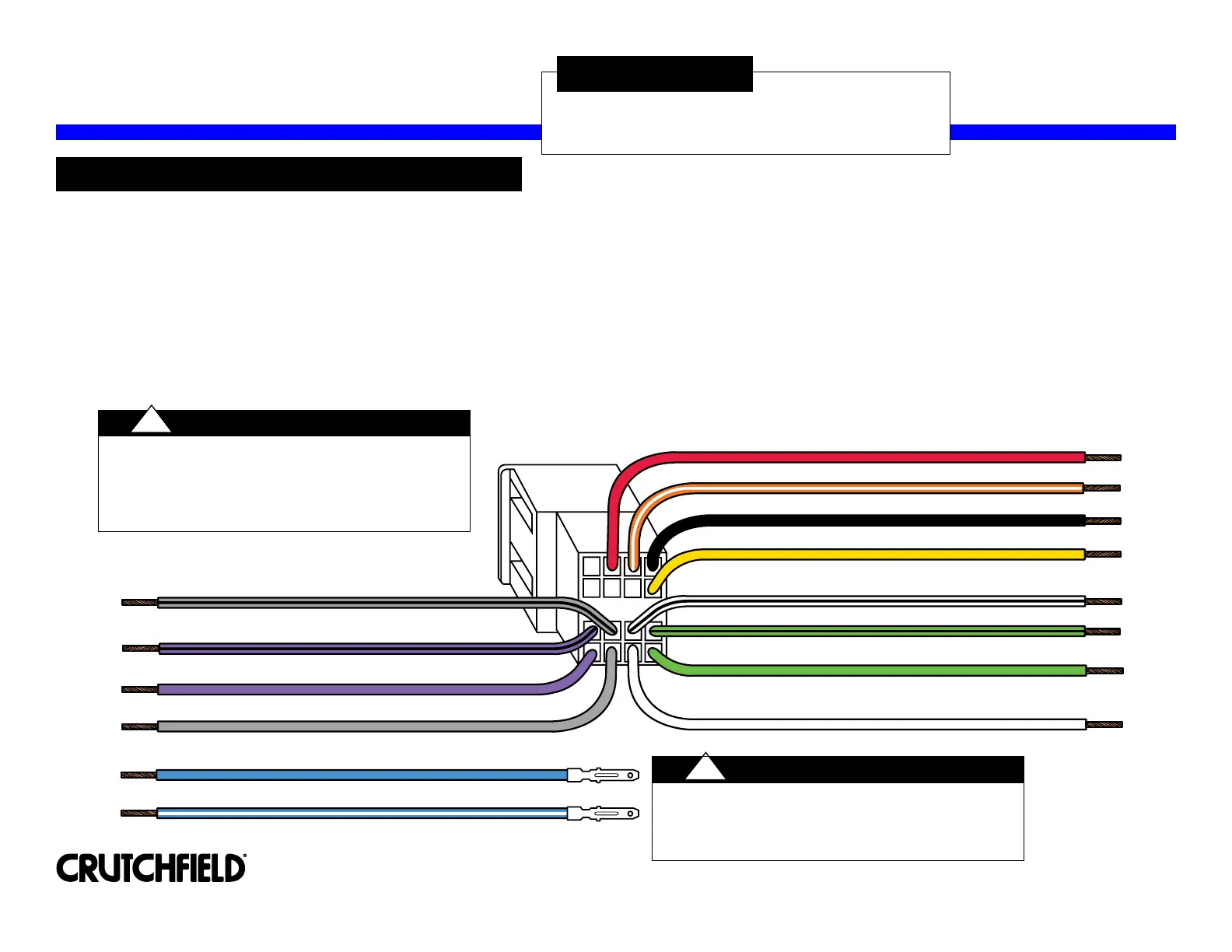

White - Left Front Speaker Positive

Violet/Black - Right Rear Speaker Negative

Red - 12 Volts Switched Power (most vehicles - see pages 2 & 3 for exceptions)

Violet - Right Rear Speaker Positive

Green - Left Rear Speaker Positive

Yellow - 12 Volts Constant Power (most vehicles - see pages 2 & 3 for exceptions)

Gray - Right Front Speaker Positive

Gray/Black - Right Front Speaker Negative

Green/Black - Left Rear Speaker Negative

White/Black - Left Front Speaker Negative

Orange/White - Illumination

Black - Chassis Ground

NOTE

If your vehicle isn't listed on pages 2 & 3, use the

functions listed here. The function of the Red and

Yellow wires is reversed in some vehicle applications.

In others, the Yellow wire is not used. See the charts

on pages 2 & 3 to verify your vehicle application.

Blue - Power Antenna

Blue/White - Amplifier Turn-On

IMPORTANT

Before starting, compare items on your invoice with items

received. Thoroughly check packing materials. If an item

is missing, please call Crutchfield at 1-888-955-6000.

See page 4 for pin locations and connections to

be made with the Blue and Blue/White wires.

If your vehicle is not listed on page 4, these wires will

not be used.

NOTE

'96-'97 Audi A6

'04-'07 Chrysler Crossfire

'03-'06 Dodge Sprinter

'03-'04 Ford Focus

'01-'06 Freightliner Sprinter

'17-'18 Freightliner Sprinter (w/o factory radio )

'99-'04 Land Rover Discovery

'02-'03 Land Rover Freelander

'95-'02 Land Rover Range Rover

'05-'06 Lotus Elise

RED & YELLOW WIRES

'94-'00 Mercedes C Class

'99-'03 Mercedes CLK Class

'94-'98 Mercedes E Class

'98-'05 Mercedes ML Class

'94-'98 Mercedes SL Class

'17-'18 Mercedes Sprinter (w/o factory radio)

'99-'02 Porsche 911

'03-'04 Porsche 911 (w/o Bose)

'97-'04 Porsche Boxster

'10-'15 Smart ForTwo

Page 2

120 70-1784

STEP 1 -- MATCH & CONNECT WIRES (continued)

The and Red Yellow wires must be reversed when this wiring adaptor is used in the vehicles listed below:

Yellow Red connects to . 12V switched power connects to . Return to page 1 for all other connections.12V constant power

Red is used as 12 Volts Constant

power if vehicle is listed above.

Yellow is used as 12 Volts Switched

power if vehicle is listed ablve.

Receiver Wiring Adaptor

IMPORTANT

If your vehicle is not listed above, see the list

on the next page for vehicles that do not use

the Yellow wire.
