Side 1/3

Red - 12 Volts Switched Power

Yellow - 12 Volts Constant Power

Orange/White - Illumination

Gray - Right Front Speaker Positive

White - Left Front Speaker Positive

Green - Left Rear Speaker Positive

Violet - Right Rear Speaker Positive

Gray/Black - Right Front Speaker Negative

White/Black - Left Front Speaker Negative

Green/Black - Left Rear Speaker Negative

Violet/Black - Right Rear Speaker Negative

Receiver Wiring Adaptor

120 70-1785

Revision 05/12/20

*120701785*

IMPORTANT

Before starting, compare items on your invoice with items

received. Thoroughly check packing materials. If an item

is missing, please call Crutchfield at 1-888-955-6000.

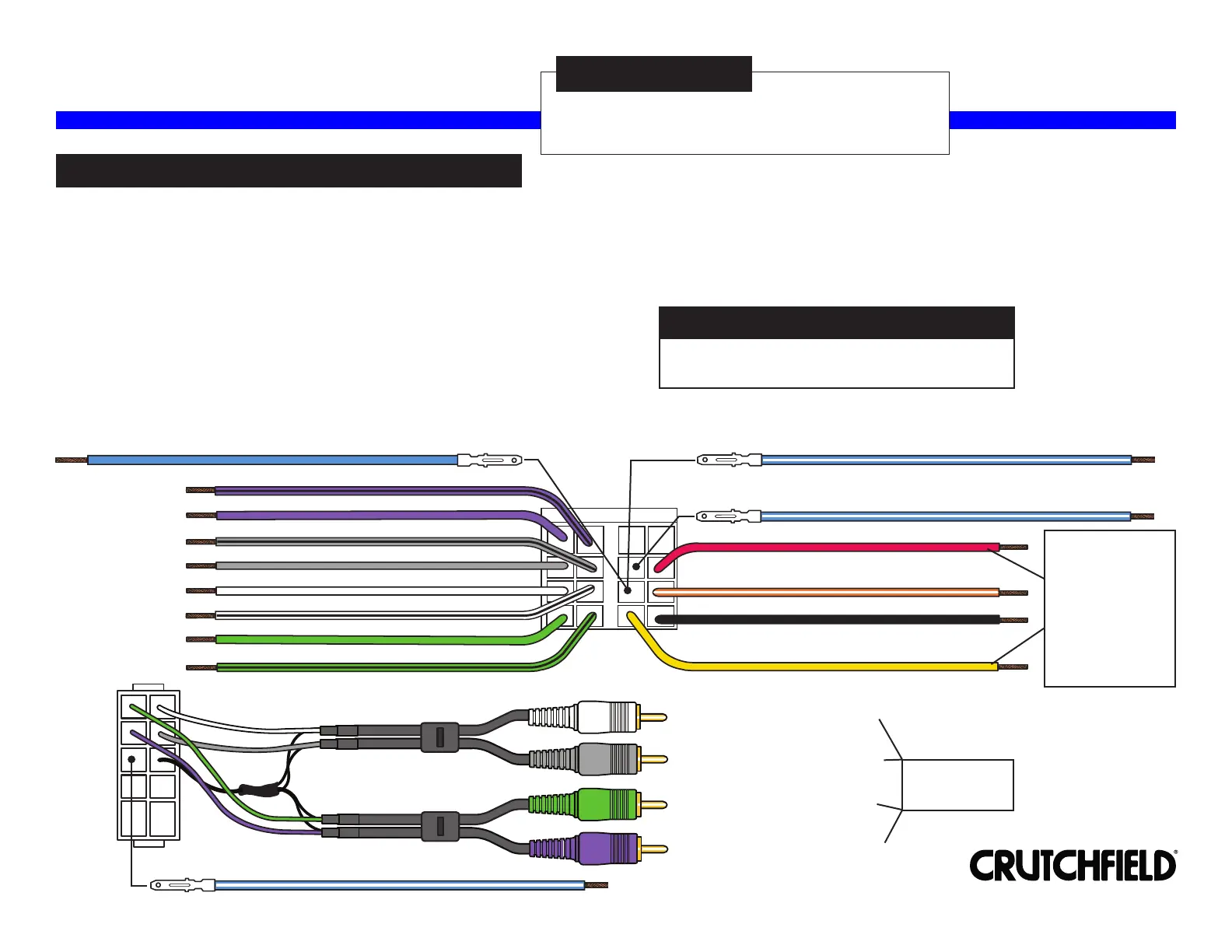

STEP 1 -- MATCH & CONNECT WIRES

Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your

new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.

Individually tape off any unused wires.

Make final wiring connections following instructions on page 3.

Please see the vehicle application chart on

page 2 before making ANY wiring connections.

READ FIRST

Black - Chassis Ground

White - Left Front Channel

Gray - Right Front Channel

Green - Left Rear Channel

Violet - Right Rear Channel

Blue - Porsche Antenna Turn-On

Blue - Audi (not used)

Blue/White - Audi Amplifier Turn-On

Blue/White - Porsche Amplifier Turn-On

Blue/White - Volkswagen Amplifier Turn-On

Blue - Volkswagen Antenna Turn-On

Functions of the Red

and Yellow wires

are reversed in

Porsche vehicles.

Some vehicles don't

have 12V Switched

Power. See the note

on page 2 for more

details.

Connect to RCA

preamp outputs

of new receiver.

Receiver Wiring Adaptor

120 70-1785

STEP 1 -- MATCH & CONNECT WIRES (continued)

1988-'89 Volkswagen Golf, GTI and Jetta

Connections:

 White, White/Black, Gray and Gray/Black wires to the Front speaker wires of the receiver.

 Green, Green/Black, Violet and Violet/Black wires to the Rear speaker wires of the receiver.

 White and Gray RCAs to the Front RCA outputs of the receiver.

 The Green and Violet RCAs are not used.

1988-'92 Audi 80

1988-'95 Audi 90

1989-'94 Audi 100 w/o Bose

1989-'94 Audi 200 w/o Bose

Connections:

 White, White/Black, Gray and Gray/Black wires to the Front speaker wires of the receiver.

 Green and Violet RCAs to the Rear RCA outputs of the receiver.

 Green, Green/Black, Violet and Violet/Black wires are not used. Tape them off individually with electrical tape.

 White and Gray RCAs are not used.

1990-'94 Audi V8 Quattro

1989-'94 Audi 100 with Bose

1989-'94 Audi 200 with Bose

Connections:

 White and Gray RCAs to the Front RCA outputs of the receiver.

 Green and Violet RCAs to the Rear RCA outputs of the receiver.

 None of the wires labeled for speakers will be used. Tape them off individually with electrical tape.

1990-'93 Volkswagen Cabriolet and Corrado

1990-'92 Volkswagen Golf, GTI, Jetta and Passat

1993-'95 Porsche 911

Vehicle Applications

Page 2

Some vehicles don't have 12 Volts Switched

Power in the vehicle. The installer will need

to connect the receiver's switched power

lead to a 12V switched power source in the

fuse box.

List of Vehicles without 12V switched power:

1990 and older Volkswagen Golf, GTI

Early 1992 and older Volkswagen Jetta

1990 Volkswagen Passat

1991 and older Audi 80, 90, 100, 200

All Audi V8

NOTE:
