IMPORTANT
The function of the RED and YELLOW wires is
reversed for the vehicles listed below. Yellow
connects to Ignition and Red connects to 12V
Constant.
1997-'02 Porsche Boxster
1999-'01 Porsche 911
!
Receiver Wiring Adaptor
120 70-1787
Revision 08/11/14
*White - Left Front Speaker Positive
***Red - 12 Volts Switched Power
***Yellow - 12 Volts Constant Power
*Gray - Right Front Speaker Positive
*Gray/Black - Right Front Speaker Negative
***Orange - Illumination
*White/Black - Left Front Speaker Negative
***Black - Chassis Ground
***Blue - Power Antenna

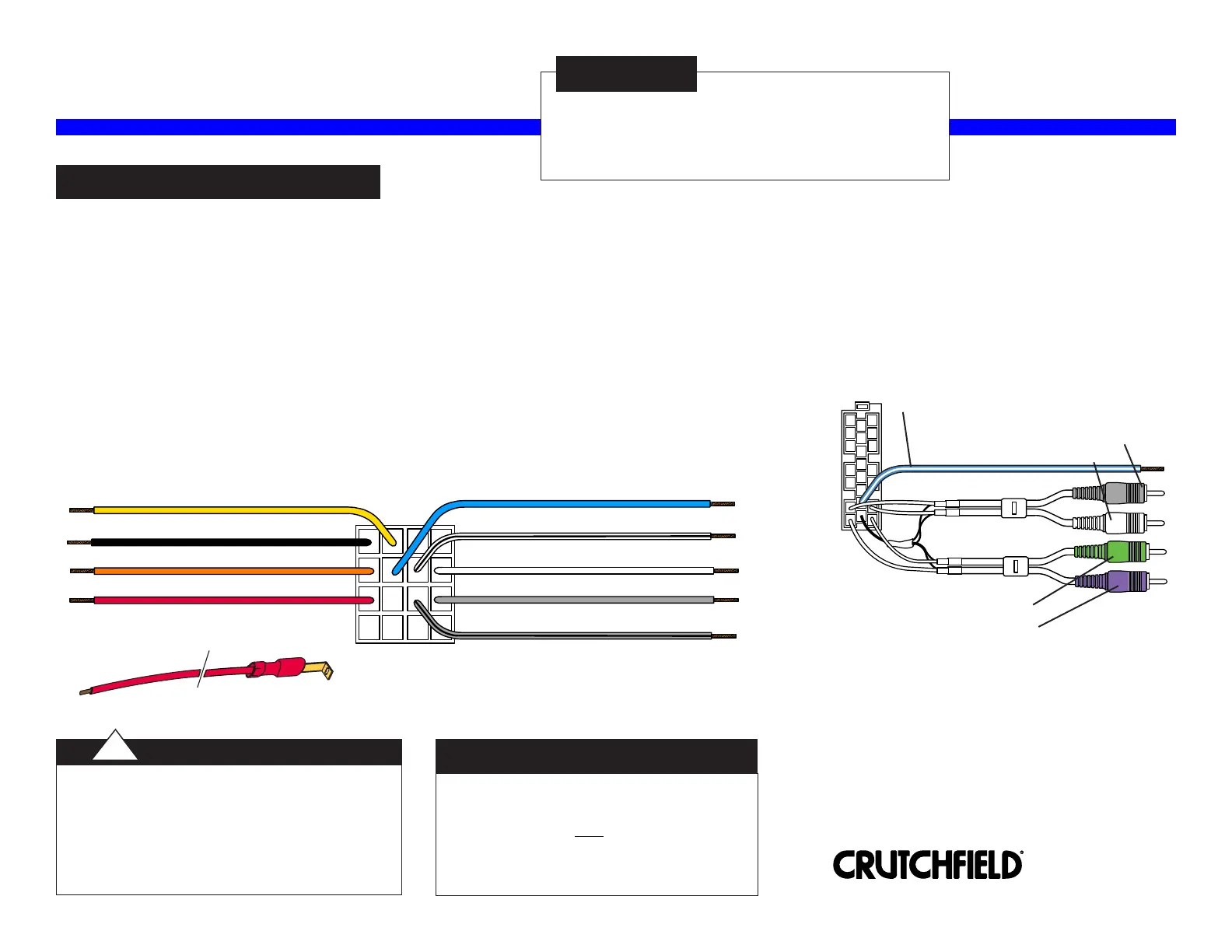

STEP 1 -- CONNECT WIRES
*120701787*
IMPORTANT
Before starting, compare items on your invoice with items
received. Thoroughly check packing materials. If an item
is missing, please call Crutchfield at 1-888-955-6000.
***Blue/White - Amplifier Turn-On
**White - Left Front AMP Input
***Violet - Right Rear AMP Input
***Green - Left Rear AMP Input
**Gray - Right Front AMP Input
WIRE APPLICATION GUIDE
* Use in vehicles without factory-equipped
Premium or Bose system.
** Use in vehicles with factory Premium or
Bose system.
*** Use in vehicles with either system.
NOTE: The long red wire included applies to certain vehicles that require a switched power source at the fuse panel. See page 2 for specific applications.
Long Red Wire - See page 2 for applications.
*Asterisks denote referral to Wire Application Guide below.
Copyright 2014 Crutchfield Corporation
Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver).
The wire colors of your new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function,
disregarding color.
If your receiver does not have a Dimmer or Illumination wire, tape off the Orange wire.
Connect the Black wire to the Ground wire of the new receiver.
Individually tape off any unused wires.
Make final wiring connections following instructions on page 3.
A.
B.
C.
D.
E.
NOTE: These instructions pertain to the use of the additional long red wire in vehicles requiring
a 12 Volt switched power source at the vehicle's fuse panel.
All other wires are connected as instructed on page 1 unless otherwise specified.
*White - Left Front Speaker Positive
***Red - 12 Volts Switched Power
***Yellow - 12 Volts Constant Power
*Gray - Right Front Speaker Positive
*Gray/Black - Right Front Speaker Negative
***Orange - Illumination
*White/Black - Left Front Speaker Negative
***Black - Chassis Ground
***Blue - Power Antenna
***Blue/White - Amplifier Turn-On
**White - Left Front AMP Input
***Violet - Right Rear AMP Input
***Green - Left Rear AMP Input
**Gray - Right Front AMP Input
Receiver Wiring Adaptor
120 70-1787
Red - 12 Volts Switched Power
Fuse Clip
Using the Long Red Wire (if applicable):
Run the long wire from the receiver to the fuse panel. Make sure wire is safely
secured away from moving parts. Locate the correct fuse referring to the wire
application guide on this page. Remove the fuse. Use a test meter to
determine the "power" side of the fuse slot. Connect the fuse clip to one
prong of the fuse. Reinstall the fuse so that the clip/prong is on the opposite
side that connects to power. It is important that the clip is on the cor-NOTE:
rect side in order for the line to be protected by the fuse.
LONG RED WIRE APPLICATION GUIDE
2006-'07 Audi A3 #42 - 15 amp Left Side Dash End Cap
2002-'04 Audi A4 #36 - 30 amp Left Side Dash End Cap
2002-'04 Audi A6 #24 - 25 amp Left Side Dash End Cap
2002-'05 Audi AllRoad #24 - 25 amp Left Side Dash End Cap
2004 Audi S4 #36 - 30 amp Left Side Dash End Cap
2002-'04 Audi TT #24 - 20 amp Left Side Dash End Cap
VEHICLE FUSE LOCATION
Page 2
Clip placed on fuse
*Asterisks denote referral to Wire Application Guide on page 1.
Copyright 2014 Crutchfield Corporation
