Receiver Wiring Adaptor

120 70-1860

Revision 03/23/16

STEP 1 -- MATCH & CONNECT WIRES

*120701860*

IMPORTANT

Before starting, compare items on your invoice with items

received. Thoroughly check packing materials. If an item

is missing, please call Crutchfield at 1-888-955-6000.

Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your

new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.

Your receiver illumination wire could be Orange or Orange/White. As with other wires, match this wire to illumination wire in this harness by

function, not by color. If your receiver does not have an illumination wire, tape off the illumination wire.

Individually tape off any unused wires.

Make final wiring connections following instructions on the next page.

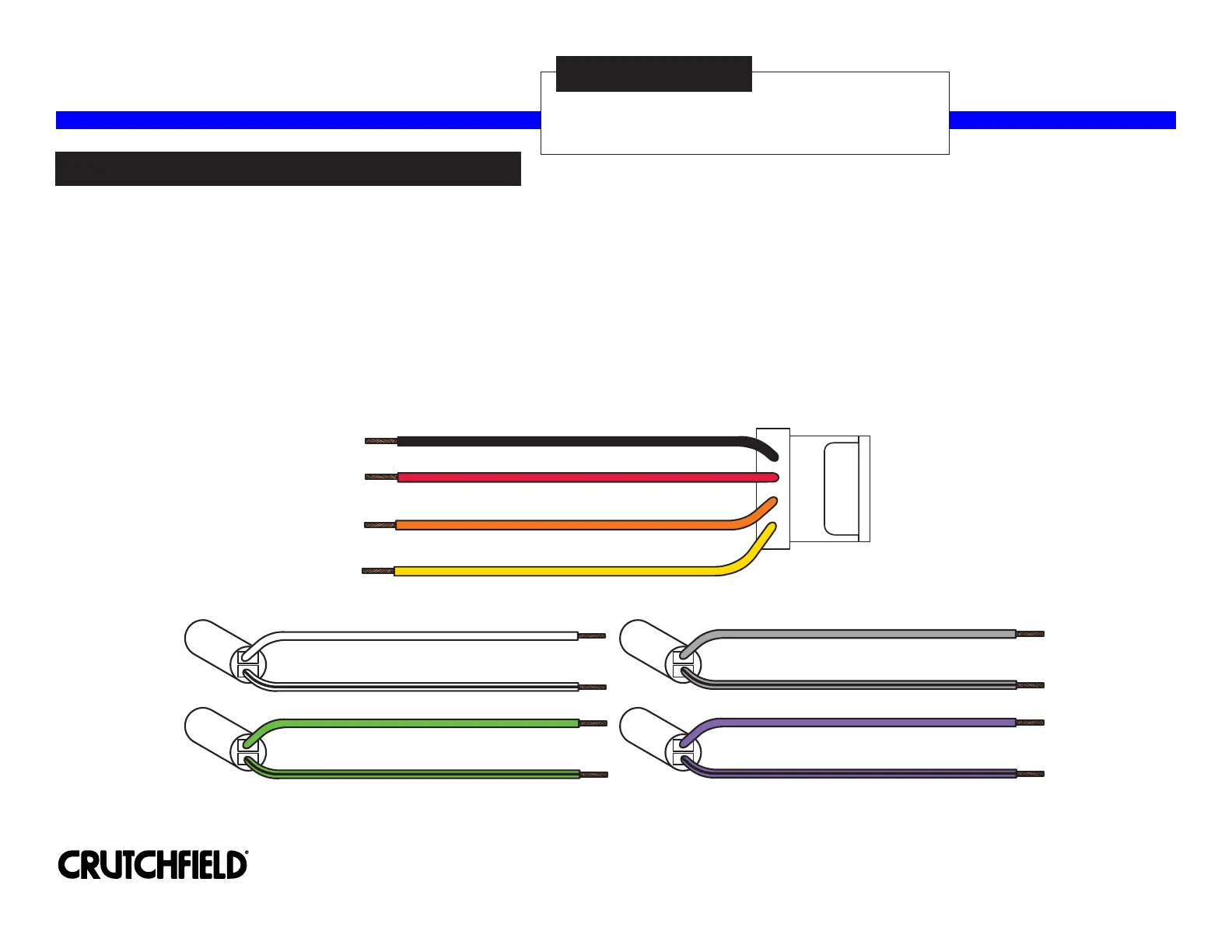

Orange - Illumination

Yellow - 12 Volts Constant Power

Red - 12 Volts Switched Power

White - Left Front Speaker Positive

Violet - Right Rear Speaker PositiveGreen - Left Rear Speaker Positive

Gray - Right Front Speaker Positive

Gray/Black - Right Front Speaker Negative

White/Black - Left Front Speaker Negative

Black - Chassis Ground

Violet/Black - Right Rear Speaker Negative

Green/Black - Left Rear Speaker Negative

Receiver Wiring Adaptor Connections

120 70-1860

Page 2

STEP 2 -- CONTINUED

A. Strip wires back 1/2”.

B. Twist wires together and

insert in crimp cap.

C. Squeeze middle of cap

for tight connection.

STEP 3 -- APPLICATION

When ready to install the receiver, plug

the Wiring Adaptor from the new receiver

or receiver assembly into the factory

radio harness(es) in the vehicle dash.

D. Complete crimp connections

for all necessary wires.

E. Be sure to wrap any wires from

the Wiring Adaptor that are

not necessary (wires with no

match from the new receiver)

with electrical tape.

STEP 2 -- CRIMP CONNECTIONS

Tools & Parts

Required

Wire Stripper/Crimp Tool Crimp Caps

Unused Wire (tape over bare wires)

Receiver Wiring Adaptor

Generic Illustration
