Side 1/3
Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your
new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
Your receiver illumination wire could be Orange or Orange/White. As with other wires, match this wire to the illumination wire in this harness
by function, not by color. If your receiver does not have an illumination wire, tape off the illumination wire.
Individually tape off any unused wires.
Make final wiring connections following instructions on page 3.
Receiver Wiring Adaptor
120 70-5000
Revision 02/13/18
STEP 1 -- MATCH & CONNECT WIRES
*120705000*
IMPORTANT
Before starting, compare items on your invoice with items
received. Thoroughly check packing materials. If an item
is missing, please call Crutchfield at 1-888-955-6000.
Copyright 2018 Crutchfield Corporation

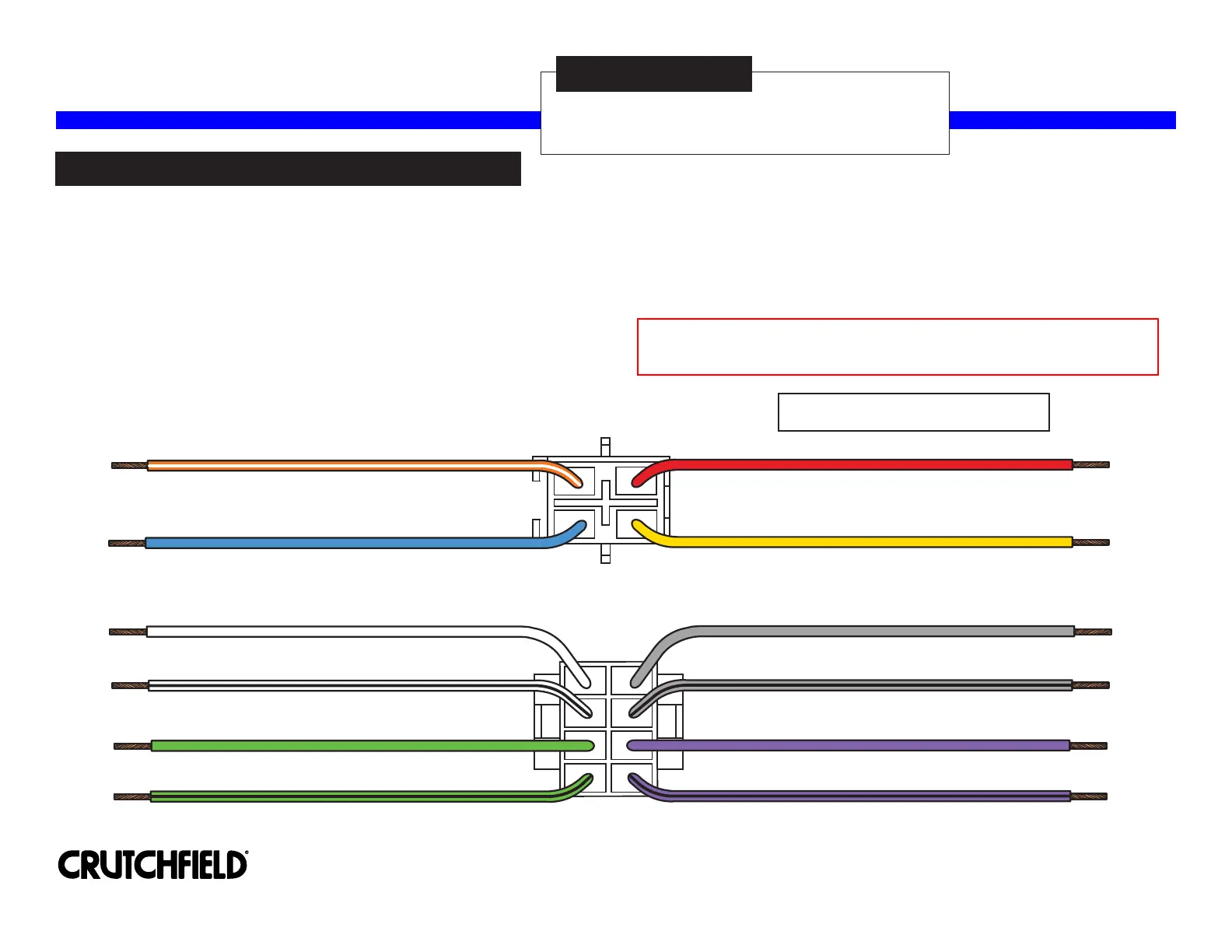

Power Harness - Set #1
(see the next page for Harness Set #2)
Yellow - 12 Volts Constant Power
Note: If your vehicle does not have a constant 12V connection, it will be
necessary to run a fused wire to the battery or appropriate fuse in the vehicle.
Red - 12 Volts Switched Power
White - Left Front Speaker Positive
Blue - Power Antenna
Violet - Right Rear Speaker PositiveGreen - Left Rear Speaker Positive
Gray - Right Front Speaker Positive
Gray/Black - Right Front Speaker NegativeWhite/Black - Left Front Speaker Negative
Violet/Black - Right Rear Speaker NegativeGreen/Black - Left Rear Speaker Negative
Orange/White - Illumination
A.
B.
C.
D.
Speaker Harness - Set #1
(see the next page for Harness Set #2)
Note: This wiring harness contains two sets of wiring adaptors.
Please use the set that matches the harnesses in your vehicle.
Note: Connect the receiver ground to the
vehicle chassis for harness set 1 applications.
Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your
new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
Your receiver illumination wire could be Orange or Orange/White. As with other wires, match this wire to the illumination wire in this harness
by function, not by color. If your receiver does not have an illumination wire, tape off the illumination wire.
Individually tape off any unused wires.
Make final wiring connections following instructions on page 3.
Receiver Wiring Adaptor
120 70-5000
Copyright 2018 Crutchfield Corporation
STEP 1 -- MATCH & CONNECT WIRES (CONTINUED)
A.
B.
C.
D.
Red - 12 Volts Switched Power
Blue - Power Antenna
Orange/White - Dimmer (Not Used - Tape Off)
Orange - Illumination
Black - Chassis Ground
Blue/White - Amplifier Turn-On
White - Left Front Speaker Positive
Green - Left Rear Speaker Positive
White/Black - Left Front Speaker Negative
Green/Black - Left Rear Speaker Negative
Violet/Black - Right Rear Speaker Negative
Violet - Right Rear Speaker Positive
Gray - Right Front Speaker Positive
Gray/Black - Right Front Speaker Negative
Orange/Black - (not used - tape off)
Page 2
Power Harness - Set #2 Speaker Harness - Set #2
Yellow - 12 Volts Constant Power
Note: If your vehicle does not have a constant 12V connection, it will be
necessary to run a fused wire to the battery or appropriate fuse in the vehicle.
Note: If your vehicle does not have a ground connection,
connect the ground wire from the new receiver to chassis ground.
