Side 1/3

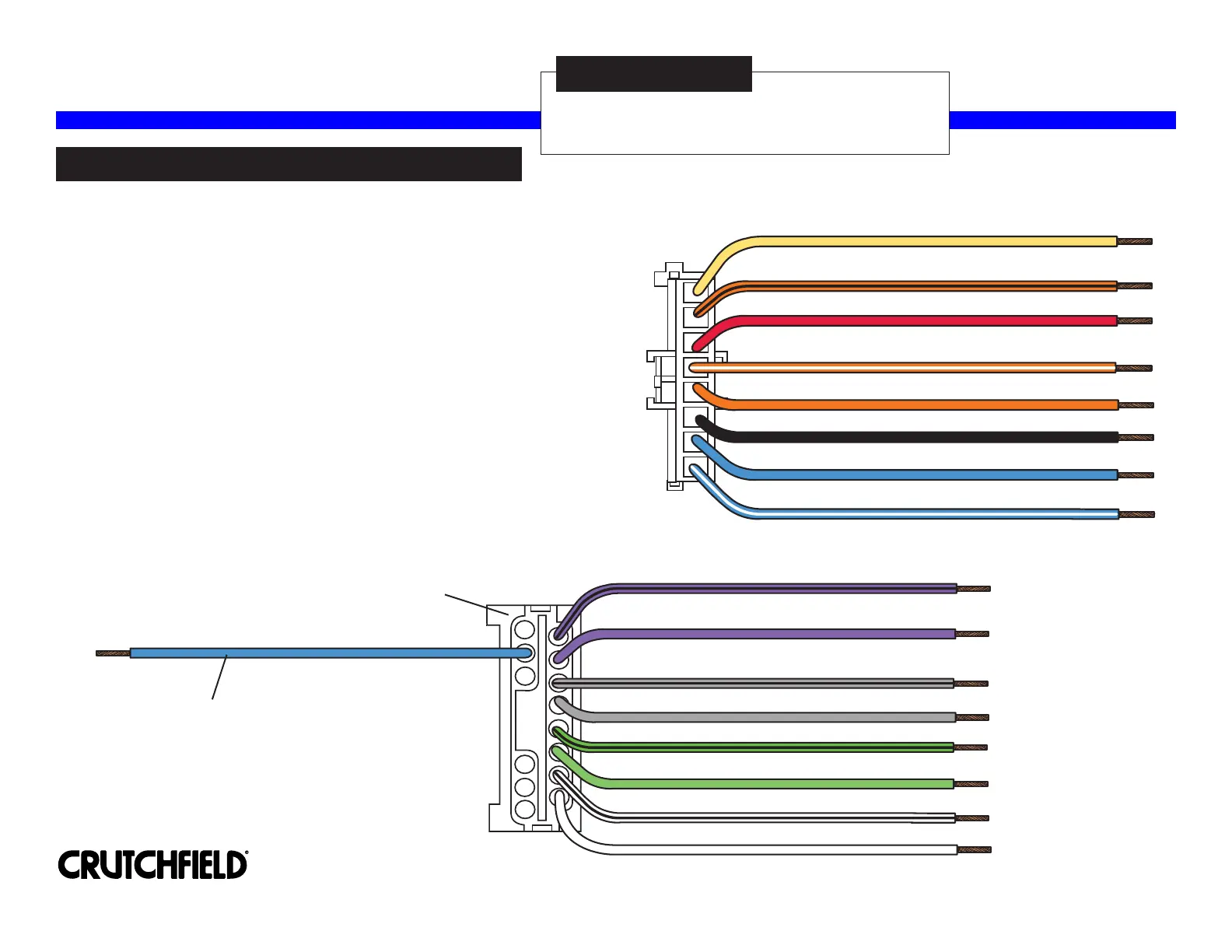

Orange - Illumination

Yellow - 12 Volts Constant Power

Red - 12 Volts Switched Power

Black - Chassis Ground

Orange/White - Not Used (tape Off)

Orange/Black - Not Used (tape off)

Blue - Power Antenna

Blue/White - Not Used (tape off)

Receiver Wiring Adaptor

120 70-5008

Revision 02/15/18

STEP 1 -- MATCH & CONNECT WIRES

*120705008*

IMPORTANT

Before starting, compare items on your invoice with items

received. Thoroughly check packing materials. If an item

is missing, please call Crutchfield at 1-888-955-6000.

Match wires below to the matching function of each wire on

your receiver (refer to instructions supplied with receiver).

The wire colors of your new receiver may, or may not,

match the wire colors of the adaptor. Match adaptor and

receiver wires by function, disregarding color.

Your receiver illumination wire could be Orange or

Orange/White. As with other wires, match this wire to the

illumination wire in this harness by function, not by color.

If your receiver does not have an illumination wire, tape off

the illumination wire.

Individually tape off any unused wires.

Route harnesses, bypass amplifier and make final wiring

connections following instructions on pages 2 & 3.

White - Left Front Speaker Positive

Blue - Power Antenna

Violet - Right Rear Speaker Positive

Green - Left Rear Speaker Positive

Gray - Right Front Speaker Positive

Gray/Black - Right Front Speaker Negative

White/Black - Left Front Speaker Negative

Violet/Black - Right Rear Speaker Negative

Green/Black - Left Rear Speaker Negative

This wire is only used in 1995-'97 Ford Explorers and

Mercury Mountaineers that are factory-equipped

with the JBL system. It connects to the power

antenna lead on the new receiver. All other vehicles

use the Blue Wire on the Power harness.

Speaker Harness

(actual length of wires is much longer than shown)

Power Harness

STEP 2 -- HARNESS ROUTING

Receiver Adaptor/Amplifier Bypass

A. Run the speaker harness wires

from the receiver to the factory

amplifier location. (Refer to the

Crutchfield MasterSheet for

your particular vehicle to locate

and access the amplifier).

B. Disconnect both factory

harnesses from the amplifier.

C. Plug the speaker harness into

the factory harness disconnected

from the amplifier output.

D. Tape off and secure the unused

harness.

120 70-5008

Factory Amplifier

Factory Harness

120 70-5008

Speaker Harness

Receiver Rear

120 70-5008

Power Harness

Factory Harness

Page 2

Antenna Lead

Continued on the next page.
