Receiver Wiring Adaptor

120 70-5519

Revision 03/27/14

*120705519*

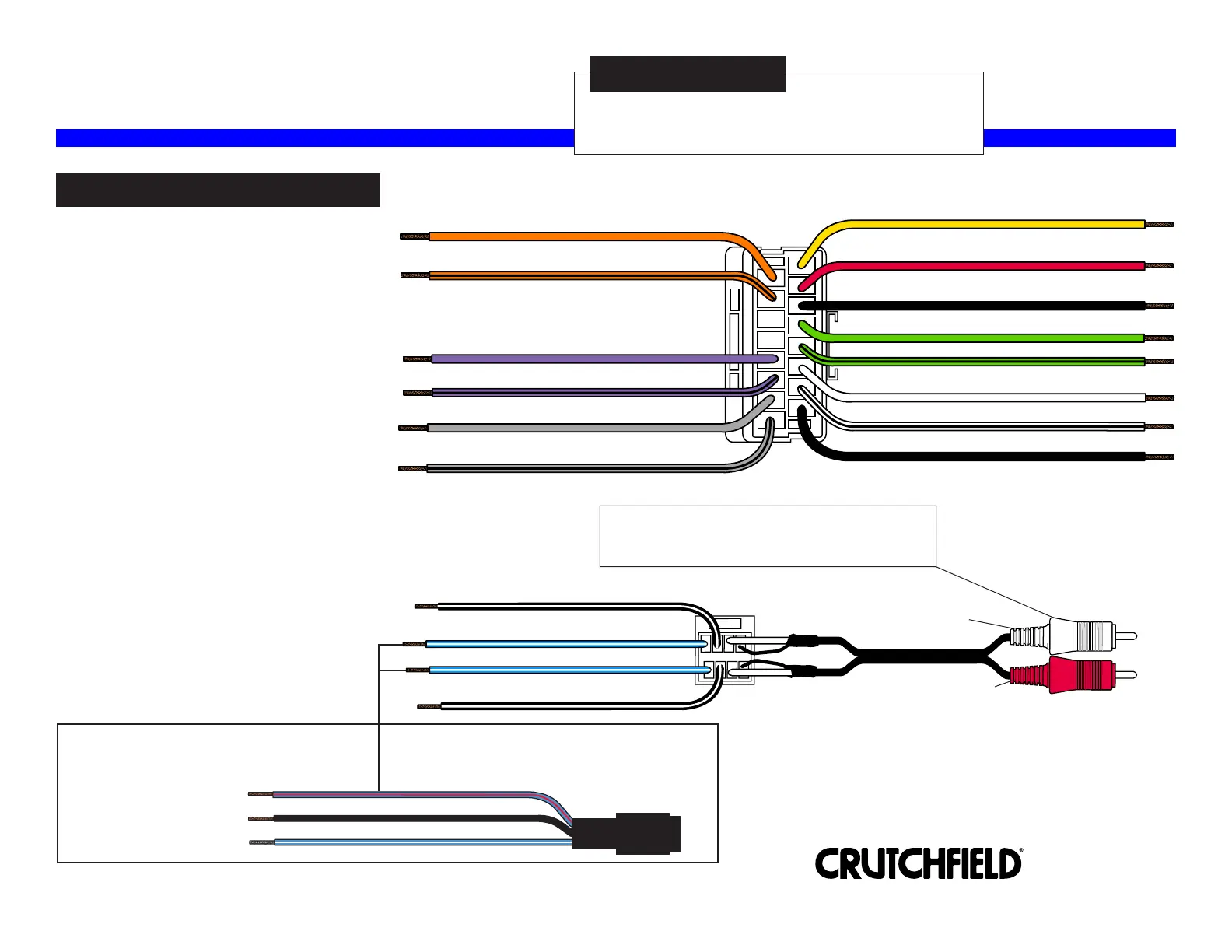

STEP 1 -- CONNECT WIRES

Connect wires below to the matching

function of each wire on your receiver

(refer to instructions supplied with

receiver).

The wire colors of your new receiver may,

or may not, match the wire colors of the

adaptor. Match adaptor and receiver

wires by function, disregarding color.

If your receiver does not have a Dimmer or

Illumination wire, tape off the Orange wire.

Connect all Black and Black/White wires

together by soldering and taping or by

using a large crimp cap.

Individually tape off any unused wires.

Make final wiring connections following

instructions on the next page.

White - Left Front Speaker Positive

Violet/Black - Right Rear Speaker Negative

Red - 12 Volts Switched Power

Violet - Right Rear Speaker Positive

Green - Left Rear Speaker Positive

Yellow - 12 Volts Constant Power

Gray - Right Front Speaker Positive

Gray/Black - Right Front Speaker Negative

Green/Black - Left Rear Speaker Negative

Orange - Illumination

White/Black - Left Front Speaker Negative

Black - Chassis Ground

Black - Amplifier Ground

Orange/Black - (not used, tape off)

Blue/White - Amplifier Turn-on

Black/White - Amplifier Ground

Subwoofer Input

Blue/White - Amplifier Turn-on

Black/White - Amplifier Ground

For best results, the White RCA plug should be

connected to the subwoofer preamp output on

the new receiver.

RED

WHITE

Center Channel Input

(Except for Mustang -

this is also a subwoofer

input for the Mustang)

IMPORTANT

Before starting, compare items on your invoice with items

received. Thoroughly check packing materials. If an item

is missing, please call

Crutchfield at 1-888-955-6000.

Blue/Red - Connects to both Blue/White

Wires on Amp/Sub harness

Black - Chassis Ground

Blue/White - Connects to Blue/White Amp Remote Wire from receiver

120AFDI5V Converter (packaged separately)


