Receiver Wiring Adapter

120 70-5526

Revision 01/14/25

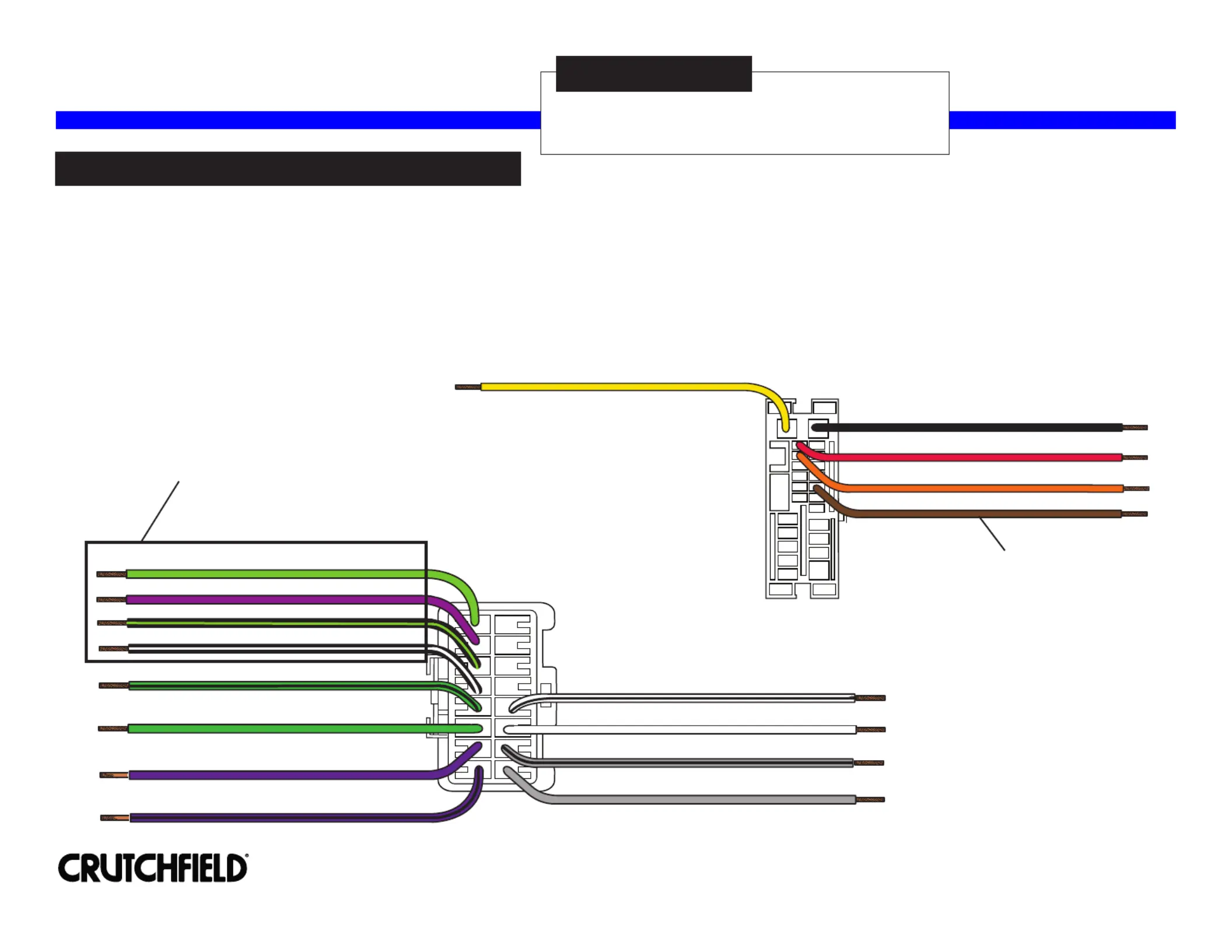

STEP 1 -- MATCH & CONNECT WIRES

*120705526*

IMPORTANT

Before starting, compare items on your invoice with items

received. Thoroughly check packing materials. If an item

is missing, please call Crutchfield at 1-888-955-6000.

Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your

new receiver may, or may not, match the wire colors of the adapter. Match adapter and receiver wires by function, disregarding color.

Individually tape off any unused wires.

Make final wiring connections following instructions on the next page.

Orange - Illumination

Yellow - 12 Volts Constant Power

Red - 12 Volts Switched Power

White - Left Front Speaker Positive

Brown - Steering Wheel Control

Violet - Right Rear Speaker Positive

Green - Left Rear Speaker Positive

Gray - Right Front Speaker Positive

Gray/Black - Right Front Speaker Negative

White/Black - Left Front Speaker Negative

Black - Chassis Ground

Violet/Black - Right Rear Speaker Negative

Green/Black - Left Rear Speaker Negative

This harness connects

at the receiver location.

This harness connects

to the green plug at the

factory amplifier.

Connect to the Steering

Wheel Control Interface

signal wire (if applicable).

The subwoofer wires are labeled on the

harness so as to not be confused with the

other speaker wires. A separate amplifier

is recommended to power the subwoofer.

Light Green- Subwoofer Coil 1 Positive

Violet- Subwoofer Coil 1 Negative

Black/Light Green- Subwoofer Coil 2 Positive

Black/White - Subwoofer Coil 2 Negative

120 70-5526

Receiver Wiring Adapter Connections

Page 2

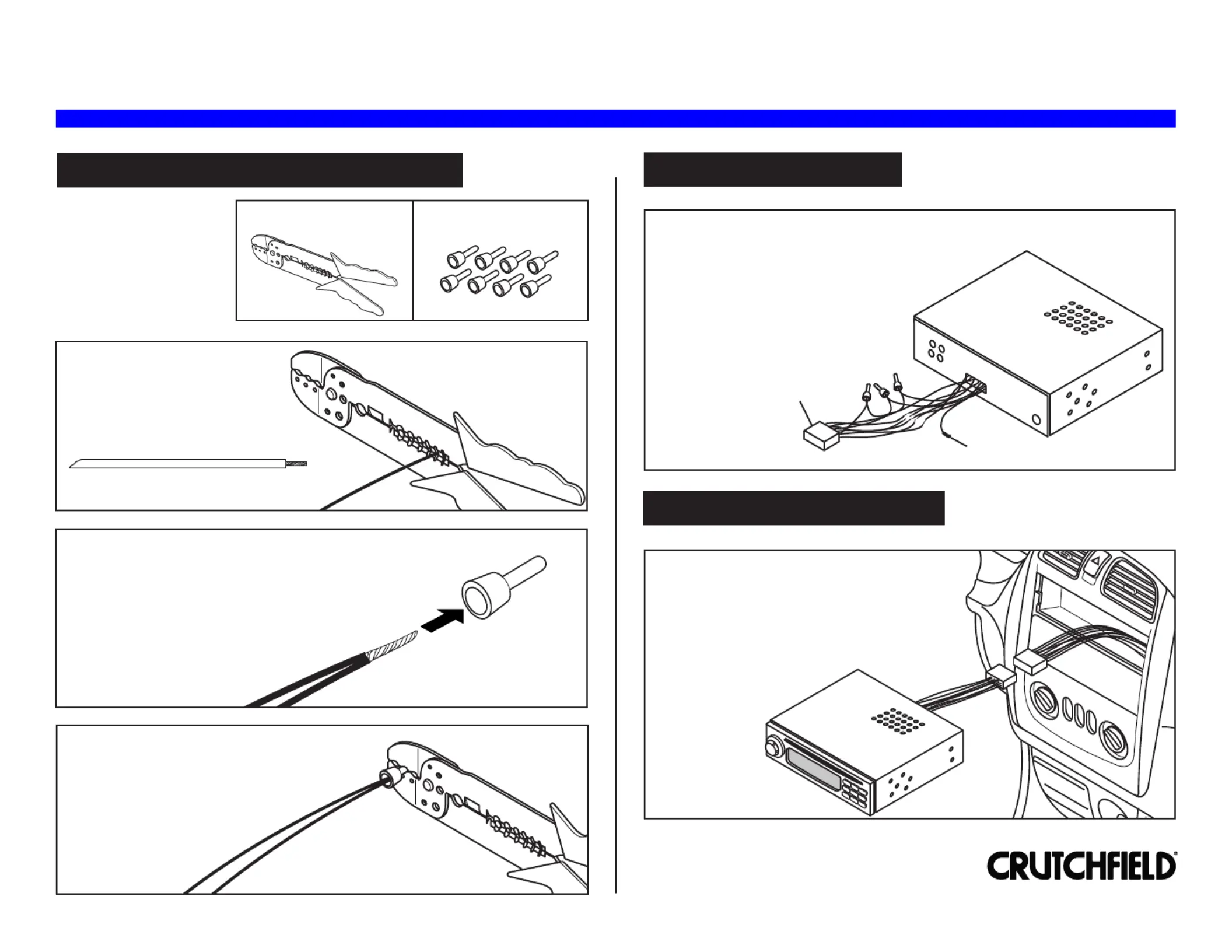

STEP 2 -- CONTINUED

A. Strip wires back 1/2”.

B. Twist wires together and

insert in crimp cap.

C. Squeeze middle of cap

for tight connection.

STEP 3 -- APPLICATION

When ready to install the receiver, plug

the Wiring Adapter from the new receiver

or receiver assembly into the factory

radio harness(es) in the vehicle dash.

D. Complete crimp connections

for all necessary wires.

E. Be sure to wrap any wires from

the Wiring Adapter that are

not necessary (wires with no

match from the new receiver)

with electrical tape.

STEP 2 -- CRIMP CONNECTIONS

Tools & Parts

Required4

Wire Stripper/Crimp Tool Crimp Caps

Unused Wire (tape over bare wires)

Receiver Wiring Adapter

Generic Illustration
