In order to retain the factory AUX input, the new

receiver must have an AUX input connection. An

adaptor may be needed with receivers that have a

3.5mm AUX input.

Receiver Wiring Adaptor

120 70-7863

Revision 11/10/16

STEP 1 -- MATCH & CONNECT WIRES

*120707863*

IMPORTANT

Before starting, compare items on your invoice with items

received. Thoroughly check packing materials. If an item

is missing, please call Crutchfield at 1-888-955-6000.

Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your

new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.

Connect the illumination wire from the new receiver to the Orange illumination wire in the wiring adaptor. If the new receiver does not have an

illumination wire, tape off the illumination wire in the wiring adaptor.

Tape off any unused wires.

Make final wiring connections following instructions on the next page.

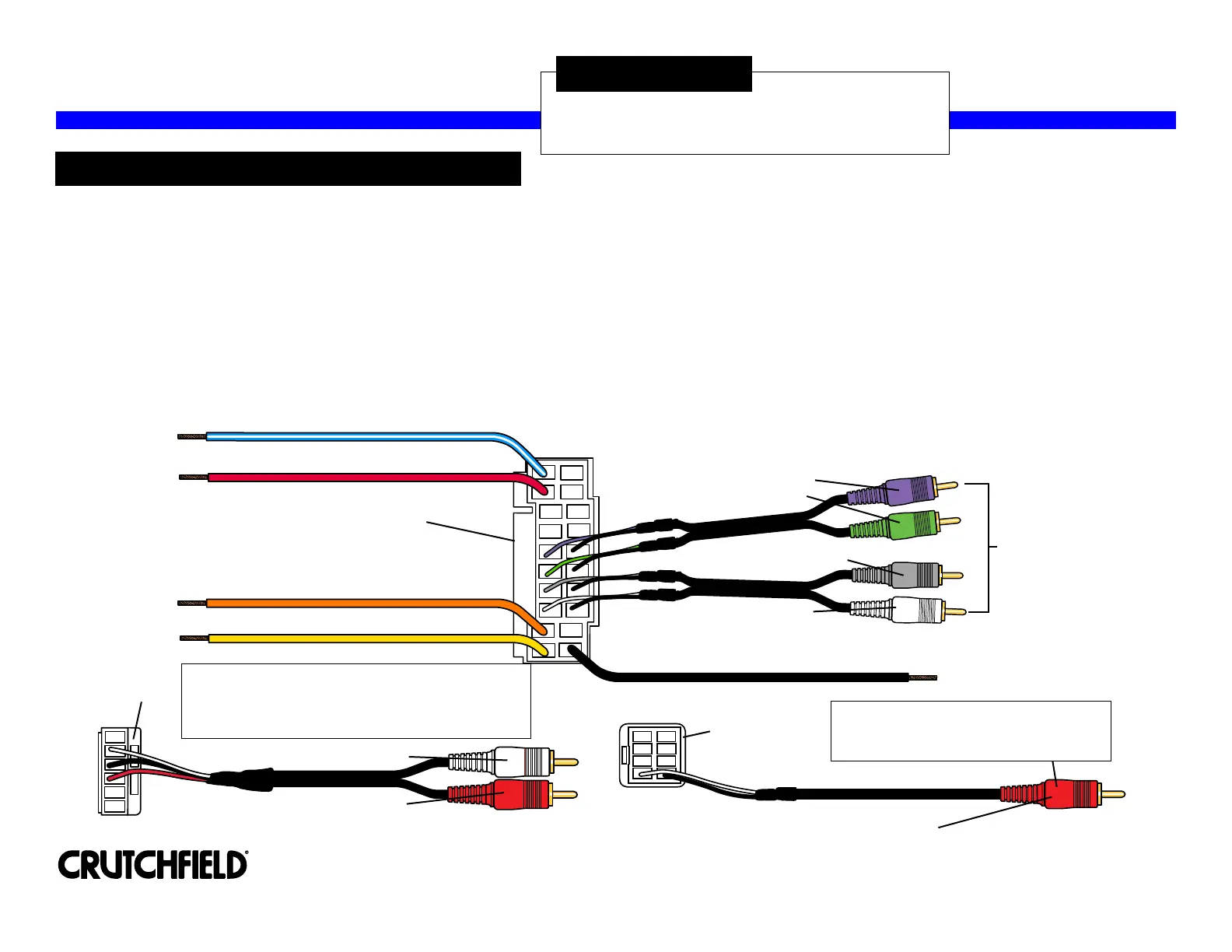

Red - 12 Volts Switched Power

Yellow - 12 Volts Constant Power

Orange - Illumination

Black - Chassis Ground

Blue/White - Power Antenna and Amplifier Remote

(connect to Amp Remote of new receiver)

MAIN HARNESS

AUX INPUT

HARNESS

White - Left Channel

Red - Right Channel

Subwoofer Input

SUBWOOFER

HARNESS

Violet - Right Rear Signal Input

Green - Left Rear Signal Input

White - Left Front Signal Input

Gray - Right Front Signal Input

For best results, this RCA plug should

be connected to the subwoofer preamp

output on the new receiver.

Connect to

RCA outputs

on new receiver.

This plug might be white in some packages.

If so, please disregard. It serves the same

function as indicated.

Receiver Wiring Adaptor Connections

120 70-7863

Page 2

STEP 2 -- CONTINUED

A. Strip wires back 1/2”.

B. Twist wires together and

insert in crimp cap.

C. Squeeze middle of cap

for tight connection.

STEP 3 -- APPLICATION

When ready to install the receiver, plug

the Wiring Adaptor from the new receiver

or receiver assembly into the factory

radio harness(es) in the vehicle dash.

D. Complete crimp connections

for all necessary wires.

E. Be sure to wrap any wires from

the Wiring Adaptor that are

not necessary (wires with no

match from the new receiver)

with electrical tape.

STEP 2 -- CRIMP CONNECTIONS

Tools & Parts

Required

Wire Stripper/Crimp Tool Crimp Caps

Unused Wire (tape over bare wires)

Receiver Wiring Adaptor

Generic Illustration
