Side 1/2

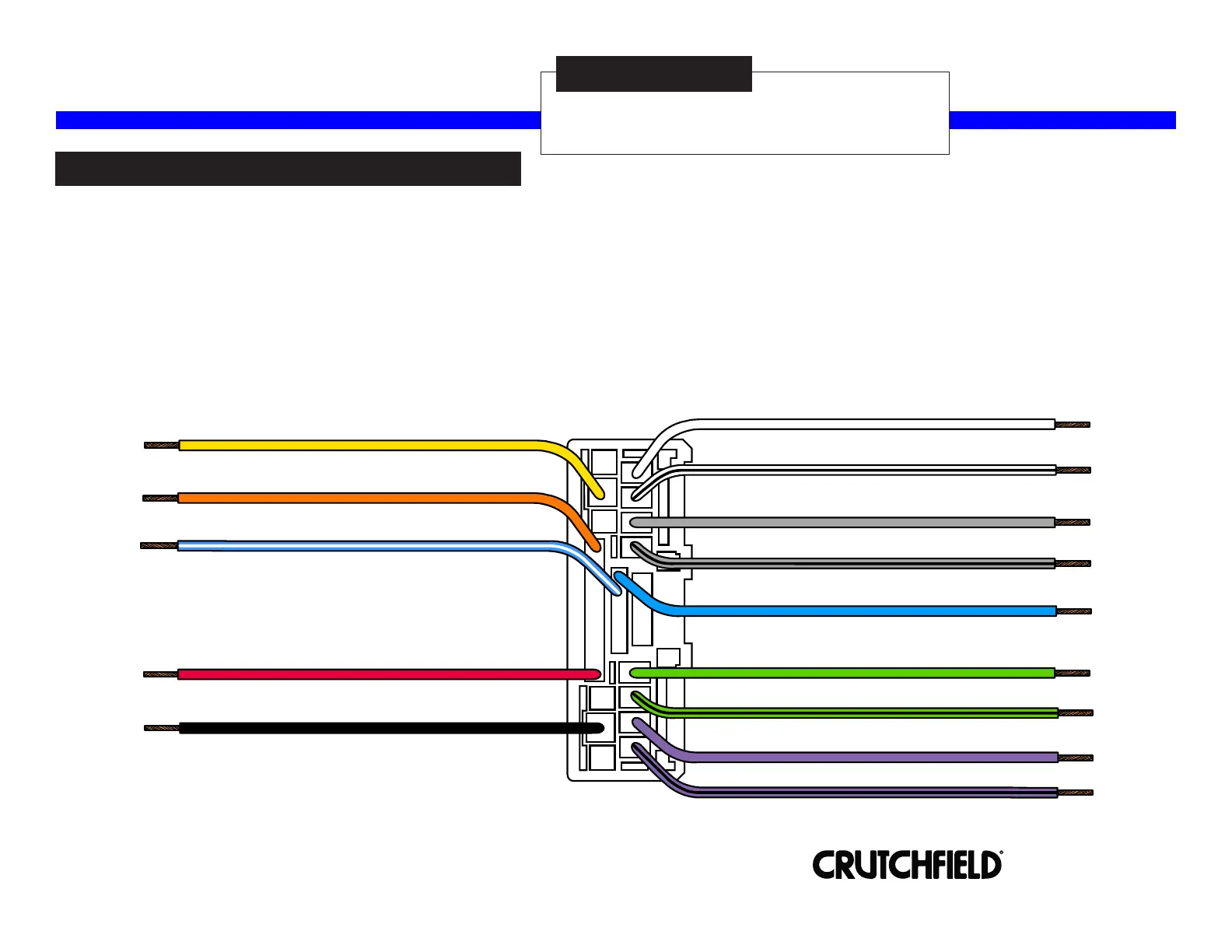

Yellow - 12 Volts Constant Power

Red - 12 Volts Switched Power

Blue - Power Antenna

Orange - Illumination

Black - Chassis Ground

Gray - Right Front Speaker Positive

White - Left Front Speaker Positive

Green - Left Rear Speaker Positive

Violet - Right Rear Speaker Positive

Gray/Black - Right Front Speaker Negative

White/Black - Left Front Speaker Negative

Green/Black - Left Rear Speaker Negative

Violet/Black - Right Rear Speaker Negative

Receiver Wiring Adapter

120 70-7903L

Revision 02/03/23

STEP 1 -- MATCH & CONNECT WIRES

*120707903L*

IMPORTANT

Before starting, compare items on your invoice with items

received. Thoroughly check packing materials. If an item

is missing, please call Crutchfield at 1-888-955-6000.

Blue/White - Amplifier Turn-On

Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your

new receiver may, or may not, match the wire colors of the adapter. Match adapter and receiver wires by function, disregarding color.

Individually tape off any unused wires.

Make final wiring connections following instructions on the next page.

This harness will connect at the tuner location in your vehicle. Refer to your vehicle's MasterSheet for instructions on accessing the tuner

module.

Receiver Wiring Adapter Connections

120 70-7903L

Page 2

STEP 2 -- CONTINUED

A. Strip wires back 1/2”.

B. Twist wires together and

insert in crimp cap.

C. Squeeze middle of cap

for tight connection.

STEP 3 -- APPLICATION

When ready to install the receiver, plug the Wiring Adapter from the

new receiver or receiver assembly into the factory radio harness(es)

at the vehicle's tuner location. Refer to your vehicle's MasterSheet

for information on accessing the tuner location.

D. Complete crimp connections

for all necessary wires.

E. Be sure to wrap any wires from

the Wiring Adapter that are

not necessary (wires with no

match from the new receiver)

with electrical tape.

STEP 2 -- CRIMP CONNECTIONS

Tools & Parts

Required4

Wire Stripper/Crimp Tool Crimp Caps

Unused Wire (tape over bare wires)

Receiver Wiring Adapter

Generic Illustration
