Side 1/3

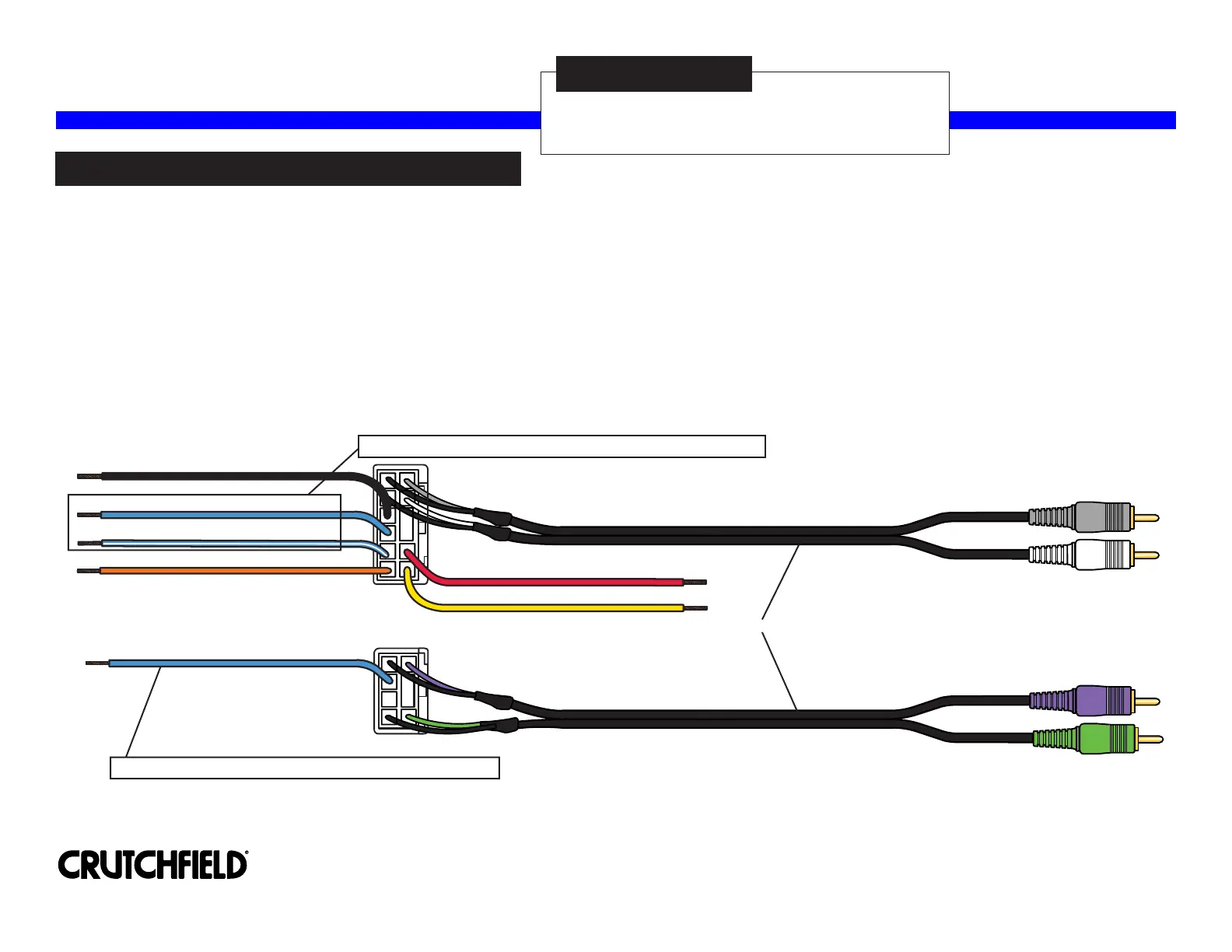

Orange - Illumination

Black - Chassis Ground

Blue - Power Antenna

Red - 12 Volts Switched Power

Yellow - 12 Volts Constant Power

Receiver Wiring Adaptor

120 70-8902

Revision 10/10/17

STEP 1 -- MATCH & CONNECT WIRES

*120708902*

IMPORTANT

Before starting, compare items on your invoice with items

received. Thoroughly check packing materials. If an item

is missing, please call Crutchfield at 1-888-955-6000.

White - Left Front Channel

Green - Left Rear Channel

Gray - Right Front Channel

Violet - Right Rear Channel

(connects to Orange or

Orange/White on receiver)

Blue - Power Antenna

Blue/White - Amplifier Turn-On

These Blue & Blue/White Wires apply to Subaru Forester only.

This Blue Wire applies to Subaru Legacy and Outback only.

Connects to RCA Outputs on Receiver

Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your

new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.

Your receiver illumination wire could be Orange or Orange/White. As with other wires, match this wire to the illumination wire in this harness

by function, not by color. If your receiver does not have an illumination wire, tape off the illumination wire.

Individually tape off any unused wires.

Make final wiring connections following instructions on the next page.

Continue with these instructions to match and connect wires on the next page.

Receiver Wiring Adaptor

120 70-8902

STEP 1 -- (continued)

Page 2

Connect to Steering Wheel Control Port on receiver

AUX Input (if equipped or optional)

Black - Chassis Ground

Green/Violet - Reverse (used only if installing a

video/NAV receiver along with a backup camera)

Blue/White - Amplifier Turn-On

Red - 12 Volts Switched Power

Connect to the 120ASWC1,

disregarding the harness that

came with the ASWC1. It will not

be used in the installation.

Connect to Red and Black wires from the harness on

page 1 and to matching wires from the receiver.

Use the 3.5mm 2-wire adaptor included in the 120ASWC1 for JVC

and Kenwood with the Blue/Yellow steering wheel control input wire.

Connect the Brown wire on the adaptor to the Blue/Yellow wire.

This Blue/White Wire applies to Subaru Legacy and Outback only.

An adaptor may be required if the receiver's

AUX input requires a 3.5mm male connector.

Blue/Pink - VSS (Forester Only)
