Receiver Wiring Adaptor

120 70-9223

Revision 04/12/18

STEP 1 -- MATCH & CONNECT WIRES

*120709223*

IMPORTANT

Before starting, compare items on your invoice with items

received. Thoroughly check packing materials. If an item

is missing, please call Crutchfield at 1-888-955-6000.

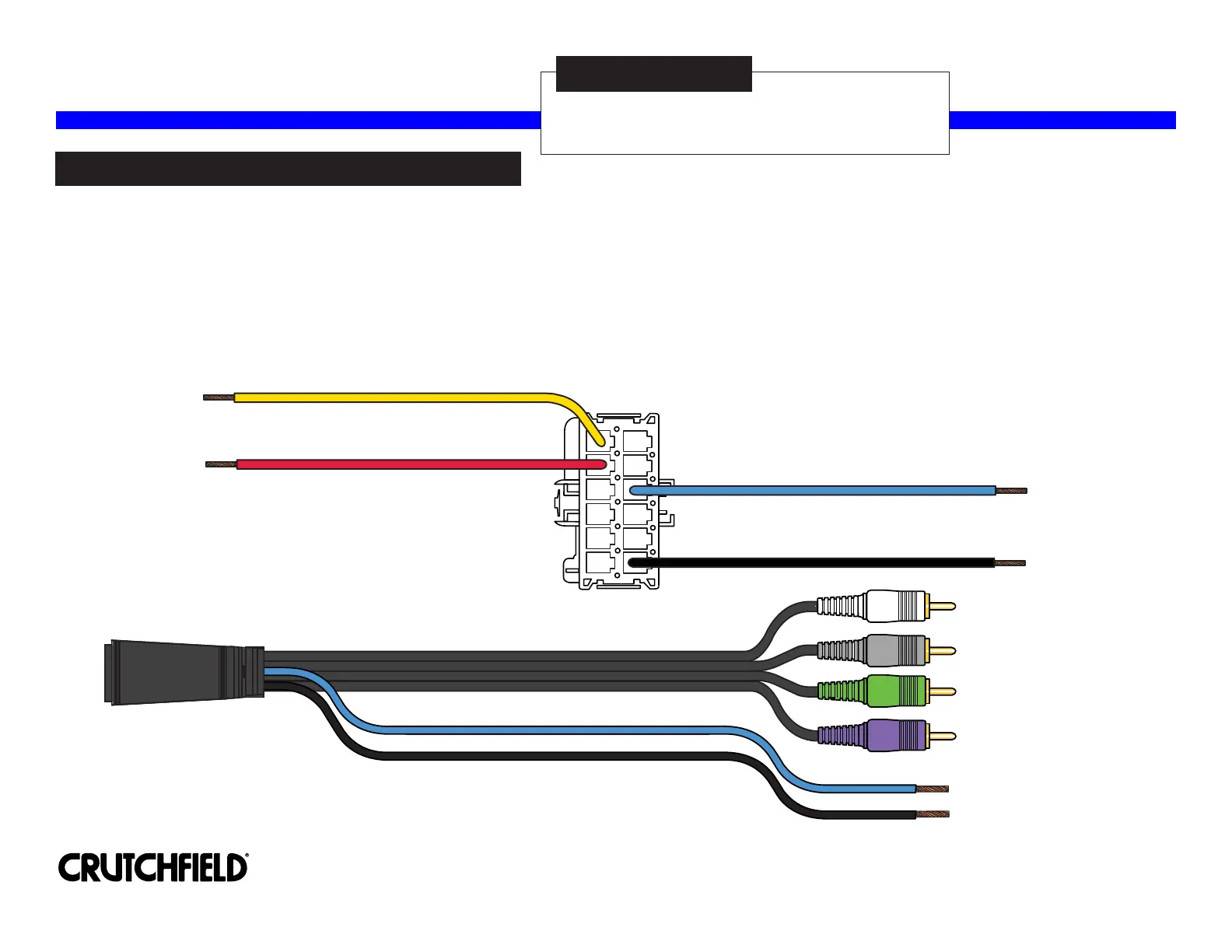

Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your

new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.

Individually tape off any unused wires.

Make final wiring connections following instructions on the next page.

Yellow - 12 Volts Constant Power

Red - 12 Volts Switched Power

Blue - Power Antenna

Black - Chassis Ground

White - Left Front Input

Blue - Amplifier Turn-On

Black - Signal Ground (connect to Chassis Ground)

Gray - Right Front Input

Green - Left Rear Input

Violet - Right Rear Input

120 70-9223

Page 2

STEP 2 -- CONTINUED

A. Strip wires back 1/2”.

B. Twist wires together and

insert in crimp cap.

C. Squeeze middle of cap

for tight connection.

STEP 3 -- APPLICATION

D. Complete crimp connections

for all necessary wires.

E. Be sure to wrap any wires from

the Wiring Adaptor that are

not necessary (wires with no

match from the new receiver)

with electrical tape.

STEP 2 -- CRIMP CONNECTIONS

Tools & Parts

Required

Wire Stripper/Crimp Tool Crimp Caps

Unused Wire (tape over bare wires)

Receiver Wiring Adaptor

Generic Illustration

Receiver Wiring Adaptor Connections

A. When ready to install the

receiver, plug the wiring

Adaptor from the new receiver,

or receiver assembly into the

factory radio harness(es) in the

vehicle dash.
