Receiver Wiring Adaptor

120 70-9500

Revision 04/25/18

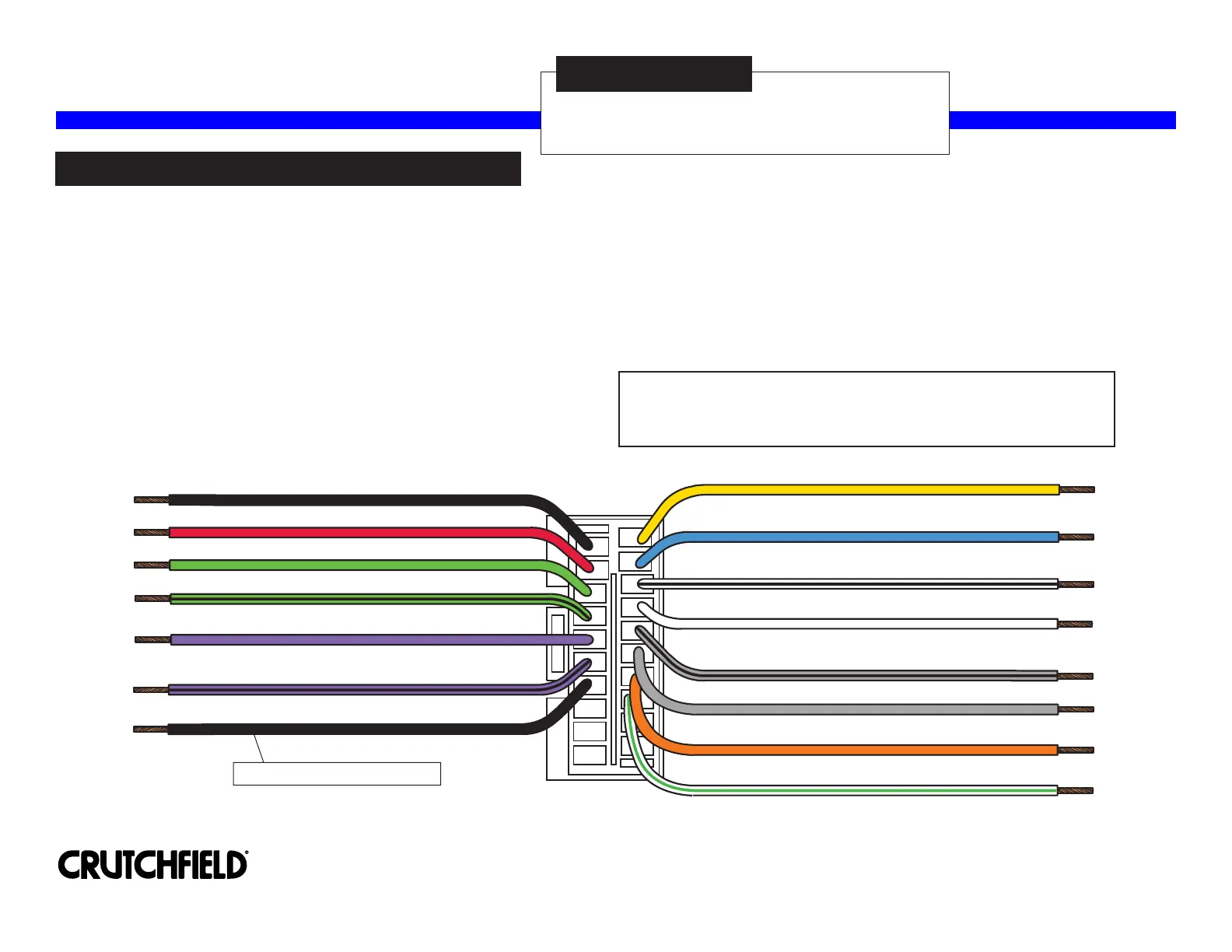

STEP 1 -- MATCH & CONNECT WIRES

*120709500*

IMPORTANT

Before starting, compare items on your invoice with items

received. Thoroughly check packing materials. If an item

is missing, please call

Crutchfield at 1-888-955-6000.

Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your

new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.

Your receiver illumination wire could be Orange or Orange/White. As with other wires, match this wire to the illumination wire in this harness

by function, not by color. If your receiver does not have an illumination wire, tape off the illumination wire.

Individually tape off any unused wires.

Make final wiring connections following instructions on the next page.

Red - 12 Volts Switched Power

Green - Left Rear Speaker Positive

Violet - Right Rear Speaker Positive

Green/Black - Left Rear Speaker Negative

Violet/Black - Right Rear Speaker Negative

Black - Chassis Ground

Yellow - 12 Volts Constant Power

Blue - Power Antenna

Orange - Illumination

Gray/Black - Right Front Speaker Negative

White/Black - Left Front Speaker Negative

White - Left Front Speaker Positive

Gray - Right Front Speaker Positive

Black - Steering Wheel Control Ground

White/Green - Steering Wheel Control Signal

Connect with Chassis Ground.

IMPORTANT - Splice these wires in the factory harness to receiver ground

or to the vehicle chassis to prevent triggering the factory alarm system:

Red - 2002-'08 Jaguar X Type

Black/Green - 2002-'08 S Type
