IMPORTANT

Installation Kit

120 90-3044P

Before starting, compare items on your invoice with items

received. Carefully check through packaging material.

If an item is missing, please call:

Crutchfield

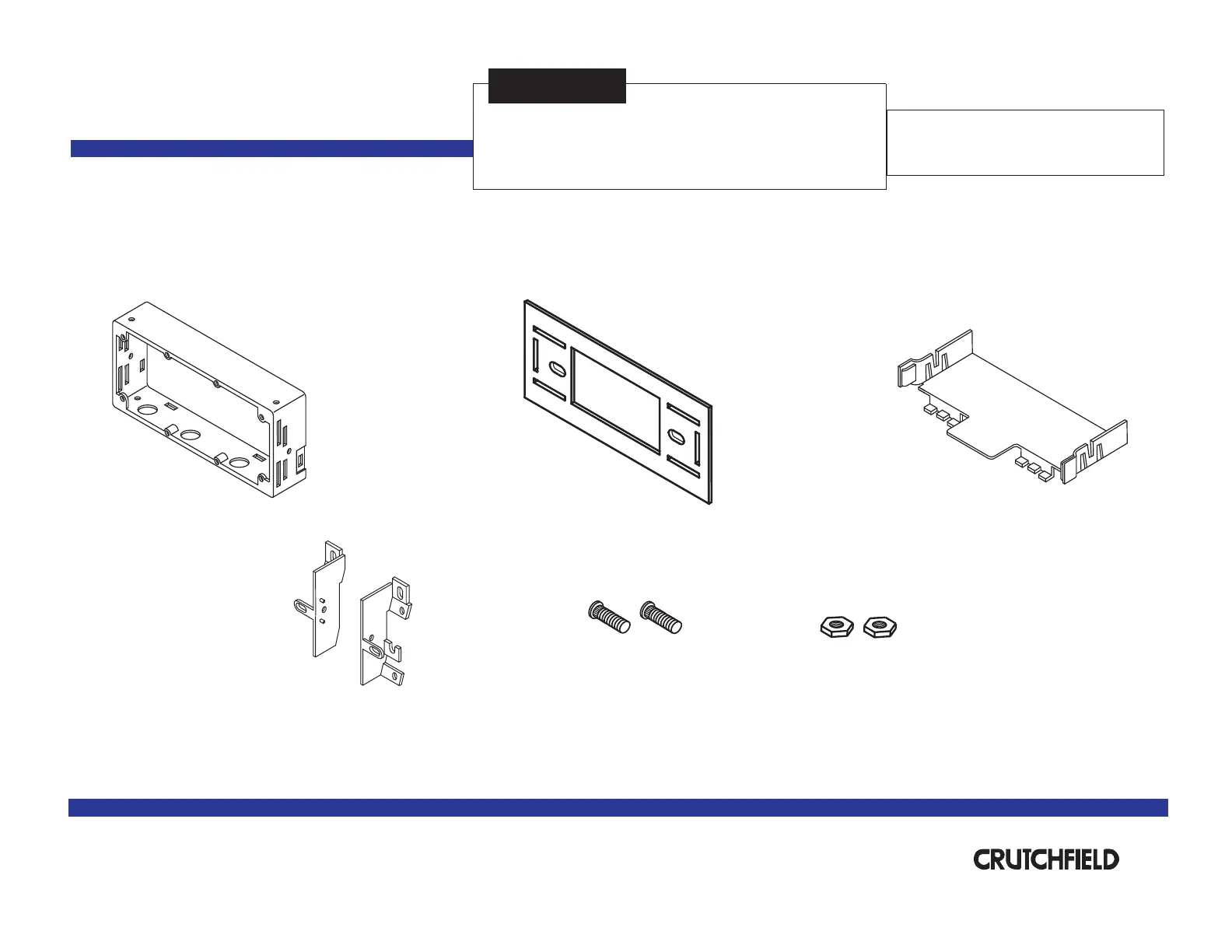

Parts Supplied:

Kit Frame

Support Tray

Chevrolet/GMC

Revision 09/17/03

Kit assembly instructions are on the following pages.

(2) Studs

Page 1 of 3

®

Copyright 2003 Crutchfield Corporation

*120903044P*

Trimplate

(2) 3/8” Nuts

Mounting Brackets

at 1-888-955-6000

FIGURE 2

Shaft Supports

Installation Kit

120 90-3044P

1. Press posts on trimplate into holes on kit frame to snap

parts together and secure (Figure 1).

2. Use a utility knife to cut out in trimplate to shaft supports

create a DIN opening (Figure 2).

3. Push clips on into slots on rear of kit frame to support tray

secure (Figure 1)

4. Cut off all the tabs labeled “A” “B”and on both mounting

brackets that are shown as shaded (Figure 3). The “C” tabs

should be the only remaining tabs.

5. Secure side mounting brackets to kit frame with studs and

nuts supplied (Figure 1).

6. Remove DIN sleeve from receiver and slide into opening in

trimplate. Secure sleeve to trimplate by bending the securing

tabs (Figure 4).

7. Slide receiver into sleeve/kit assembly.

DIN Receiver Assembly

2

®

Copyright 2003 Crutchfield Corporation

FIGURE 4

Securing Tabs

DIN Sleeve

Bend tabs after sleeve

is inside assembly.

FIGURE 1 Trimplate

Kit Frame

Support Tray

Mounting Bracket

Mounting Bracket

Stud Nut

Chevrolet/GMC

Tools Required

Utility

Knife

▲

Small Flat Blade

Screwdriver

3/8” Socket

FIGURE 3

Cut off A & B

(shaded tabs)

on both brackets

These “C” tabs must remain

Hacksaw
