IMPORTANT

Installation Kit

120 90-3057P

Before starting, compare items on your invoice with items

received. Carefully check through packaging material.

If an item is missing, please call:

Crutchfield

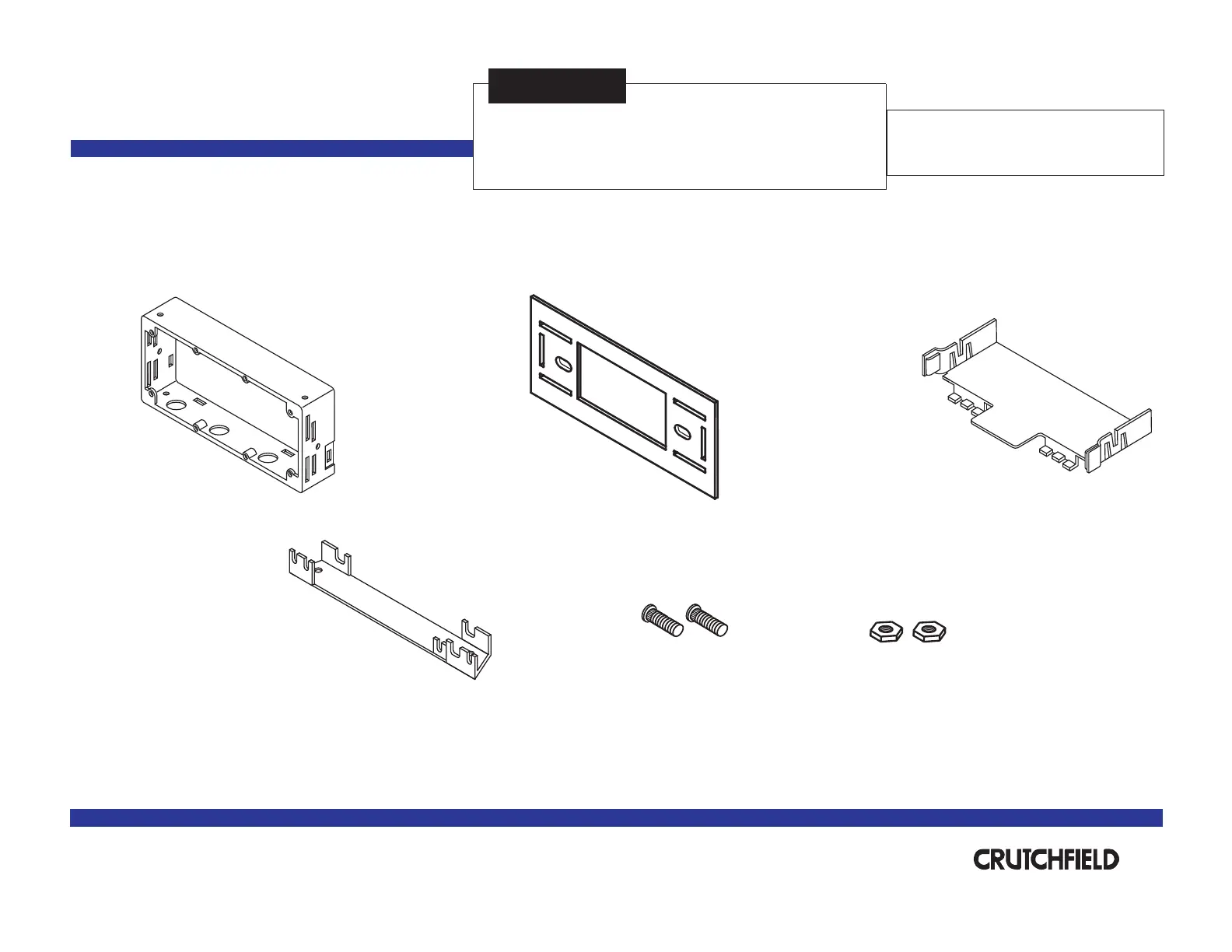

Parts Supplied:

Kit Frame

Support Tray

Saturn

Revision 09/17/03

Kit assembly instructions are on the following pages.

(2) Studs (2) 3/8” Nuts

Page 1 of 3

®

Copyright 2003 Crutchfield Corporation

*120903057P*

Trimplate

Mounting Bracket

at 1-888-955-6000

Installation Kit

Tools Required

120 90-3057P

Saturn

1. Press posts on trimplate into holes on kit frame to snap

parts together and secure (Figure 1).

2. Use a utility knife to cut out in trimplate to shaft supports

create a DIN opening (Figure 2).

3. Push clips on into slots on rear of kit frame to support tray

secure (Figure 1).

4. Use pliers to break off all tabs on mounting bracket that

are shown as shaded (Figure 3). Tabs labeled “A” should

be the only remaining tabs.

5. Secure mounting bracket to top of kit frame with studs

and nuts supplied (Figure 1).

6. Remove DIN sleeve from receiver and slide into opening in

trimplate. Secure sleeve to trimplate by bending the

securing tabs (Figure 4).

7. Slide receiver into sleeve/kit assembly.

DIN Receiver Assembly

Utility

Knife

2

®

Copyright 2003 Crutchfield Corporation

FIGURE 4

Securing Tabs

DIN Sleeve

Bend tabs after sleeve

is inside assembly.

▲

Small Flat Blade

Screwdriver

FIGURE 1

Trimplate

Kit Frame

Support Tray

Mounting Bracket

Stud

Nut

FIGURE 2

Shaft Supports

3/8” Socket

FIGURE 3

Pliers Break off shaded tabs

Mounting Bracket

“A” Tab “A”Tab
