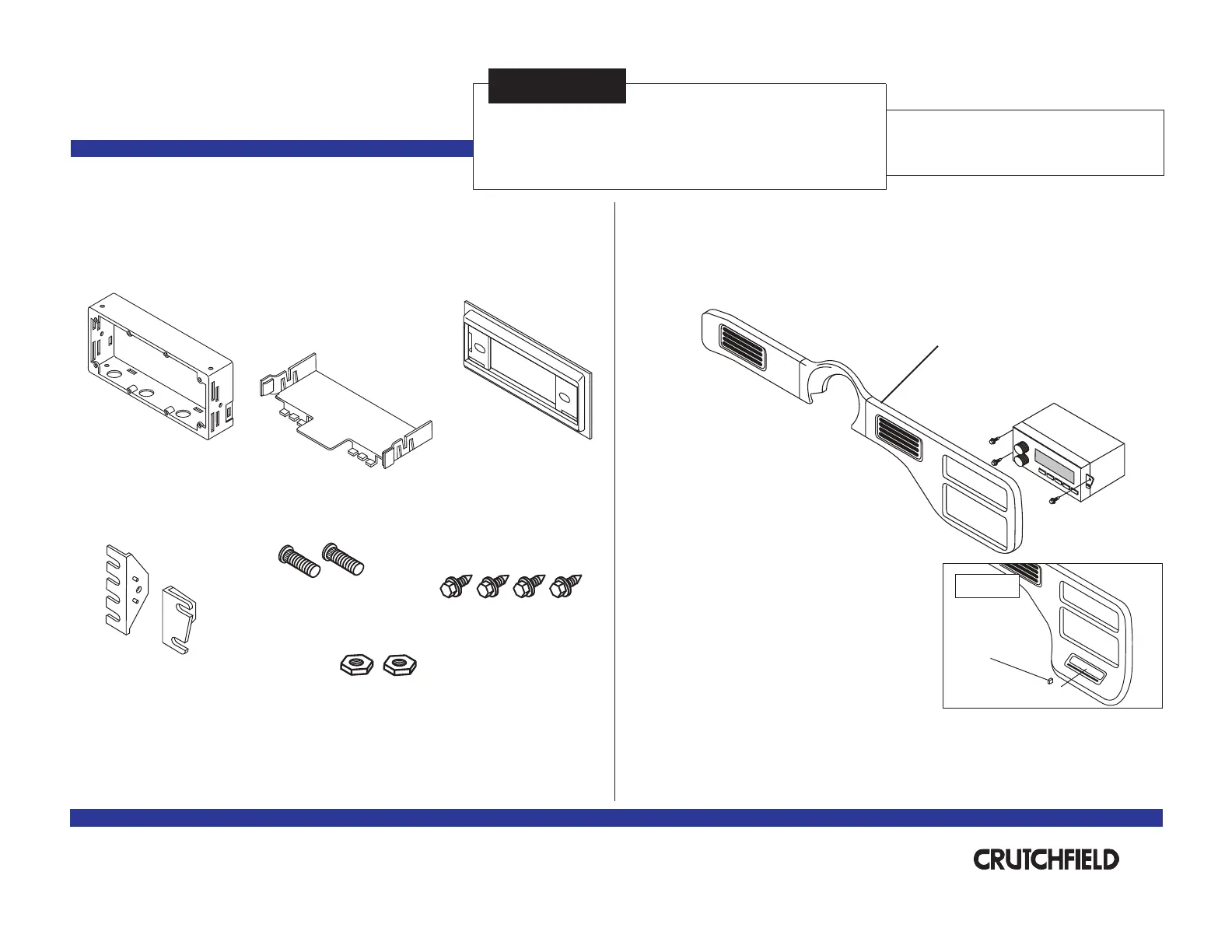

IMPORTANT

Installation Kit

120 91-3520P

Before starting, compare items on your invoice with items

received. Carefully check through packaging material.

If an item is missing, please call:

Crutchfield

Parts Supplied:

Kit Frame

Support Tray

Revision 10/31/03

Kit assembly instructions are on the following pages.

Page 1 of 3

*120913520P*

Mounting Brackets

Left

Right

(2) Studs

(2) 3/8” Nuts

(4) 1/4” Hex Screws

Trimplate

Factory Radio Removal:

1. Disconnect negative battery

cable to prevent any electrical short.

2. Move column shift down for better

access to receiver trimpanel. Tilt

steering wheel to lowest position.

3. Pull out edges of receiver trimpanel to

release retaining clips. If SSEi version:

Remove knob and disconnect sub gain

switch (Inset). Remove trimpanel.

4. Remove three (3) 9/32” screws securing

radio to dash.

5. Pull out radio, disconnect and remove.

Receiver Trimpanel

SSEi version

Sub Gain Switch

Knob

INSET

at 1-888-955-6000

FIGURE 2

Shaft Supports

Installation Kit

120 91-3520P

Pontiac

1. Press posts on trimplate into holes on kit frame to snap

parts together and secure with hex screws (Figure 1).

2. Use a utility knife to cut out in trimplate to shaft supports

create a DIN opening (Figure 2).

3. Push clips on into slots on rear of kit frame support tray

to secure (Figure 1).

4. Secure right and left to sides of kit mounting brackets

frame with studs nutsand supplied (Figure 1).

5. Remove DIN sleeve from receiver and slide into

opening in trimplate. Secure sleeve to trimplate by

bending the securing tabs (Figure 3).

6. Slide receiver into sleeve/kit assembly.

DIN Receiver Assembly

Securing Tabs

DIN Sleeve

Bend tabs after sleeve

is inside assembly.

FIGURE 1

Trimplate

Kit Frame

Support TrayLeft Mounting Bracket

Stud

Nut

Right Mounting Bracket

FIGURE 3

Hex Screws

Tools Required

Utility

Knife

▲

Small Flat Blade

Screwdriver

1/4” & 3/8”

Sockets
