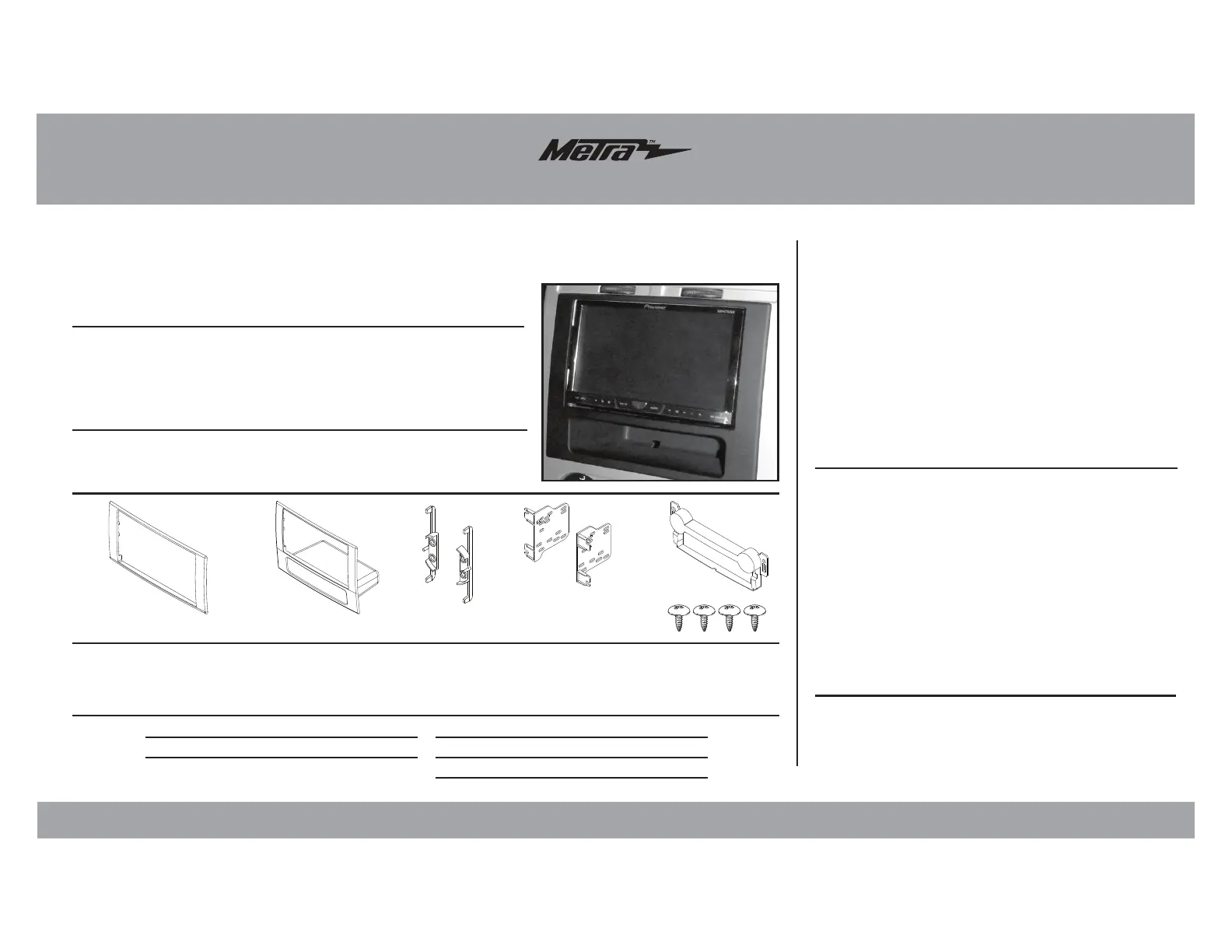

REV. 3/7/2016 INST95-6534B

Installation instructions for part 95-6534B

CAUTION!

All accessories, switches, climate controls panels, and

especially air bag indicator lights must be connected before cycling

the ignition. Also, do not remove the factory radio with the key in the

on position, or while the vehicle is running.

• ISO DDIN radio provision

• ISO DDIN radio provision with pocket

• Painted matte black

• A1) ISO DDIN trim panel • A2) ISO DDIN trim panel with pocket

• B) Trim panel retainers • C) Radio brackets

• D) Cut template • E) (4) #8 x 3/8” Phillips screws

KIT FEATURES

KIT COMPONENTS

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • XSVI-6502-NAV • CHTO-01

Antenna Adapter: • 40-CR10

• Panel removal tool • Phillips screwdriver

• 7mm socket wrench • Cutting tool or hand saw

TOOLS REQUIRED

Dodge / Jeep 2007-2008

95-6534B

A1 A2 C D

Dash Disassembly ..................................................2

Kit Preparation ........................................................3

Kit Assembly

– ISO DDIN radio provision ...................................... 3

Table of Contents

APPLICATIONS

DODGE

Caliber 2007-2008

JEEP

Compass 2007-2008

Patriot 2007-2008

95-6534B

Dodge Caliber 2007-2008

1. Unsnap and move the shifter trim to

the side. (Figure A)

2. Unsnap the radio trim panel and

then remove (4) Phillips screws

securing the climate controls to the

back of the panel, before removing

the panel completely. (Figure A)

3. Remove (4) 7mm screws securing

the radio and then remove.

4. Remove (4) Phillips screws securing

the metal radio sub-dash bracket to

the vehicle and then remove.

Continue to kit preparation

Jeep Compass/Patriot 2007-2008

1. Remove the shift knob.

2. Remove the center portion of the

shifter trim panel. (Figure A)

3. Remove the (2) 7mm screws

exposed and then remove the outer

shifter trim panel. (Figure A)

4. Remove the top dash panel above

the AC vents.

Remove the (2) exposed 7mm screws

at the top of the radio trim bezel.

6. Unsnap the radio trim panel and then

remove (4) Phillips screws securing

the climate controls to the back of

the panel, before removing the panel

completely. (Figure B)

7. Remove (4) 7mm screws securing

the radio and then remove.

8. Remove (4) Phillips screws securing

the metal radio sub-dash bracket to

the vehicle and then remove.

Continue to kit preparation

Dash Disassembly

(Figure A) (Figure B)(Figure A)

1 2 3 4 5 6

123 4 5 6
