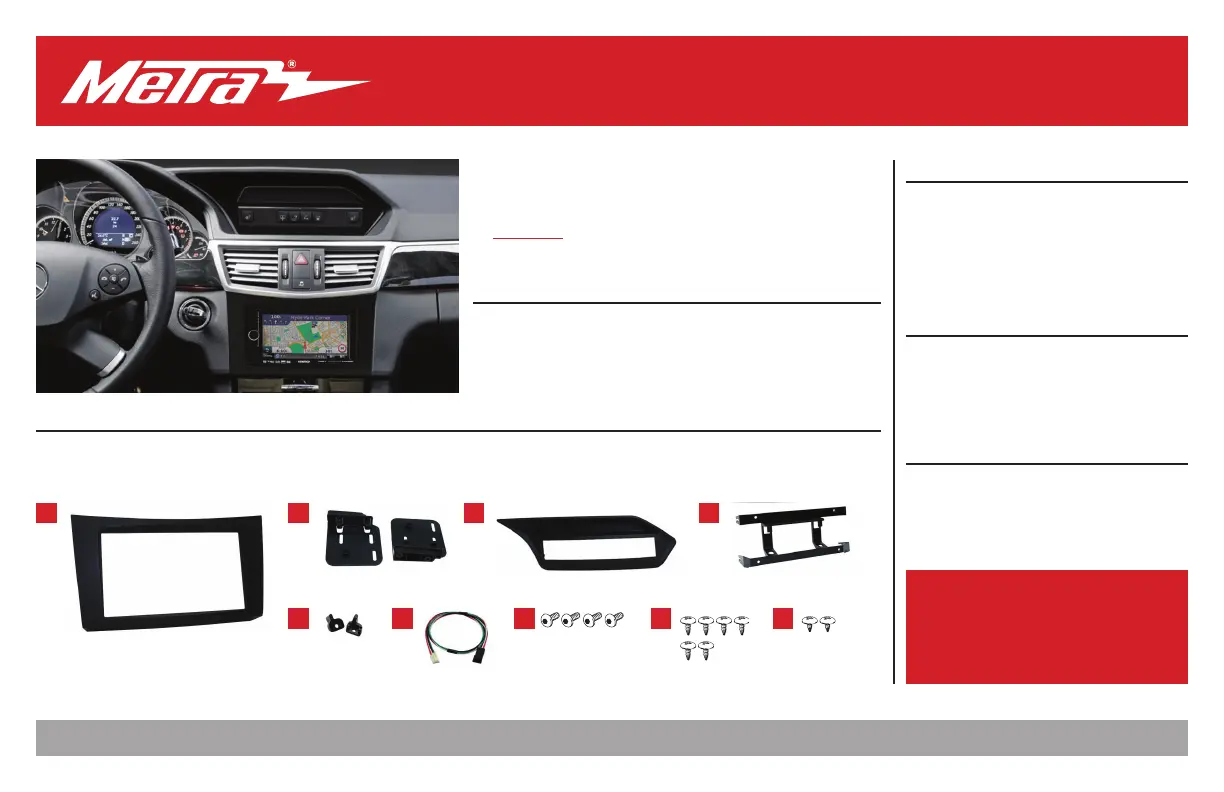

Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 1/8/19 INST95-8730B
I N S TA L L AT I O N I N S T R U C T I O N S
95-8730B
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
• ISO DDIN radio provision
• Includes panel for relocating the factory buttons
• Painted black
KIT COMPONENTS
• A) Radio housing • B) Radio brackets • C) Button panel housing • D) Button panel housing bracket • E) Button panel tabs (2)
• F) Button extension harness • G) Radio screws (4) •H) 3/8” screws (6) •I) 1/4” screws (2) TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• T-20 Torx screwdriver • 3mm Allen screwdriver
• Thin-head flat-blade screwdriver
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................3
Kit Assembly ..........................................................4
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness: XSVI-9005-NAV (non-amped only)
Antenna Adapter: 40-EU10
A B
E F
DC
Mercedes E Class (W212) 2010-2013
* Left hand drive models only
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
G H I
1.800.221.0932
|
MetraOnline.com
2
Radio/Button Removal:
1. Open the glove box, then pull down (2)
clips securing the a/c vent panel above
the glove box opening. (Figure A)
2. Locate the release clip inside each center
a/c vent. Using a thin-head flat-blade
screwdriver, pull out on the release clips
to free the a/c vent panel. Unclip, unplug
and remove the panel. (Figure B)
3. Unscrew (2) T-20 Torx screws on top of
the radio/button assembly until they no
longer turn easily, then pull them up as
much as they can go. Gently pull on the
radio to release it. If it doesn’t release,
slightly unscrew the screws again, and
periodically pull on the radio/button
assembly until the assembly releases.
Slide the assembly out just enough to
access the connector on the bottom *
right side of the assembly. Slide the
assembly out fully, then unplug and
remove the assembly. (Figures C & D)
Note *: This connector will connect to
the button extension harness discussed
in .Kit Preparation
Display Removal:
1. Unclip and remove the
display bezel trim. There are
(4) clips securing the trim
to the display. Shown in the
figure is the bottom left clip.
(Figure E)
Continue to Kit Preparation
(Figure E)
(Figure A)
(Figure B)
(Figure C)
(Figure D)
DASH DISASSEMBLY
