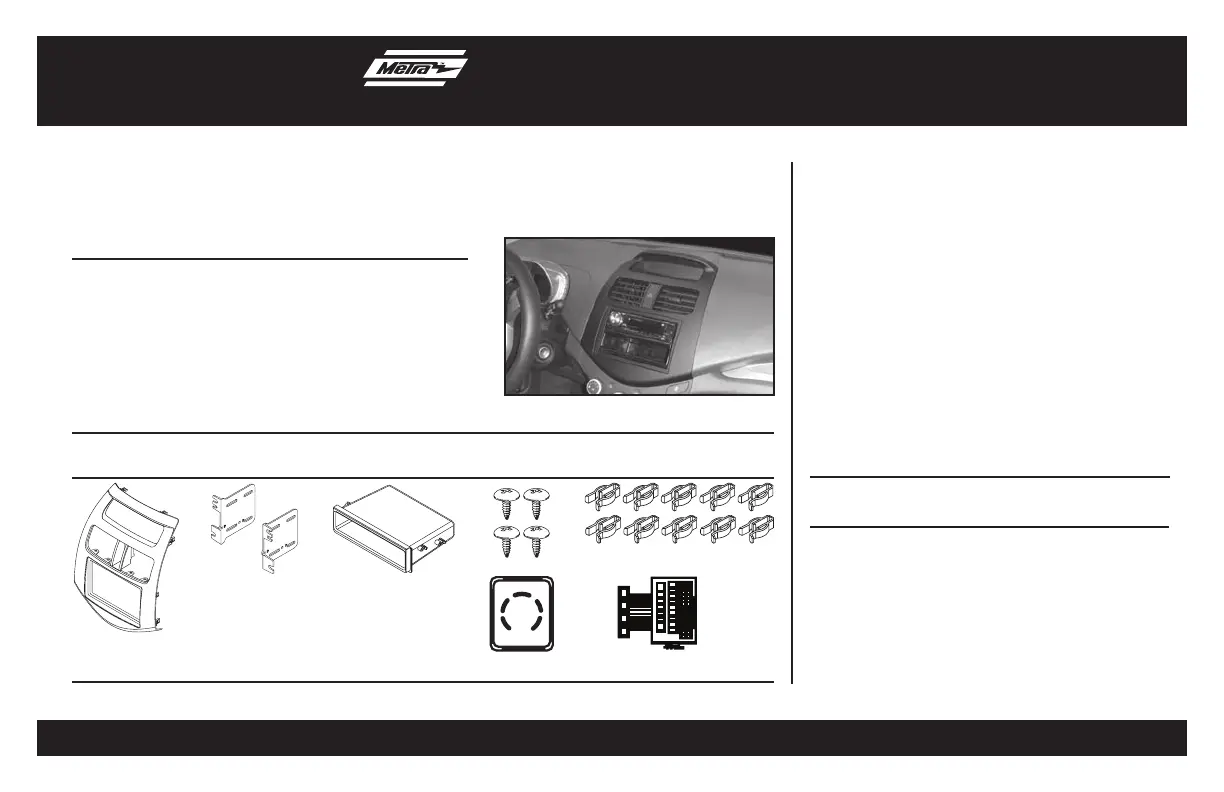

Installation instructions for part 99-3309B-LC

CAUTION!

All accessories, switches, climate controls panels, and

especially air bag indicator lights must be connected before cycling

the ignition. Also, do not remove the factory radio with the key in the

on position, or while the vehicle is running.

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Painted matte black to match the factory dash

• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8” Phillips screws

• E) (10) White plastic panel clips • F) Axxess Interface included (not shown)

20;-,(;<9,:

20;*64765,5;:

>0905.(5;,55(*655,*;065: (sold separately)

Wiring Harness: • Axxess Interface included

Antenna Adapter: • 40-EU55

• Panel removal tool • Phillips screwdriver

;663:9,8<09,+

Chevrolet Spark 2013-2015

99-3309B-LC Dash Disassembly ..................................................2

Kit Preparation ....................................................... 2

Kit Assembly

– ISO DIN radio provision with pocket ...................... 3

– ISO DDIN radio provision ...................................... 3

Axxess Interface Installation ................................ 4

– Connections to be made ....................................... 4

– Installing the Axxess interface .............................. 5

– Initializing the Axxess interface ............................ 5

– Vehicle customization with the optional AX-LCD ... 5

Table of Contents

A B C D E

99-3309B-LC

Dash Disassembly

1. Unclip and remove the radio trim

panel. (Figure A)

Remove (4) Phillips screws securing

the factory radio and then remove.

(Figure B)

Continue to Kit Preparation

From the factory radio trim panel

(Figure A):

1. Unclip and remove the A/C vents.

2. Unclip and remove the hazard

button.

3. Remove (5) Phillips screws

securing the upper display shroud.

From the 99-3309B-LC radio trim

panel (Figure B):

1. Snap in the factory A/C vents.

2. Attach the (10) panel clips

supplied.

Continue to Kit Assembly

Kit Preparation

(Figure A)

Step 3

Step 1

Step 2

(Figure A)

(Figure B) (Figure B)
