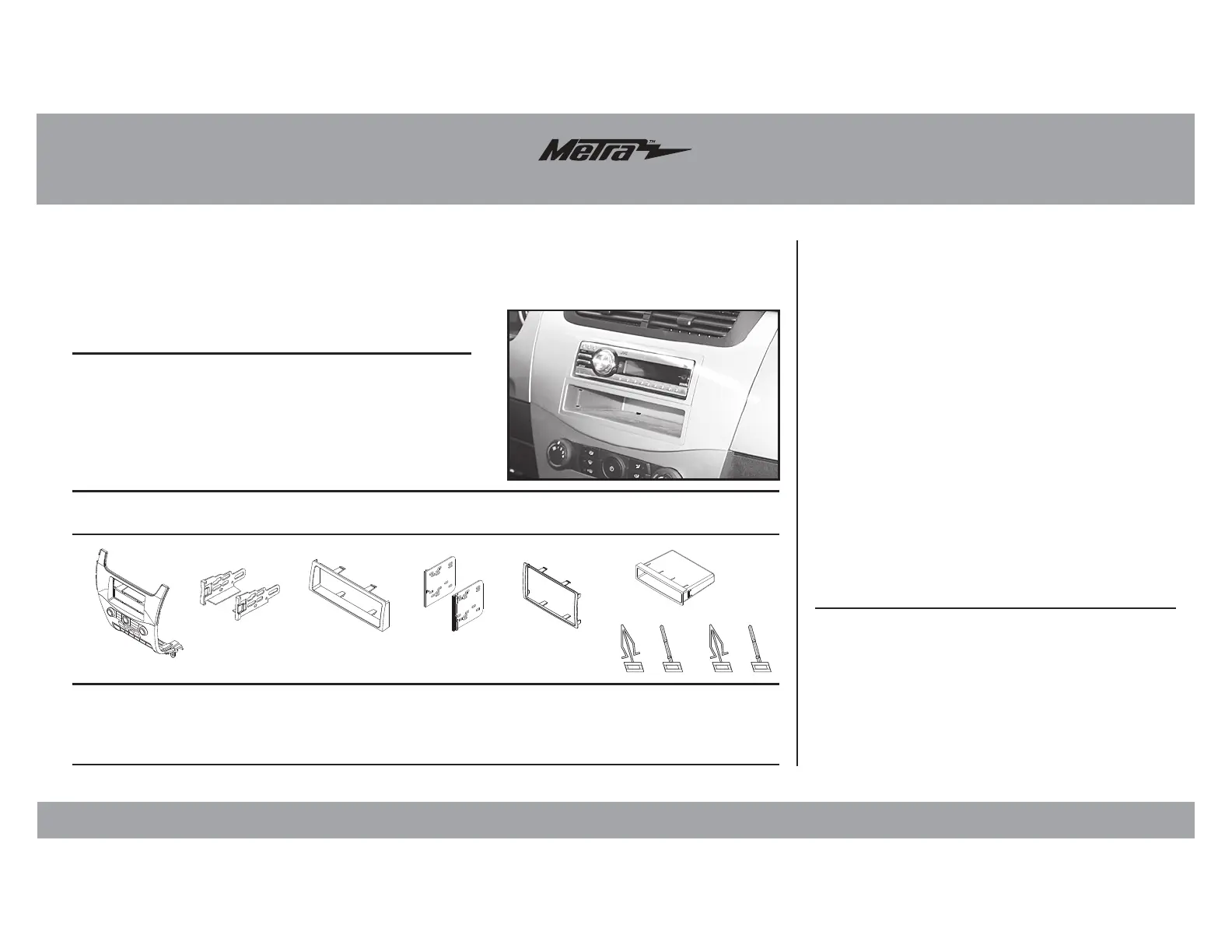

REV. 8/26/2015 INST99-5816

Installation instructions for part 99-5816

CAUTION!

Metra recommends disconnecting the negative bat

tery terminal before beginning any installation, unless the vehicle

manufacturer recommends against so. Please check with your local

Dealership for more information. All accessories, switches, climate

controls panels, and especially air bag indicator lights must be con-

nected before reconnecting the battery or cycling the ignition. Also,

do not remove the factory radio with the key in the on position, or the

vehicle running. It would be best to remove the key from the ignition

and then wait a few seconds before removing the factory radio.

• DIN radio provision with pocket

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Painted to match factory dash

• A) Radio housing trim panel • B) ISO brackets • C) ISO trim plate • D) ISO DDIN brackets

• E) ISO DDIN trim plate • F) Pocket • G) (2) Top clips • H) (4) Middle radio housing clips

20;-,(;<9,:

20;*64765,5;:

>0905.(5;,55(*655,*;065: (sold separately)

Wiring Harness: • XSVI-5520-NAV • XSVI-5521-NAV • AX-ADBOX2 & AX-ADFD01

Antenna Adapter: • Not required

• Panel removal tool • Phillips screwdriver • Socket set • Cutting tool • T-20 Torx driver

;663:9,8<09,+

Ford Focus 2008-2011

99-5816 Dash Disassembly ..............................................2-3

Kit Preparation ....................................................... 4

Kit Assembly

– DIN radio provision with pocket ............................ 5

– ISO DIN radio provision with pocket ...................... 6

– ISO DDIN radio provision ...................................... 7

Table of Contents

B CA D F

G H

99-5816

Unclip and remove the trim panel surrounding

the shifter, including the cup holders. (Figure A)

Remove (2) 9/32” screws from the bottom

edge of the factory radio trim panel. (Figure B)

Remove (2) 9/32” screws above the gauge

cluster (facing up), then unclip and remove

the trim panel surrounding the gauge cluster.

(Figure C)

4. Unclip and remove the trim panel above the

glove box. (Figure D)

Continued on the next page

Dash Disassembly

P ASS

AIR

BAG

O F F

(Figure B)

P AS S

AIRBAG

OF F

(Figure D)

(Figure C)

P ASS

AIRBAG

O F F

(Figure A)
