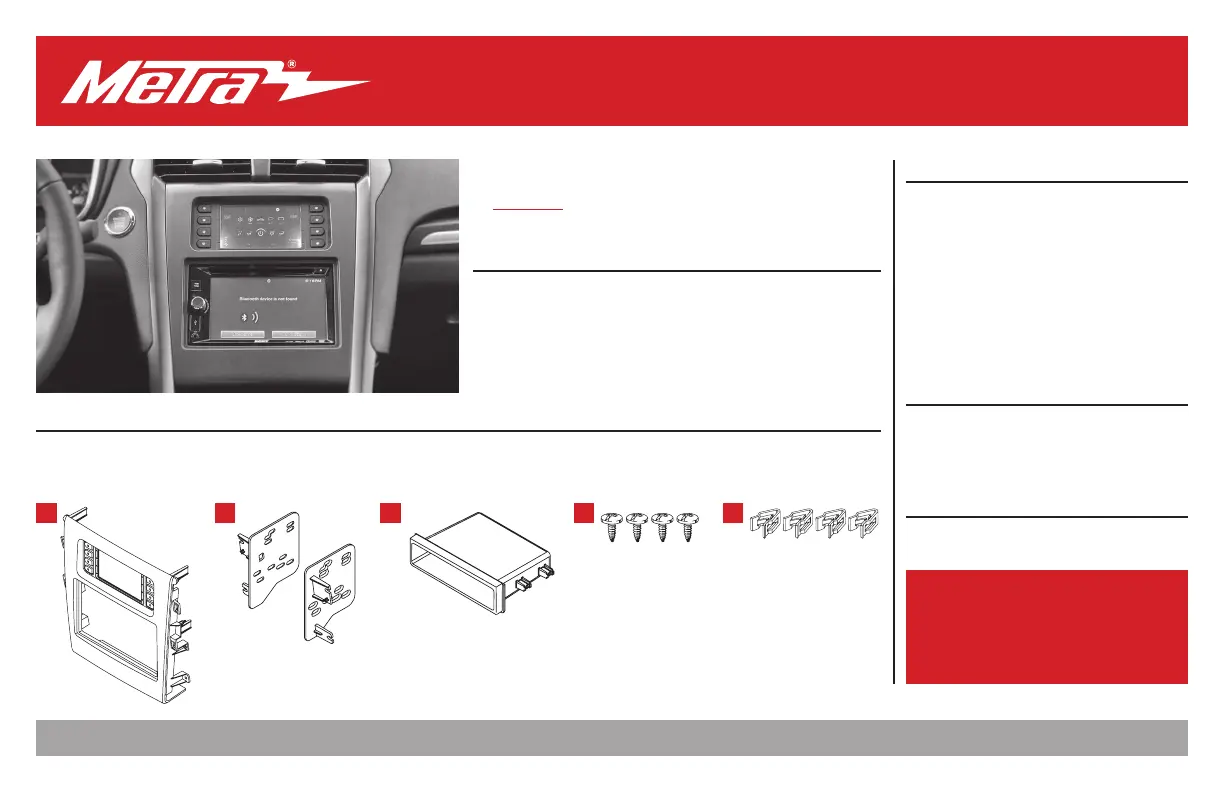

The World’s best kits.®metraonline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 7/19/19 INST99-5841B
I N S TA L L AT I O N I N S T R U C T I O N S
99-5841B
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Touchscreen display for climate and personalization features
• Included interface for climate and steering wheel functions
• Painted black
KIT COMPONENTS
• A) Radio trim panel with touchscreen display • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8” Phillips screws • E) (4) Panel clips
• F) HVAC interface and wiring harness (not shown) • G) Antenna adapter (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench • Cutting tool
TABLE OF CONTENTS
Dash Disassembly ...............................................2-3
Kit Preparation .......................................................4
Kit Assembly
–ISO DIN radio provision with pocket ..................5
–ISO DDIN radio provision .....................................5
Axxess Interface Installation ............................6-15
Final Assembly ...................................................... 11
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built into
touchscreen
Antenna Adapter: Included with kit
A B C D E
Ford Fusion 2013-2017
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
1.800.221.0932
|
MetraOnline.com
For 2013-2016 models only:
1. Unclip the trim from around the shifter.
(Figure A)
2. Unclip the U-shaped trim from the rear
of the shifter. (Figure B)
For 2017 models only:
3. Unclip and remove the left and right side
panels from the center console, then
remove the (2) 9/32” screws exposed.
(Figure C)
Continued on the next page
