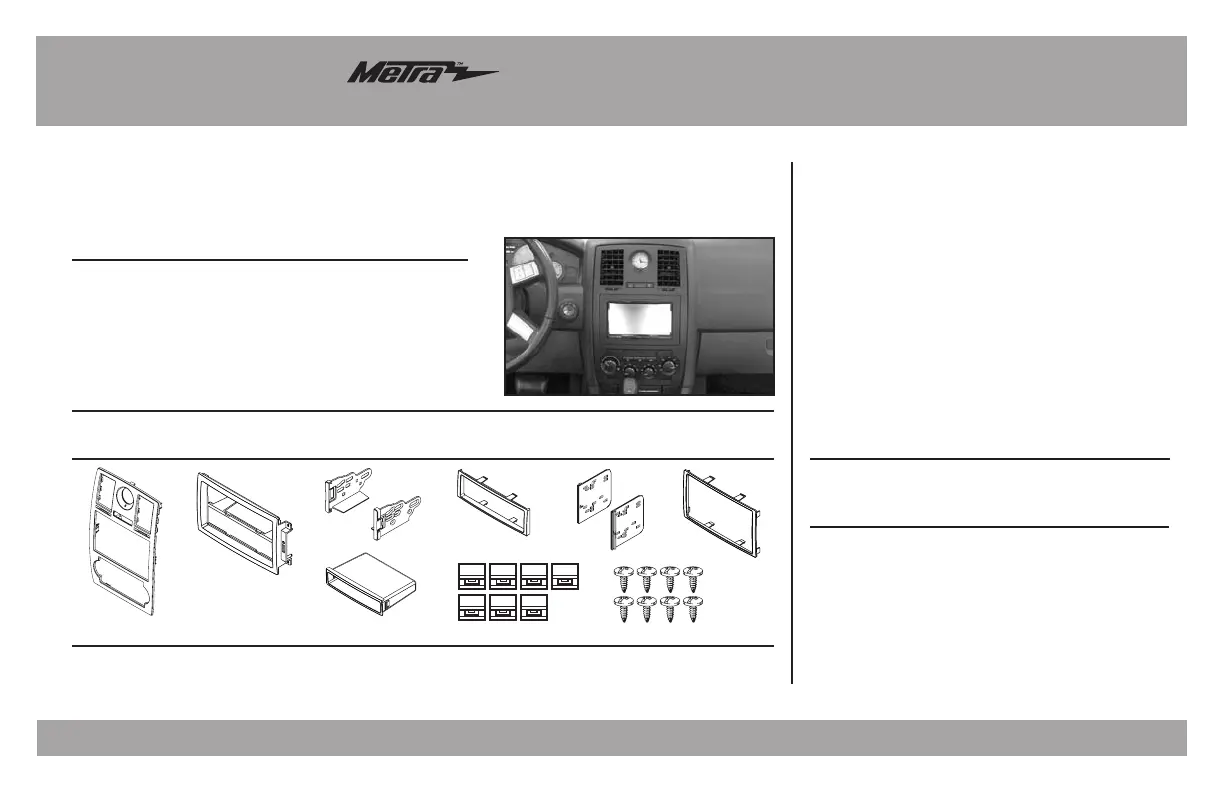

Side 1/8

APPLICATIONS

REV. 3/4/2014 INST99-6516B

CAUTION: Metra recommends disconnecting the

negative battery terminal before beginning any

installation. All accessories, switches, and especially

air bag indicator lights must be plugged in before

reconnecting the battery or cycling the ignition.

NOTE: Refer to the instructions included with the

aftermarket radio.

INSTALLATION INSTRUCTIONS FOR PART 99-6516B

• A) Radio housing trim panel • B) Radio housing • C) ISO Brackets • D) ISO Trim plate • E) Double DIN brackets

• F) Double DIN trim plate • G) Pocket • H) (7) metal panel clips • I) (8) #6 Phillips screws

KIT COMPONENTS

• DIN radio provision with pocket

• ISO radio provision with pocket

• Double DIN radio provision

• Painted matte black

KIT FEATURES

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • XSVI-6502-NAV - Chrysler CAN R.A.P. interface 2004-up

• CHTO-01 - Chrysler CAN amp interface 2004-up

Antenna Adapter: • 40-CR10 - Chrysler antenna adapter 2004-up

• Flat blade screwdriver • Panel removal tool

• Phillips screwdriver • Socket wrench • Cutting tool

TOOLS REQUIRED

A B C

H I

E F

Dash Disassembly

– Chrysler 300 2005-2007 ...................................... 2

Kit Assembly

– DIN radio provision with pocket ............................ 2

– ISO radio provision with pocket ............................ 3

– Double DIN radio provision ................................... 3

Table of Contents

99-6516B

1. Unclip and remove entire panel

surrounding radio and climate

controls, including A/C vents and

clock. (Figure A)

2. Remove (4) 7mm screws securing

radio to dash and remove radio.

(Figure B)

3. Remove factory vents, clock,

switch plate, and climate controls

from the factory radio panel and

transfer to the 99-6516B radio

panel using the screws provided in

this package.

Continue to kit assembly

Dash Disassembly Kit Assembly

(Figure A)

(Figure B)

DIN radio provision with pocket

1. Slide the DIN cage into the radio

housing and secure by bending

the metal locking tabs down.

(Figure A)

2. Slide the aftermarket radio into the

cage until secure. (Figure B)

3. Snap the pocket into the radio

housing. (Figure C)

4. Locate the factory wiring harness

in the dash. Metra recommends

using the proper mating adapter

from Metra or AXXESS. Re-connect

the negative battery terminal and

test the unit for proper operation.

5. Reassemble dash in reverse order

of disassembly, using the new

Metra radio housing trim panel.

(Figure A)

(Figure C)

(Figure B)
