CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 1/8/18 INST99-7381

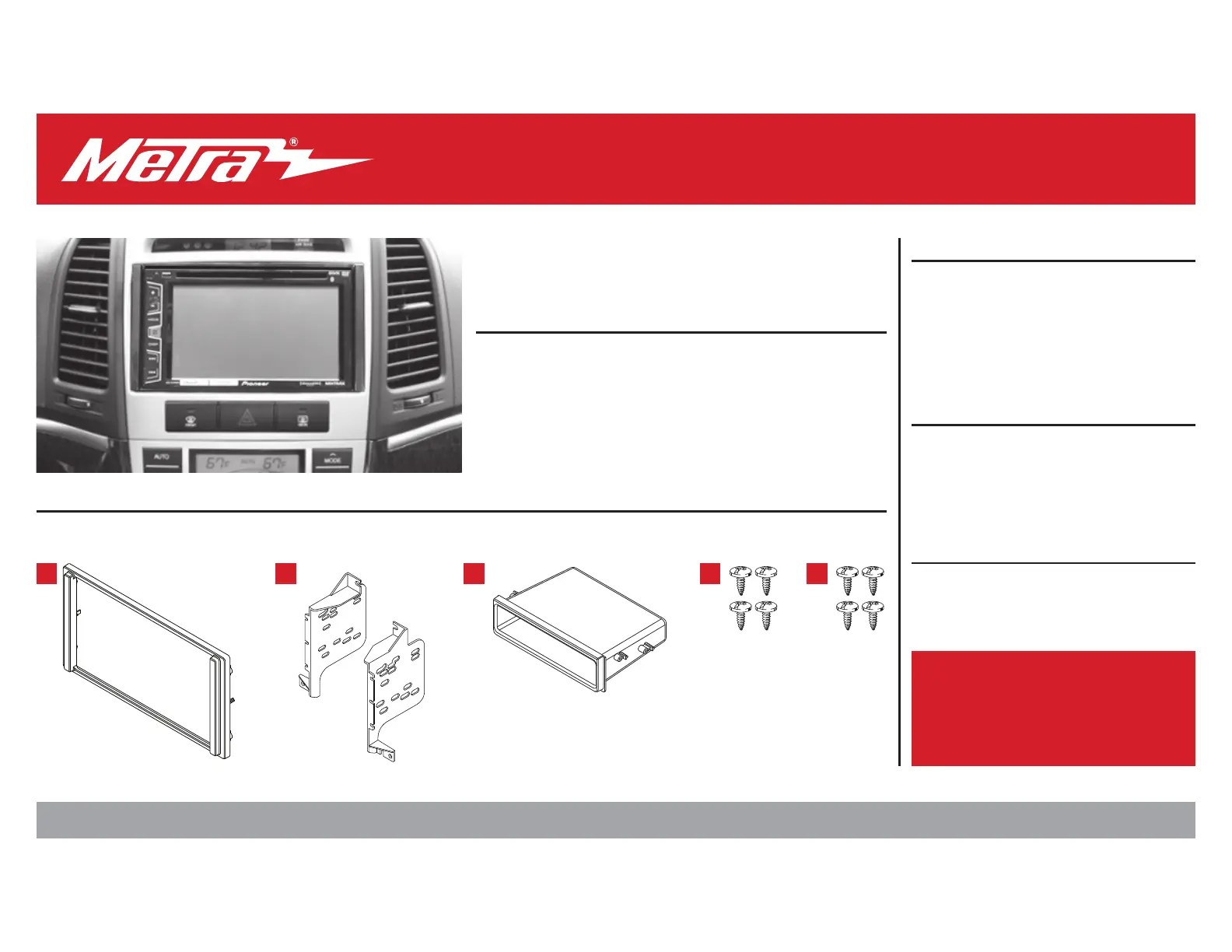

I N S TA L L A T I O N I N S T R U C T I O N S
99-7381
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8” Phillips screws • E) (4) #6 x 3/8” Phillips screws
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Assembly
–ISO DIN radio provision with pocket ..................3
–ISO DDIN radio provision .....................................3
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness: 70-1004
Antenna Adapter: Not required
Steering Wheel Control Interface: ASWC-1
A B C D E
Hyundai Santa Fe (with factory NAV) 2008-2009
1.800.221.0932
|
MetraOnline.com
2
DASH DISASSEMBLY
1. Remove (1) Phillips screw from the right
side of the panel below the steering
column then unclip and let right side of
panel hang. (Figure A)
2. Unclip and remove the cover above the
clock on top of panel surrounding the
radio. (Figure B)
3. Unclip and remove the panel extending
across the dash below the a/c control
and above the glove box including the
ash tray. (Figure C)
4. Remove (2) Phillips screws then unclip
and remove the panel surrounding the
radio including the A/C vents. (Figure D)
5. Remove (4) Phillips screws securing the
radio. Unplug and remove radio.
Note:
Illustrations shown are not actual
representation of the vehicle.
Continue to Kit Assembly
(Figure C) (Figure D)
(Figure A) (Figure B)
