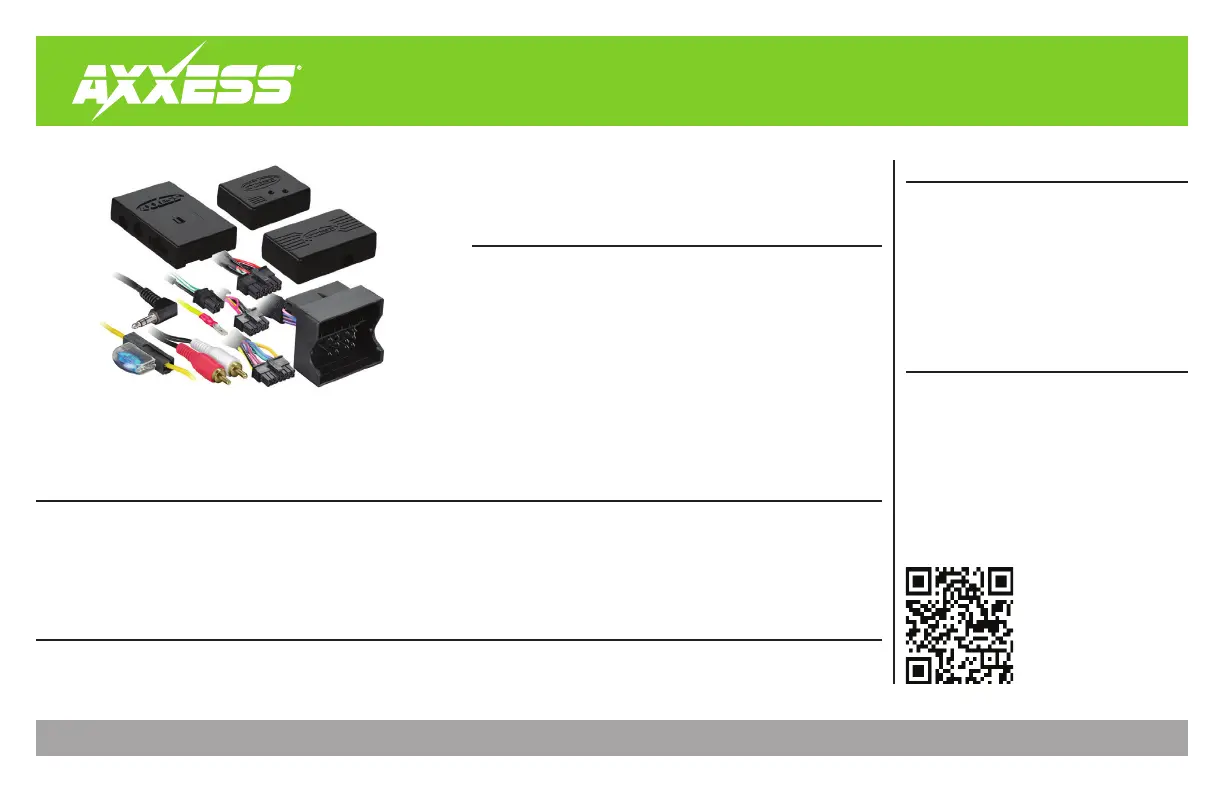

Side 1/5

AX-BM90122

I N S TA L L A T I O N I N S T R U C T I O N S

Product Info

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties

TABLE OF CONTENTS

Connections ............................................................2

Installation ............................................................. 3

Programming ......................................................... 3

BMW (with M.O.S.T. 25 ampliﬁer) 2004-2013

• Provides accessory power (12 volt 10 amp)

• Retains R.A.P. (retained accessory power)

• Designed for ampliﬁed models

• Retains audio controls on the steering wheel

• Retains phone buttons (radio dependent)

• Retains factory features: date, time, temperature display

• Micro-B USB updatable

• AX-BM90122 interface

• AX-BM90122 ampliﬁer interface

• ASWC-1 interface

• AX-BM90122 harness

• ASWC-1 harness

• 3.5mm adapter

APPLICATIONS

BMW

1-Series 2004-2013 3-Series 2005-2012

CONNECTIONS

From the aftermarket radio to the AX-BM90122 harness, connect the:

• wire to the ground wire.Black

• Yellow wire to the battery wire.

• Yellow wire (6’ long w/ fuse-holder) directly to the vehicles battery.

• wire to the accessory wire.Red

• Orange wire to the illumination wire (if applicable).

• wire to the power antenna turn-on wire.Blue

• Brown wire to the mute wire.

The following (3) wires are only for multimedia/navigation radios that require these wires.

• wire to the VSS/speed sense wire.Blue/Pink

• Green/Purple wire to the reverse wire.

• Light Green wire to the parking brake wire.

•

Tape off and disregard the following (8) wires, they will not be used in this application:

Gray, Gray/Black Green Green/Black Purple Purple/Black White White/Black, , , , , ,

• and RCA jacks to the full range ampliﬁer output jacks.Red White

ASWC-1 harness:

This harness is only to be used if the vehicle is equipped with steering wheel controls.

• Connect the wire to the chassis ground.Black

• Connect the wire to accessory power.Red

• For the radios listed below: Connect the

3.5mm adapter

to the male 3.5mm SWC jack from the

ASWC-1 harness. Any remaining wires tape off and disregard:

• Connect the steering wheel control wire, normally Eclipse: Brown Brown/White, to the wire

of the connector. Then connect the remaining steering wheel control wire, normally Brown/

White Brown, to the wire of the connector.

• Connect the steering wheel control Key 1 wire to the Metra OE: (Gray) Brown wire.

• Kenwood or select JVC with a steering wheel control wire: Blue/Yellow Connect the wire to

the wire.Brown

• Connect the steering wheel control SWC-2 wire from the radio to the XITE: Brown wire.

• Parrot Asteroid Smart or Tablet: Connect the 3.5mm jack into the AX-SWC-PARROT (sold

separately), and then connect the 4-pin connector from the AX-SWC-PARROT into the radio.

Note:

The radio must be updated to rev. 2.1.4 or higher software.

• Universal “2 or 3 wire” radio: Connect the steering wheel control wire, referred to as Key-A or

SWC-1, to the Brown wire of the connector. Then connect the remaining steering wheel control

wire, referred to as Key-B or SWC-2, to the wire of the connector. If the radio Brown/White

comes with a third wire for ground, disregard this wire.

Note:

After the interface has been programmed to the vehicle, refer to the manual provided with

the radio for assigning the SWC buttons. Contact the radio manufacturer for more information.

• Connect the 3.5mm jack from the ASWC-1 harness, into the jack on the For all other radios:

aftermarket radio designated for an external steering wheel control interface. Please refer to the

aftermarket radios manual if in doubt as to where the 3.5mm jack goes to.
