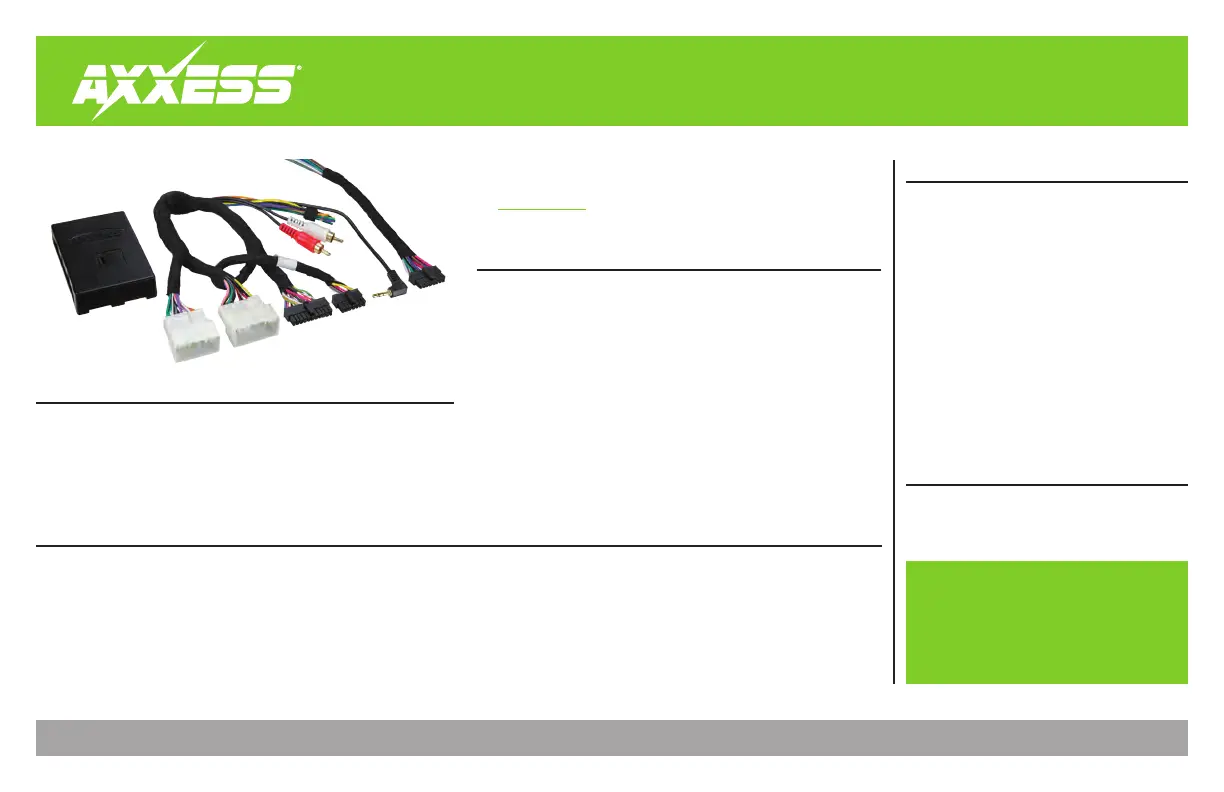

AX-HYKIA1-SWC

I N S TA L L A T I O N I N S T R U C T I O N S

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections are secure before

cycling the ignition to test this product.

NOTE: Refer to the instructions included with

the aftermarket radio.

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun, solder,

and heat shrink • Tape • Wire cutter • Zip ties

TABLE OF CONTENTS

Connections ........................................................ 2-4

Installation .............................................................5

Programming .........................................................6

Steering Wheel Control Settings ...................... 7-9

L.E.D. feedback ....................................................5

Changing radio type ...........................................7

Remapping .......................................................7-8

Dual assignment .............................................8-9

Troubleshooting .....................................................9

Hyundai/Kia Data Interface with SWC 2010-2016

APPLICATIONS

INTERFACE FEATURES

• Provides NAV outputs (parking brake, reverse, speed sense)

• Retains audio controls on the steering wheel

• Retains BlueLink

• Designed for ampliﬁed* and non-ampliﬁed models**

• Retains balance and fade†

• Micro-B USB updatable

HYUNDAI

Elantra * 2011-2016

Genesis Coupe * 2013-2016

Santa Fe * 2013-2016

Santa Fe Sport * 2014-2016

Sonata * 2011-2016

Sonata Hybrid * 2011-2015

Tucson * 2010-2015

KIA

Optima * 2011-2015

Optima Hybrid * 2011-2016

Sorento (with UVO) * 2011-2013

Sorento * 2014-2016

Soul * 2012-2013

Sportage 2011-2016

INTERFACE COMPONENTS

• AX-HYKIA1-SWC interface

• AX-HYKIA1-SWC harness

• 16-pin harness with stripped leads

• Female 3.5mm connector with stripped leads

* Requires the AX-HYKIA-SPDIF (sold separately)

** Bristol Audio Systems not covered

† Non-ampliﬁed models only

* Without NAV

Visit AxxessInterfaces.com for more detailed information about the product and up-to-date

vehicle speciﬁc applications

NON-AMPLIFIED VEHICLES

Interface

22 Pin

16 Pin

Vehicle Connectors

8 Pin

SWC Jack

Red

White

AUX IN RETENTION

14 Pin

18 Pin

24 Pin

}

DO NOT USE

USB RETENTION

Back-up Camera

Camera Power 6 Volt

Camera Ground

Back-up Camera

USB Cable

16 Pin

Connect for

Non-Amplified Vehicles

Black - Ground

Yellow - Constant

Blue - Power antenna

Orange - Illumination

Blue/Pink - SVS

Green - Left Rear (+)

Green/Black - Left Rear (-)

Purple - Right Rear (+)

Purple/Black - Left Rear

(-)

(A) DO NOT USE

(B) DO NOT USE

White - Left Front (+)

White/Black - Left Front (-)

Gr ont (+)ay - Right Fr

Gray/Black - Right Front (-)

Red - Accessory

Blue/White - Amp turn-on

Brown - Mute

Gr eeen/Purple - Revers

Light Green - Parking Brake

Gr eeen/Purple - Revers

Light Green - Parking Brake

Vehicles with Bristol Audio

systems are not covered.

IMPORTANT!
