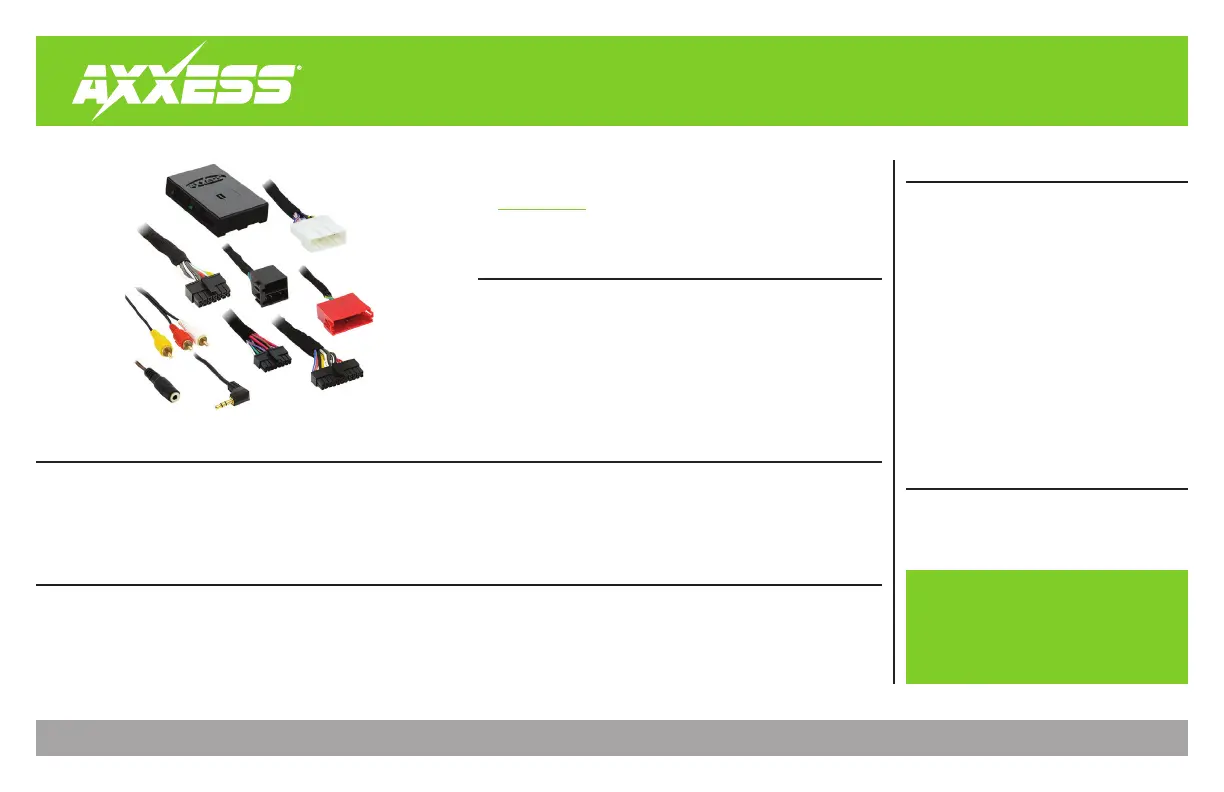

Side 1/9

AX-HYKIA4-SWC

I N S TA L L A T I O N I N S T R U C T I O N S

Attention! Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties • Small ﬂat-blade screwdriver

TABLE OF CONTENTS

Connections ............................................................2

Installation .............................................................3

Programming .........................................................3

Audio Level Adjustment ........................................3

Steering Wheel Control Settings

- L.E.D. feedback ....................................................4

- Changing radio type ...........................................4

- Remapping the steering wheel control buttons 5-6

- Dual assignment instructions (long button press) .6-7

Troubleshooting .....................................................7

Hyundai/Kia Data Interface with SWC 2010-2013

APPLICATIONS

• Provides NAV outputs (park

brake, reverse, speed sense)

• Retains audio controls on the

steering wheel

• Designed for ampliﬁed models

• Retains the factory AUX-IN jack

• Retains the factory backup

camera

• Retains balance

• Micro-B USB updatable

Hyundai

Tucson † 2010-2013

Kia

Forte ‡ 2010-2013

Sorento † 2011-2013

• AX-HYKIA4-SWC interface • AX-HYKIA4-SWC harness

• AX-HYKIA-SPDIF interface • 16-pin harness with stripped leads

• Female 3.5mm connector with stripped leads

Visit AxxessInterfaces.com for more detailed information about the product and up-to-date

vehicle speciﬁc applications

† With NAV

‡ With auto climate control or NAV

CONNECTIONS

From the 16-pin harness with stripped leads to the aftermarket radio:

• Connect the wire to the accessory wire.Red

• Connect the wire to the amp turn-on wire.Blue/White

• Connect the wire to the right front positive speaker output.Gray

• Connect the Gray/Black wire to the right front negative speaker output.

• Connect the wire to the left front positive speaker output.White

• Connect the wire to the left front negative speaker output.White/Black

The following (1) wire is only for a multimedia/navigation radio that requires this wire.

• Connect the wire to the parking brake wire.Light Green

• Tape off and disregard the following (8) wires, they will not be used in this application:

Blue/Pink Brown Green Green/Black Green/Purple Orange/White Purple Purple/Black, , , , , , ,

From the AX-HYKIA4-SWC harness to the aftermarket radio:

• Connect the wire to the ground wire.Black

• Connect the Yellow wire to the battery wire.

• Connect the wire to the power antenna wire.Blue

• If the aftermarket radio has an illumination wire, connect the Orange wire to it.

The following (2) wires are only for a multimedia/navigation radio that requires these wires.

• Connect the wire to the VSS/speed sense wire.Blue/Pink

• Connect the wire to the reverse wire.Green/Purple

• If the factory AUX-IN jack is desired to be retained, connect the & RCA jacks to the Red White

audio AUX-IN jacks.

• Connect the Yellow RCA jack to the backup camera input.

3.5mm jack steering wheel control retention:

The 3.5mm jack is to be used to retain audio controls on the steering wheel control.

•

For the radios listed below:

Connect the

female 3.5mm connector with stripped leads

, to the male

3.5mm SWC jack from the

AX-HYKIA4-SWC harness

Any remaining wires tape off and disregard

• Eclipse: Connect the steering wheel control wire, normally Brown, to the Brown/White

wire from the connector. Then connect the remaining steering wheel control wire,

normally , to the Brown/White Brown wire from the connector.

• Metra OE: Connect the steering wheel control Key 1 wire to the (Gray) Brown wire.

• Kenwood or select JVC with a steering wheel control wire: Connect the Blue/Yellow

wire to the wire.Brown

If the Note: Kenwood radio auto detects as a JVC, manually set the radio type to

Kenwood Changing Radio Type. See the instructions under .

• Connect the steering wheel control SWC-2 wire from the radio to the XITE: Brown wire.

• Parrot Asteroid Smart or Tablet:

Connect the 3.5mm jack to the AX-SWC-PARROT (sold

separately). Then connect the 4-pin connector from the AX-SWC-PARROT to the radio

The radio must be updated to rev. 2.1.4 or higher software.Note:

• Universal “2 or 3 wire” radio: Connect the steering wheel control wire, referred to as

Key-A or SWC-1, to the wire from the connector. Then connect the remaining Brown

steering wheel control wire, referred to as Key-B or SWC-2, to the wire Brown/White

from the connector. If the radio comes with a third wire for ground, disregard this wire.

Note:

After the interface has been programmed to the vehicle, refer to the manual provided with

the radio for assigning the SWC buttons. Contact the radio manufacturer for more information

• For all other radios: Connect the 3.5mm jack from the

AX-HYKIA4-SWC harness

to the jack

on the radio designated for an external steering wheel control interface. Please refer to the

aftermarket radios manual if in doubt as to where the 3.5mm jack goes to.
