120 E5000
Revision 07/23/15
1
SPDT Relay

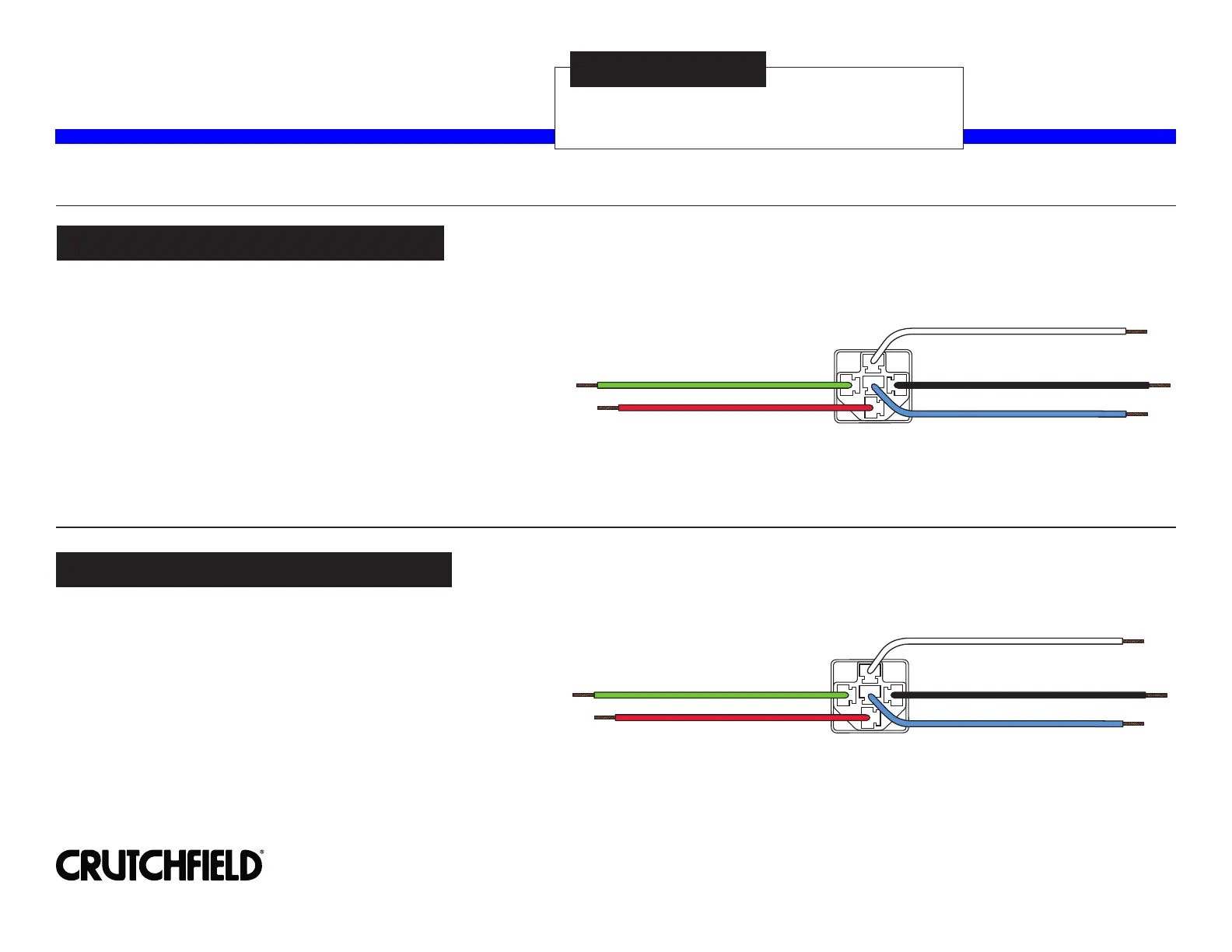

APPLICATION: RELAY TURN-ON
The most popular use for the SPDT (single-pole, double-throw) relay
is high current on/off switching (for devices that draw up to 30 amps).
For example, you could connect a neon light tube to the relay, along
with the amplifier turn-on lead from your in-dash receiver. Then the
neon light tube will turn on whenever you turn on your in-dash
receiver.
You need a constant (unswitched) source of 12 volt power for the
relay’s red wire. You can tap into your fuse panel or run a wire directly
from your positive battery terminal. If you run a wire to your battery,
we recommend installing a 30 amp fuse in line, close to the battery
connection.
APPLICATION: RELAY TURN-OFF
Another popular application is to use the relay to turn off or disable a
device. The diagram shows using the relay in conjunction with a car
security system to disable your car’s starter system.
The diagram shows how you would use a relay with a car security
system to disable the starter when the alarm is triggered. To do this,
you cut the low-current trigger wire that runs between the ignition
switch and the starter solenoid. Connect the red and green wires to
the ignition key side of the starter trigger wire. Connect the blue wire
to the solenoid side of the starter trigger wire.
About the relay: A relay is a switch controlled by a voltage input instead of a manual action.
By sending current through the relay, you can turn a device on or off without touching the device.
IMPORTANT
Before starting, compare items on your invoice with items
received. Thoroughly check packing materials. If an item
is missing, please call Crutchfield at 1-888-955-6000.
Copyright 2015 Crutchfield Corporation
Make wiring connections following instructions on page 3.
Make wiring connections following instructions on page 3.
Green (86) - Connect to a positive switched
power source, such as the amplifier turn-on
lead or power antenna lead from you in-dash
receiver.
Red (30) - Unswitched 12 volt power source
White (87) - Connect to positive lead of light
tube or other device to be turned on.
Black (85) - Connect to chassis ground. Also
connect negative lead of device to ground.
Blue (87a) - Not used (tape off)
Tape off any unused wires.
Green (86) - Connect to key side of starter
trigger wire (along with red wire)
Red (30) - Connect to key side of starter
trigger wire (along with green wire)
White (87) - Not used (tape off)
Black (85) - Connect to starter-disable lead
from securing system (negative trigger)
Blue (87a) - Connect to solenoid side of
starter wire
Tape off any unused wires.
*120E5000*
120 E5000
2
SPDT Relay

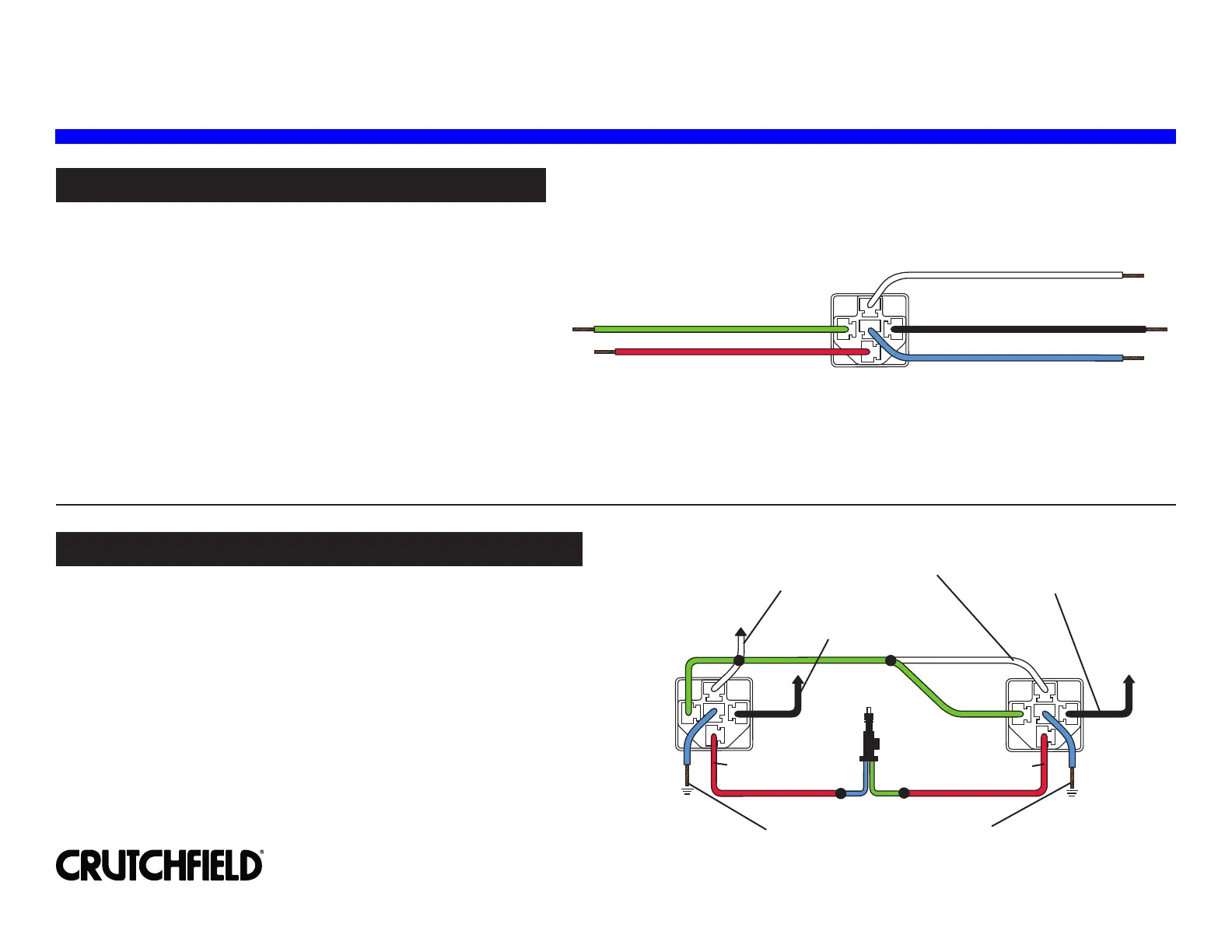

APPLICATION: REMOTE TRUNK RELEASE
In this application, you use the remote control output from your car
security system to open your trunk without the key. You must have
an existing power-assisted trunk release switch in your vehicle.
You need a constant (unswitched) source of 12 volt power for the
relay’s green wire. You can tap into your fuse panel or run a wire
directly to your positive battery terminal. If you run a wire to your
battery, we recommend installing a 30 amp fuse in line, close to
the battery connection.
If your trunk switch doesn’t work unless the key is on, connect the
red (30) wire together with the green (86) wire to the unswitched 12
volt power source and connect the white (87) wire to the output side
of the trunk release switch.
APPLICATION: POWER DOOR LOCK SYSTEM
To install aftermarket power door locks and activate them from your
security system remote control, you need an “actuator” for each door
and two relays.
You need a constant (unswitched) source of 12 volt power for the
relay’s green and white wires. You can tap into your fuse panel or
run a wire directly to your positive battery terminal. If you run a wire
to your battery, we recommend installing a 30 amp fuse in line, close
to the battery connection.
= Indicates wire splice
Copyright 2015 Crutchfield Corporation
Make wiring connections following instructions on page 3.
Green (86) - Unswitched 12 Volt power source
White (87) - Connect to one side of your
existing trunk release switch (red wire goes
to the other side of the switch)
Black (85) - Connect to remote output lead
from your security system
Blue (87a) - Not used (tape off)
Tape off any unused wires.
White (87) - Unswitched 12
volt power source
Black (85) - UNLOCK output from
security system (negative trigger)
Red (30) - Connect to
blue actuator wire
Red (30) - Connect to
green actuator wire
Blue (87a) - Connect to chassis ground
Black (85) - LOCK output from
security system (negative trigger)
Tape off any unused wires.
Make wiring connections following instructions on page 3.
