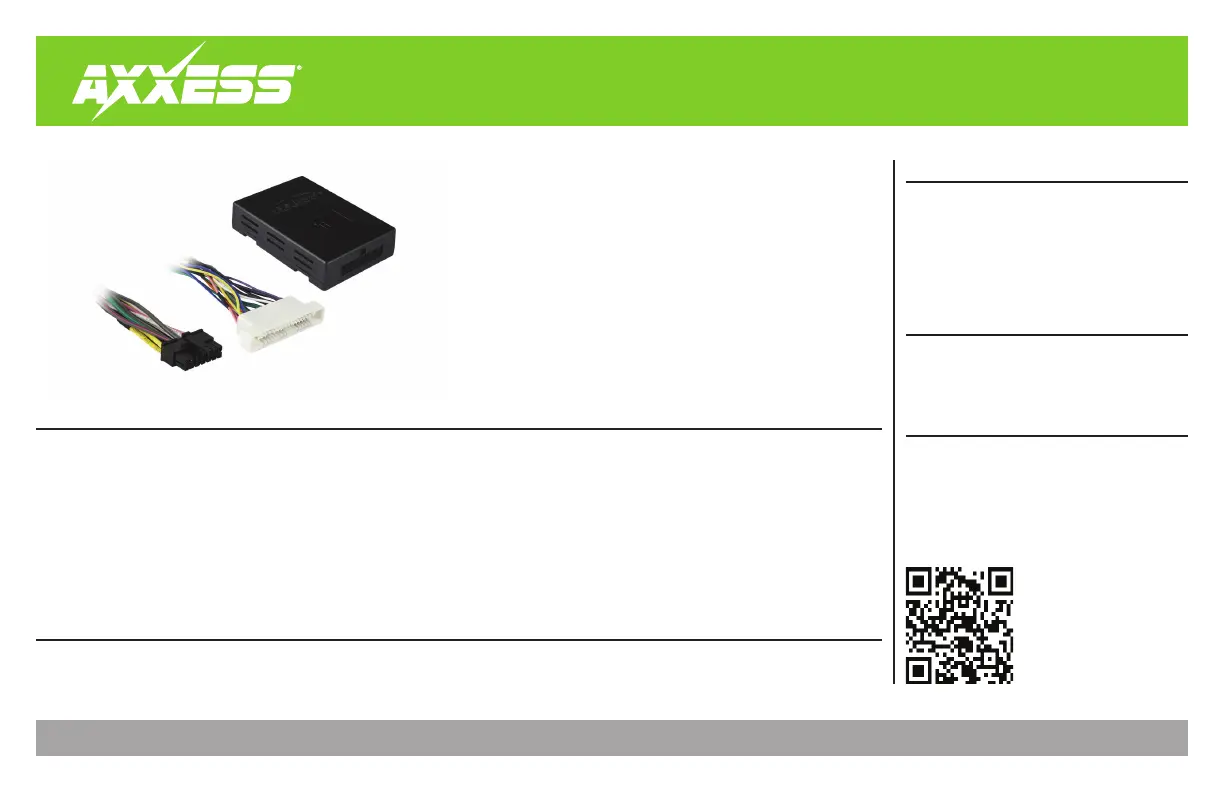

GMOS-05

I N S T A L L A T I O N I N S T R U C T I O N S

Product Info

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties • Multimeter • Small ﬂat-blade screwdriver

TABLE OF CONTENTS

Connections ............................................................2

Installation .............................................................3

Programming .........................................................3

Adjustments ...........................................................3

GM Dock n’ Lock Data Interface

2000-2005

APPLICATIONS

• Provides accessory power (12-volt 10-amp)

• Retains R.A.P. (retained accessory power)

• Provides NAV outputs (parking brake, reverse, speed sense)

• Retains chimes to the factory speaker

• Adjustable chime level

• Retains OnStar / OE Bluetooth

• Adjustable OnStar level

•

Designed for non-ampliﬁed models, or when bypassing a factory amp *

• Retains balance and fade

• USB-CAB updatable (sold separately)

Buick

LeSabre 2000-2005

Oldsmobile

Aurora 2001-2003

Pontiac

Bonneville 2000-2005

• GMOS-05 interface • GMOS-05 harness

• 16-pin harness with stripped leads

* If the vehicle is ampliﬁed, either use the GMOS-09 interface, or bypass the ampliﬁer. If bypassing the

ampliﬁer, follow the “Axxess Interface Amp Bypass Schematic” online.

CONNECTIONS

From the 16-pin harness with stripped leads to the aftermarket radio:

• Connect the wire to the accessory wire.Red

• If the aftermarket radio has an illumination wire, connect the Orange/White wire to it.

• If the aftermarket radio has a mute wire, connect the wire to it. If the mute wire is Brown

not connected, the radio will turn off when OnStar is activated.

• Connect the wire to the right front positive speaker output.Gray

• Connect the Gray/Black wire to the right front negative speaker output.

• Connect the wire to the left front positive speaker output.White

• Connect the wire to the left front negative speaker output.White/Black

The following (3) wires are only for multimedia/navigation radios that require these wires.

• Connect the wire to the VSS/speed sense wire.Blue/Pink

• Connect the wire to the reverse wire.Green/Purple

• Connect the wire to the parking brake wire. Light Green

From the GMOS-05 harness to the aftermarket radio:

• Connect the wire to the ground wire.Black

• Connect the Yellow wire to the battery wire.

• Connect the wire to the power antenna wire.Blue

• Connect the wire to the left rear positive speaker output.Green

• Connect the wire to the left rear negative speaker output.Green/Black

• Connect the wire to the right rear positive speaker output.Purple

• Connect the wire to the right rear negative speaker output.Purple/Black

• The Black/Yellow wire is used for OnStar level adjustment for models that do not come

equipped with steering wheel controls. See the OnStar level Adjustment section for further

instructions.

• Tape off and disregard the following (3) wires, they will not be used in this application:

Orange Blue/White (qty. 2) ,
