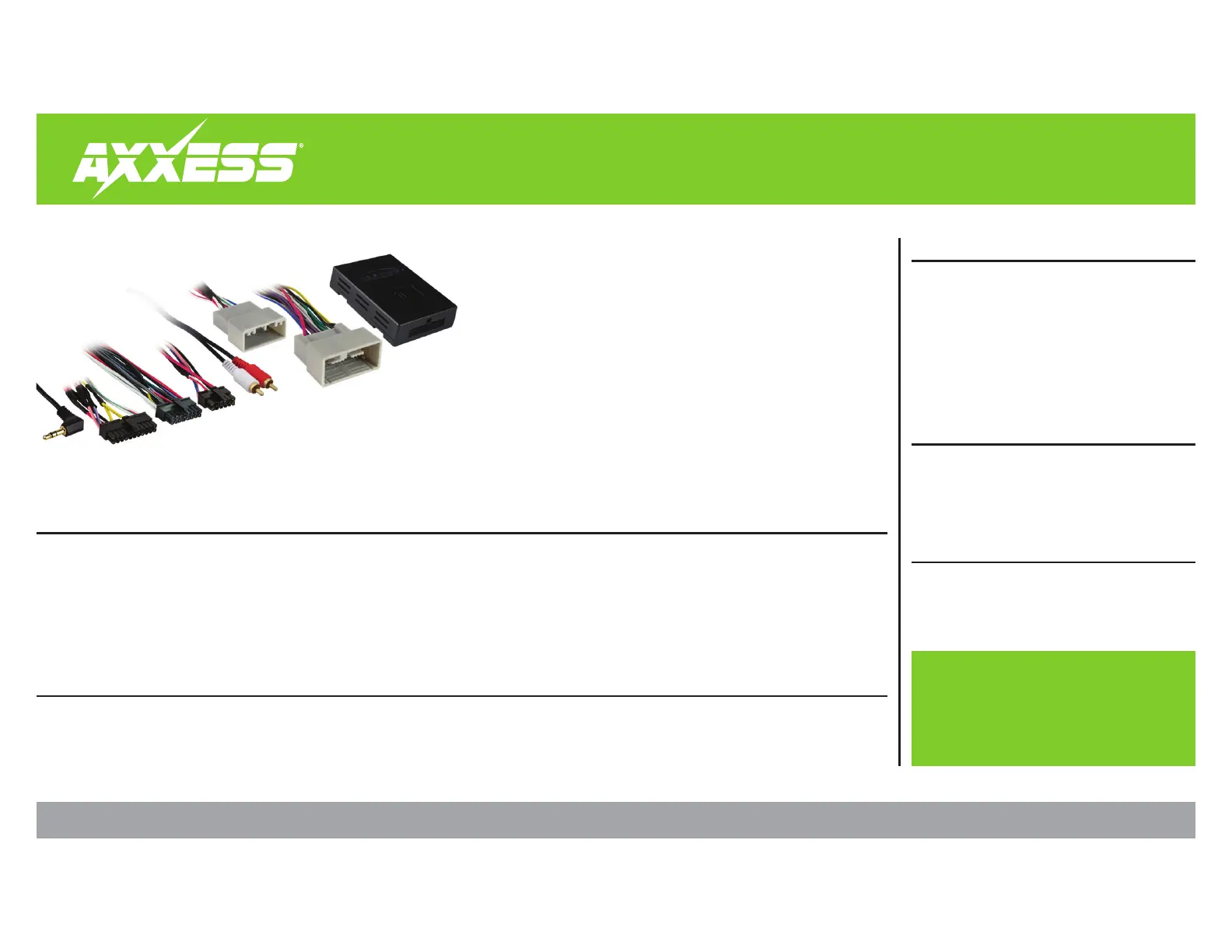

Side 1/4

CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

HDCC-01

I N S TA L L A T I O N I N S T R U C T I O N S

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Small ﬂat-blade

screwdriver • Tape • Wire cutter • Zip ties

TABLE OF CONTENTS

Connections to be made .......................................2

Installing the HDCC-01............................................3

Programming the HDCC-01 ....................................3

Setting the factory clock .......................................3

Troubleshooting .....................................................3

Honda Clock Retention 2012-2014

APPLICATIONS

• Provides accessory power (12-volt 10-amp)

• Can be used in non-ampliﬁed, or ampliﬁed models

• Provides NAV outputs (parking brake, reverse, speed sense)

• ASWC-1 harness included (ASWC-1 sold separately)

• Retains balance and fade

• Retains the ability to set the factory clock

• Retains the factory AUX-IN jack

• Micro “B” USB updatable

• HDCC-01 interface • HDCC-01 harness

• 8-pin subwoofer harness

• 16-pin harness with stripped leads

HONDA

Civic * (without NAV) 2013 CR-V (without NAV) 2012-2014

* All trims except LX

CONNECTIONS TO BE MADE

From the 16-pin harness with stripped leads to the aftermarket radio:

• Connect the Red wire to the accessory wire.

• Connect the Orange/White wire to the illumination wire. If the aftermarket radio does not

have an illumination wire, tape it off and disregard it.

• Tape off and disregard the Gray Gray/Black White White/Black Brown, , , , and wires, they

will not be used in this application.

The following (3) wires are only for multimedia/navigation radios that require these wires.

• Connect the Light Green wire to the parking brake wire (if applicable).

• Connect the Blue/Pink wire to the VSS or speed sense wire (if applicable).

• Connect the Green/Purple wire to the reverse wire (if applicable).

From the HDCC-01 harness to the aftermarket radio:

• Connect the Black wire to the ground wire.

• Connect the Yellow wire to the battery wire.

• If the vehicle is equipped with a factory ampliﬁer, connect the Blue/White wire to amp

turn-on wire.

• If the vehicle is equipped with a factory AUX-IN jack and desired to be retained, connect the

Red & RCA jacks to the AUX-IN jack.White

For the following (8) wires, if the vehicle does not have a factory ampliﬁer, cut off the RCA jacks

to expose the speaker wires.

• Connect the White wire to the left front positive speaker output.

• Connect the White/Black wire to the left front negative speaker output.

• Connect the Gray wire to the right front positive speaker output.

• Connect the Gray/Black wire to the right front negative speaker output.

• Connect the Green wire to the left rear positive speaker output.

• Connect the Green/Black wire to the left rear negative speaker output.

• Connect the Purple wire to the right rear positive speaker output.

• Connect the Purple/Black wire to the right rear negative speaker output.

From the 8-pin subwoofer harness to the aftermarket radio (ampliﬁed models only):

• Connect the White RCA to the subwoofer output.

12-pin pre-wired ASWC-1 harness:

• This harness is to be used along with the optional ASWC-1 (not included) to retain steering

wheel audio controls. If the ASWC-1 is not being used, disregard this harness. If it will be

used, please refer to the ASWC-1 instructions for radio connections and programming.

Disregard the harness that comes with the ASWC-1.

• For the CR-V 2014: If the vehicle is equipped with Bluetooth controls, and desired to be

retained, connect the Gray/Blue wire to the Yellow wire (pin-15) in the 32-pin harness at the

factory Bluetooth module located in the center of the dash, below the radio.
