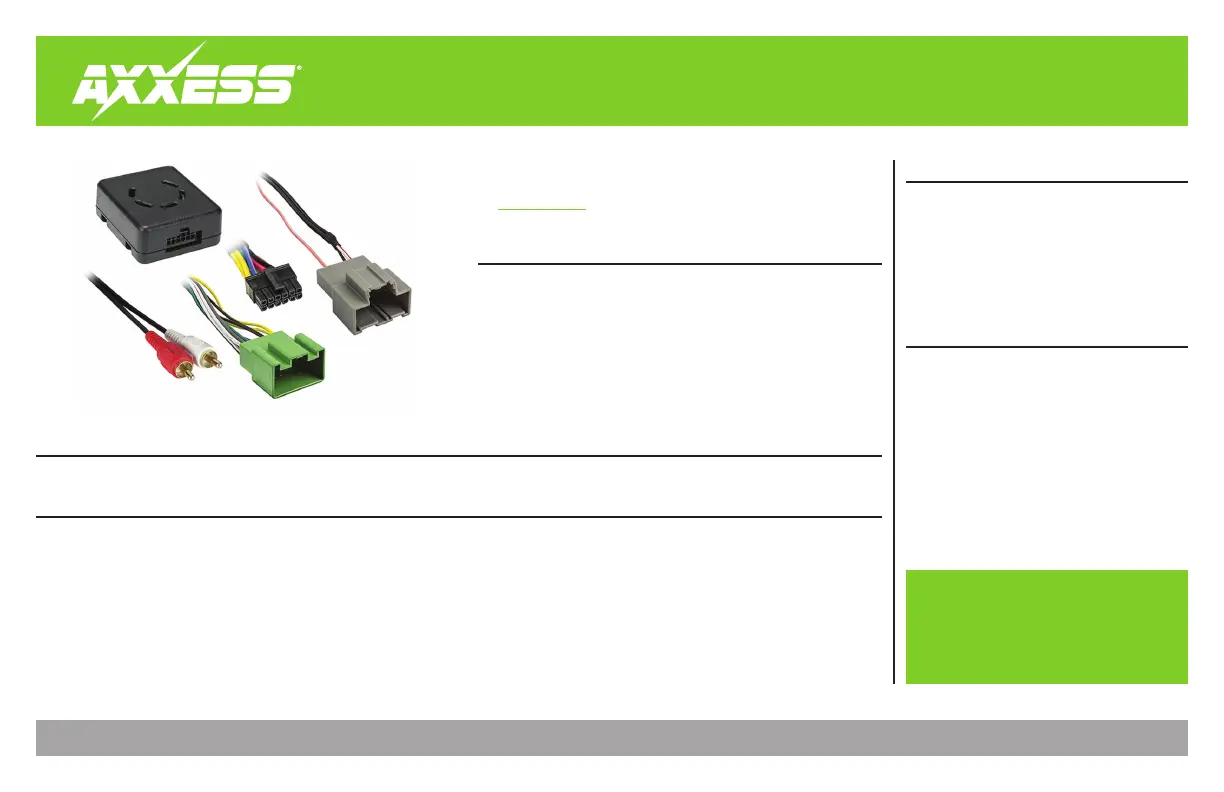

LC-GMRC-LAN-09

I N S TA L L AT I O N I N S T R U C T I O N S

Attention! Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

INTERFACE COMPONENTS

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties

TABLE OF CONTENTS

Connections ............................................................2

Installation .............................................................3

Programming .........................................................3

APPLICATIONS

Chevrolet

Colorado 2015-2018(1)

Equinox 2018(1)

Malibu 2016-2018(2)

Silverado 2015-2018(3)

Silverado 1500 2014(3)

Suburban 2015-up

Tahoe 2015-up

GMC

Canyon 2015-2018(1)

Sierra 2015-2018(3)

Sierra 1500 2014(3)

Yukon / Yukon XL 2015-up

• LC-GMRC-LAN-09 interface • LC-GMRC-LAN-09 harness

• (1) • (2) With RPO code I05 or I06 With radio code IP1 With radio code IO3, IO5, or IO6• (3)

The RPO code is located in the Service Parts Identiﬁcation sticker

INTERFACE FEATURES

GM Data Interface 2014-up

•

Provides accessory power (10-amp)

• Retains R.A.P. (retained

accessory power)

• Provides wires for multimedia

radios (park brake, reverse,

speed sense)

• Used in non-ampliﬁed models, or

when bypassing a factory amp

•

Designed for models without

OnStar

• Retains all warning chimes

• High level speaker input

• Retains balance and fade

• Provides illumination output

• Micro-B USB updatable

Visit AxxessInterfaces.com for more detailed information about the product and up-to-date

vehicle speciﬁc applications

CONNECTIONS

From the LC-GMRC-LAN-09 harness to the aftermarket radio:

• Connect the wire to the ground wire.Black

• Connect the Yellow wire to the battery wire.

• Connect the wire to the accessory wire.Red

• If retaining the factory AUX-IN jack, connect the & RCA jacks to the AUX input.Red White

• If the aftermarket radio has an illumination wire, connect the wire to it.Orange

• Connect the wire to the left front positive speaker output.White

• Connect the wire to the left front negative speaker output.White/Black

• Connect the wire to the right front positive speaker output.Gray

• Connect the Gray/Black wire to the right front negative speaker output.

• Connect the wire to the left rear positive speaker output.Green

• Connect the wire to the left rear negative speaker output.Green/Black

• Connect the wire to the right rear positive speaker output.Purple

• Connect the wire to the right rear negative speaker output.Purple/Black

The following (3) wires are only for multimedia/navigation radios that require these wires.

• Connect the wire to the VSS/speed sense wire.Blue/Pink

• Connect the wire to the reverse wire.Green/Purple

• Connect the wire to the parking brake wire.Light Green
