PR-LOC2.2-LD

I N S TA L L AT I O N I N S T R U C T I O N S

TABLE OF CONTENTS

Quick Start Guide

Things to Know .................................................2

Connections .......................................................2

Gain setup

Basic setup.........................................................3

Advanced Setup ................................................3

Feature Breakdowns ..............................................4

Quick Reference .....................................................5

Diagram ..................................................................6

Speciﬁcations .........................................................7

Premium Active LOCs with Line Driver 2 IN - 2 OUT with Line Driver, Max Input 40v

TOOLS RECOMMENDED

• Digital Multi-meter

• Test Tones

Universal Premium LOC with Line Driver

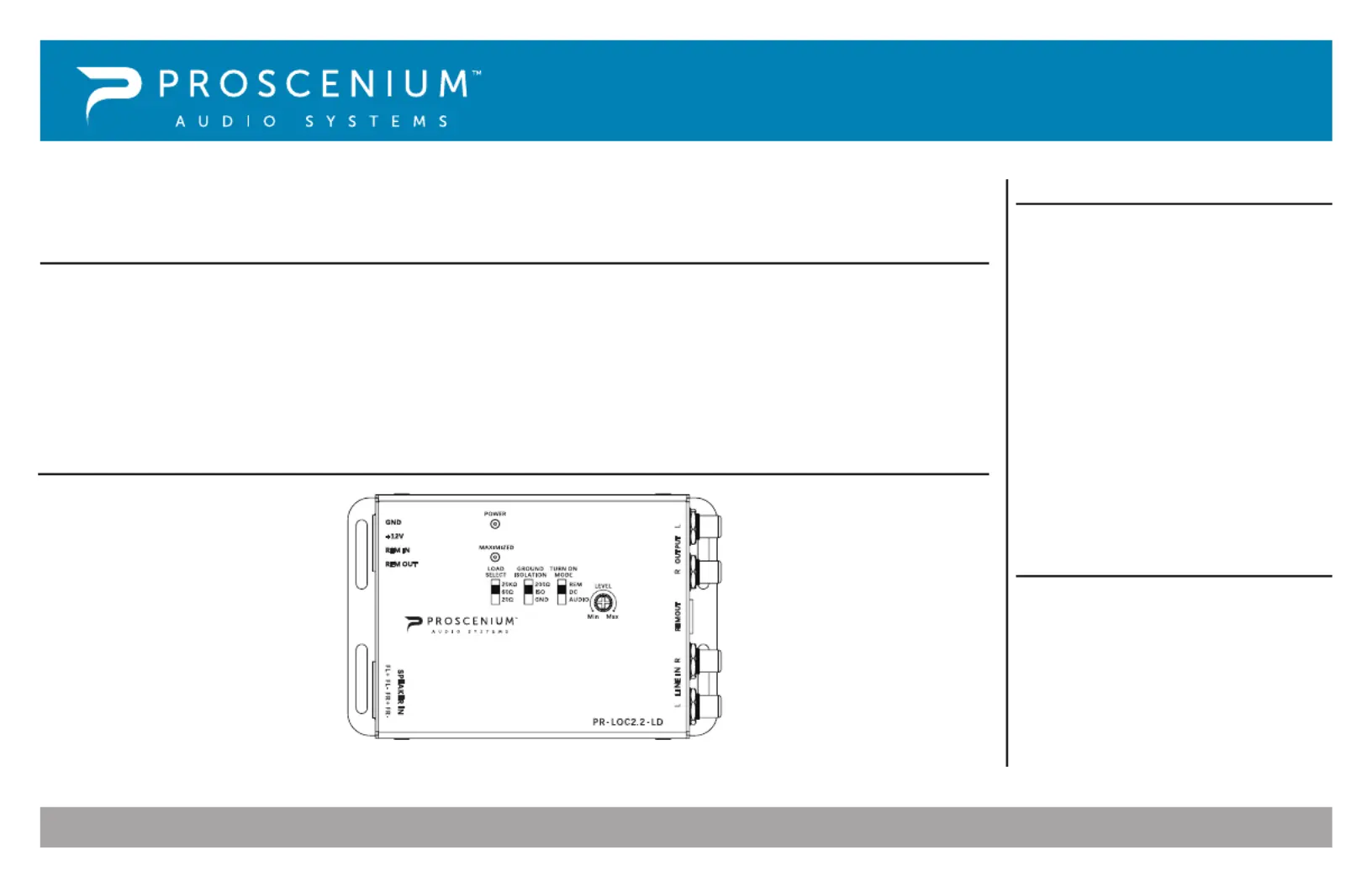

Proscenium’s PR-LOC2.2-LD is an LOC and line driver all-in-one package. This unit allows you to add aftermarket ampliﬁers to your factory system

easily. High level inputs mean you can tap right into your factory speaker wire for signal, and the built-in signal sensing turns the unit on without

the need to ﬁnd a factory accessory lead. In applications where a low level RCA output needs ampliﬁed the built in line driver is exactly what you

need to achieve the output you are looking for. It also provides you with a remote turn on output to your ampliﬁer.

Line Out Converter (LOC)

KIT COMPONENTS

THINGS TO KNOW

1. This is an active LOC and MUST have constant 12 volt and a good ground to operate properly.

Having a poor ground can induce noise into your system, use the same gauge wire as the

12 volt line.

2. Determine a suitable mounting location. Make sure you can access all controls and

connections.

3. When ready to mount your LOC check under your selected mounting location to make sure

it is clear of any wiring harnesses, fuel or brake lines or anything else that may affect the

vehicle safety.

QUICK START GUIDE

CONNECTIONS

1. Connect your 12 volt and ground wires to the terminals. 14-16 gauge wire is recommended.

2. By default the LOCs Turn On Mode DC Offset is set to . Other turn on options are available and

described in the Turn On Signal Feature Breakdown portion of this manual.

3. Connecting your can happen in a few different places based on your factory Speaker Input

system.

If your vehicle doesn’t have an OE ampliﬁer your best option is to use the speaker wires a.

located behind the radio. Your LOC only requires two inputs, we recommend a left

and right full range signal.

If your vehicle has an OE ampliﬁer your best option is to use the speaker wires on b.

the output side of your factory ampliﬁer, look for a full range signal.

4. If you have an RCA output from an aftermarket radio or a low level output from factory

equipment you can use the RCA to feed signal into the LOC, taking advantage of the LINE IN

built in . LINE DRIVER

5. Connect your RCAs. RCA’s are for the right channel. Red Black, Gray, or White are for the

left channels. An explanation of the RCAs and are described in the Main Output Bass Output

Feature Breakdown portion of this manual.

6. If the customer would like to control the Bass Level remotely the PR-RM-1 can be purchased

separately and plugs directly into the side of the LOC.
