Side 1/16

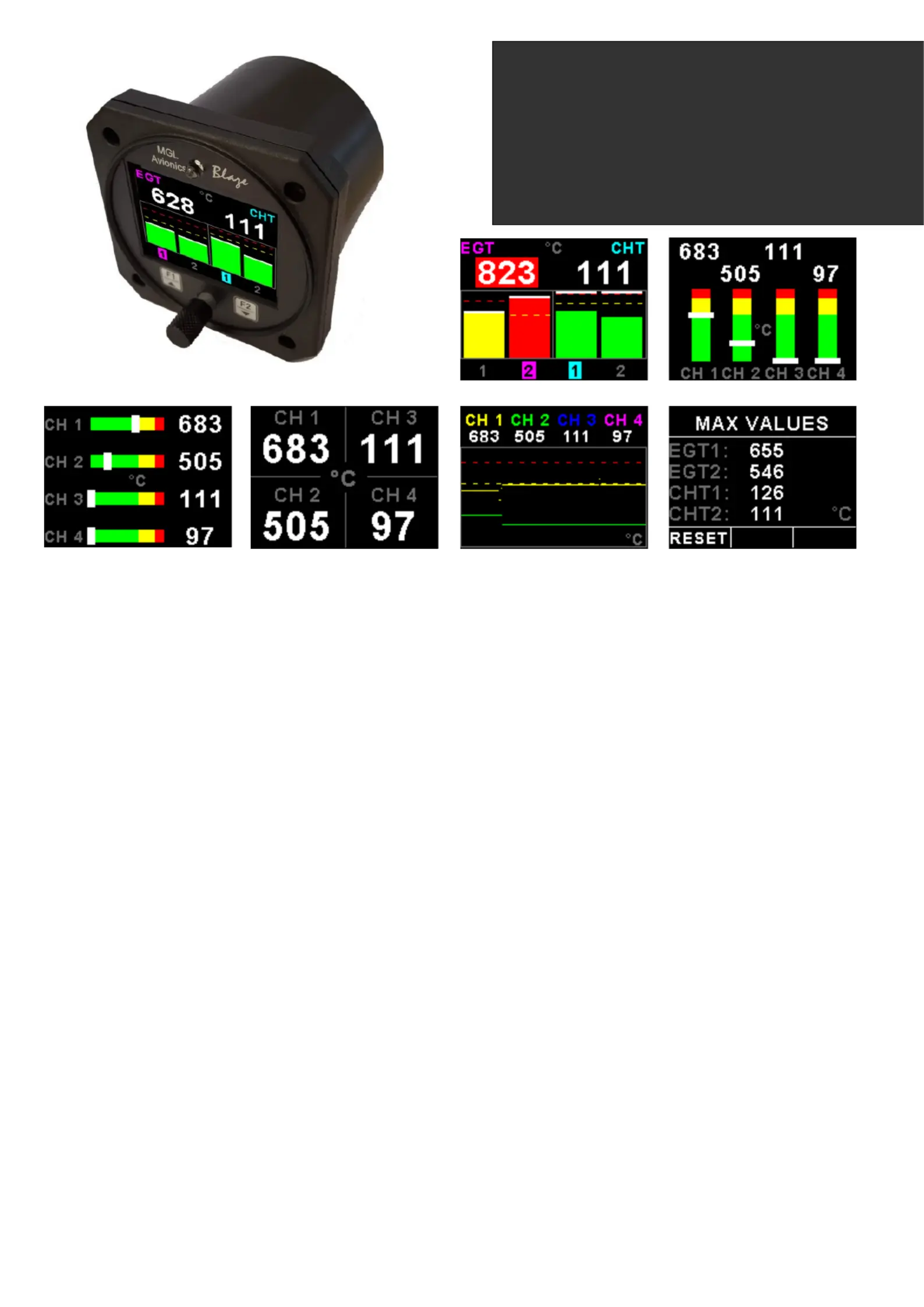

Introduction
The TC-5 is a 3 1/8” sunlight readable 4 channel thermocouple color display instrument. The TC-5 can be configured to
display up to 4 thermocouples.
The instrument can be configured for 5 different temperature display screens. The display can be configured to group
EGTs and CHTs to common settings or each thermocouple channel can be independently displayed with individual
programmable high alarm and probe type. The TC-5 also has a trend graph and maximum values display screen.
The TC-5’s high accuracy is due to its built in thermocouple linearization curves and cold junction compensation
techniques. Temperature probes can be common J, K or E type thermocouple probes as used in CHT and EGT senders.
Temperatures can be displayed in degrees Celsius or degrees Fahrenheit from -100ºC to 1200ºC (-148ºF to 2192ºF). The
TC-5 also features a built in engine leaning facility which allows the pilot to optimize the fuel mixture according to peak
EGT temperatures as well as a cruise mode facility to provide instant identification of changing EGT/CHT trends.
(Optional). This allows for easier installation as the RDAC unit is normally mounted in the engine compartment.
1 Features
•Large 2.6” high resolution 320x240, IPS (fully viewable in all directions), sunlight readable color LCD
display
• 5 different temperature display screens
• Supports J, K and E type thermocouple probes
• Temperatures can be displayed in ºC or ºF from -100ºC to 1200ºC (-148ºF to 2192ºF)
• High accuracy: Built in thermocouple linearization curves and cold junction compensation
• Records maximum temperatures reached for each channel
• Includes a trend graph display of each thermocouple channel
• Engine leaning function according to peak EGT temperatures
• Engine cruise mode to instantly identify changing EGT/CHT trends
• External RDAC (Remote Data Acquisition Computer) interfacing via the CAN bus (Optional)
• Standard 3 1/8” aircraft enclosure (can be front or rear mounted)
• The LED backlight can automatically adjust to the ambient light, or it can be manually adjusted in the
menu system
• Rotary control plus 2 independent buttons for easy menu navigation and user input
• An external output activates when a high alarm condition has been reached
• Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection
for harsh electrical environments
• 1 year limited warranty
Blaze TC-5
Four channel thermocouple
(EGT/CHT) indicator
Operating Manual – English 1.00
Blaze TC-5 Operating Manual Page 2

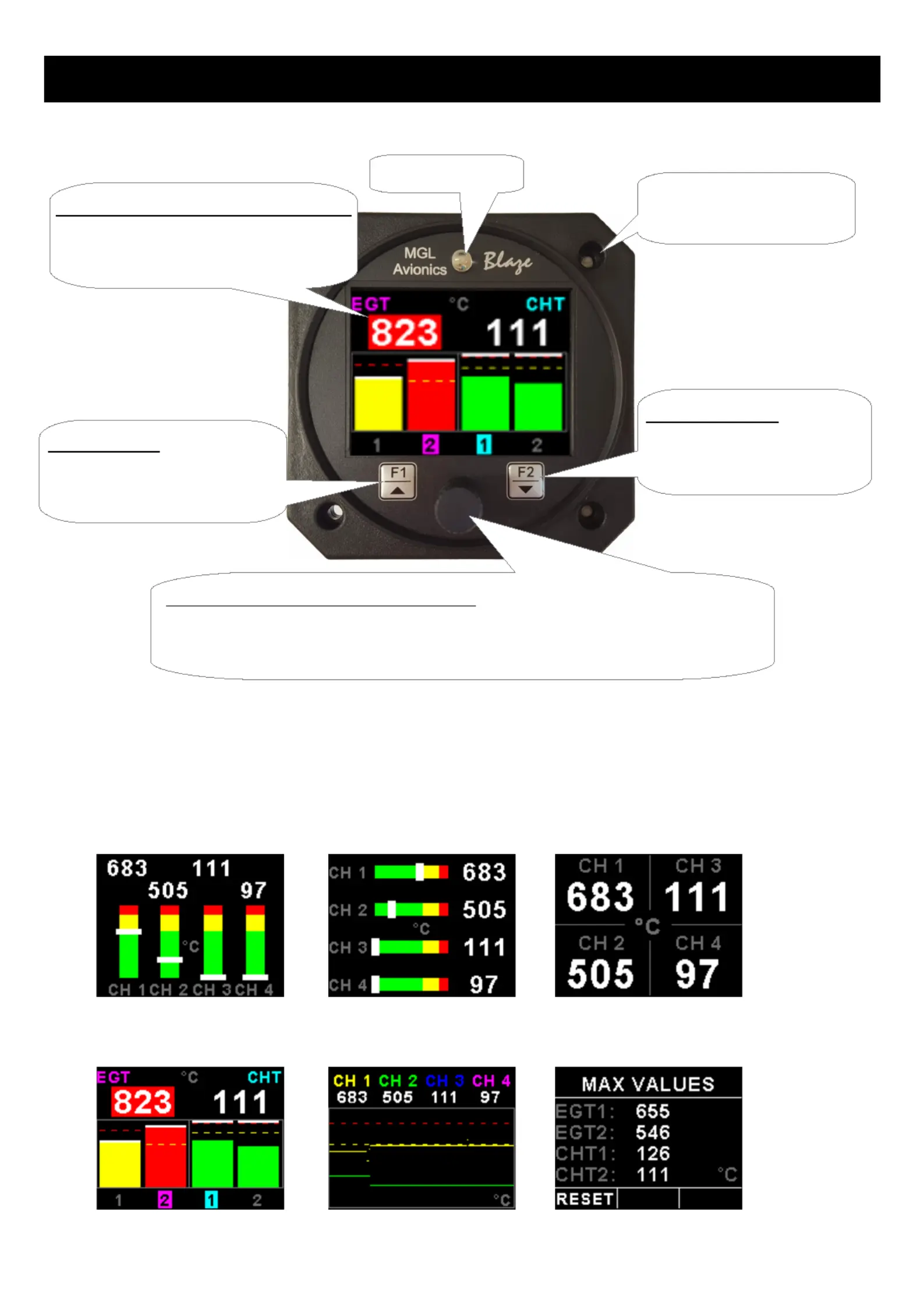

2 Layout
3 Main Displays
The TC-5 has 5 different temperature display screens. The main display screen can be selected in the “TC SETUP”
menu. The Trend graph and Max Values display can be selected by rotating the rotary control.
Vertical Display Horizontal Display Numeric Display
EGT/CHT Display Trend Graph Max Values
F2 / Down Button:
Menu System: Softkey button
Normal Display: Enable/disable
cruise mode
Sunlight readable color graphic display:
The backlight can automatically adjust
to the ambient light or it can be manually
adjusted in the menu system
Rotary Control (Up/Down) & Enter Button:
Press the rotary control during the normal display screens to access the menu system.
Rotate anti/clockwise for up/down menu scrolling. Rotate the rotary control during the
normal display mode to view the Trend Graph and Max Values display.
F1 / Up Button:
Menu System: Softkey button
Normal Display: Enable/disable
engine leaning mode
3 1/8” enclosure.
Can be front or rear mounted
Ambient light sensor
