Introduction
The RPM-1 is a 2 1/4” sunlight readable color display instrument providing two universal RPM inputs that is primarily
intended to measure engine and/or rotor RPM.
The display can be configured to display single or dual RPM or it can be configured to display engine and rotor RPM as
used in helicopters and gyroplanes.
The RPM-1 also has a maximum values display screen as well as a handy magneto check function to easy diagnose
magneto problems.
The RPM-1 includes a number of timers such as a Hobbs meter which can be set to the current engine time and is also
password protected, an engine running and flight timer as well as a programmable maintenance timer to schedule routine
engine maintenance.
The RPM-1 can also be interfaced via the CAN bus to an external RDAC unit (Remote Data Acquisition Unit). This allows
for easier installation as the RDAC unit is normally mounted in the engine compartment.
1 Features
•Large 1.8” high resolution 160x128, sunlight readable, wide viewing angle, 1000 cd/m2 TFT LCD display
• Single or dual RPM display screens
• Dedicated dual rotor / engine tachometer
• Includes a settable Hobbs meter which is password protected
• Includes an engine running and flight timer
• Includes a programmable maintenance timer for scheduled routine engine maintenance
• Includes a magneto check function
• Records maximum RPM reached for each channel
• External RDAC interfacing via the CAN bus
• Standard 2 1/4” aircraft enclosure (can be front or rear mounted)
• Rotary control plus 2 independent buttons for easy menu navigation and user input
• An external output activates when a high alarm condition has been reached
• Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection
for harsh electrical environments
• 1 year limited warranty
Vega RPM-1
Universal Engine / Rotor RPM Indicator
Operating Manual – English 1.00
Vega RPM-1 Operating Manual Page 2

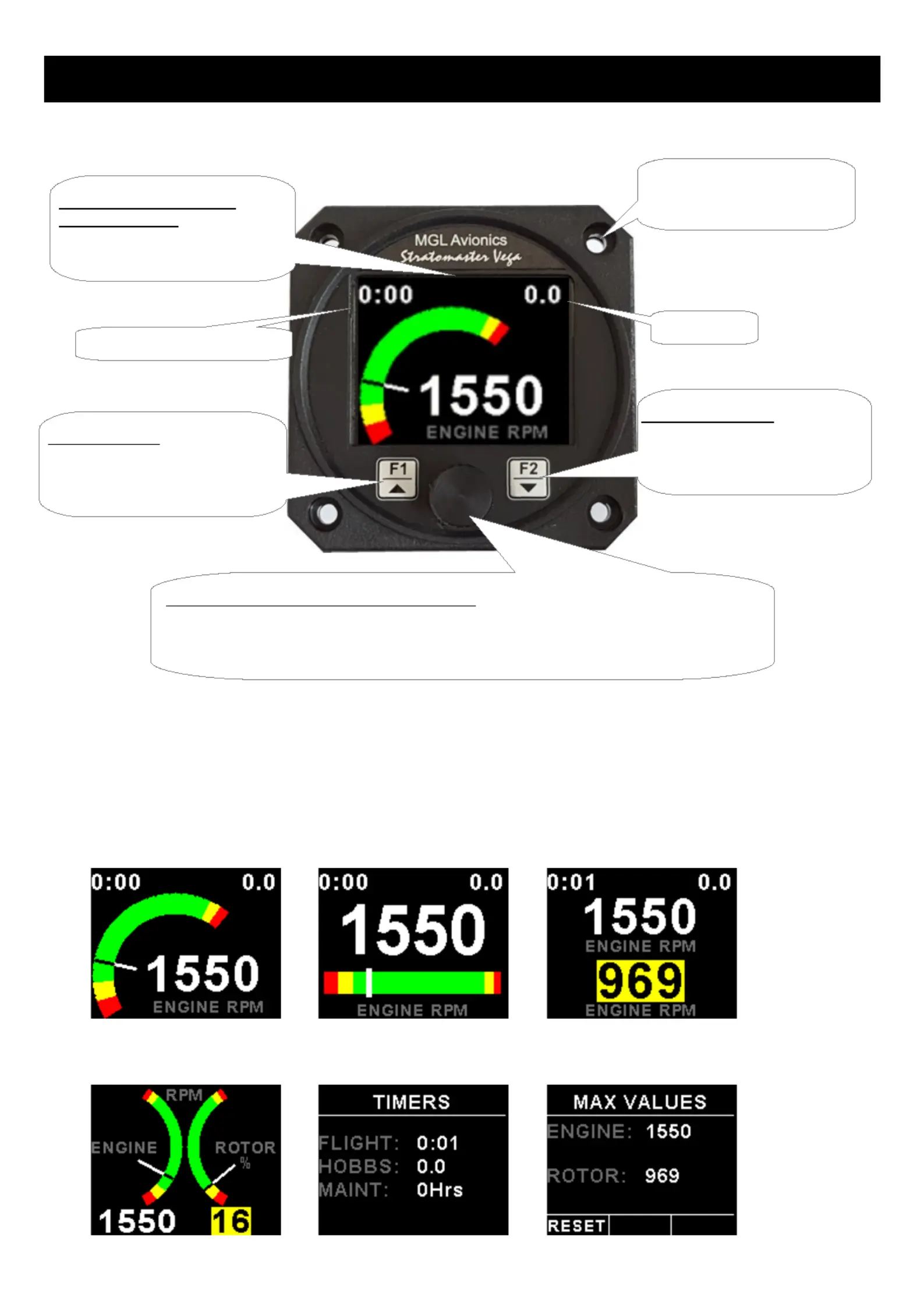

2 RPM-1 Layout
3 Main Displays
The RPM-1 can be setup to display single or dual RPM. The main display screen can be selected in the “RPM SETUP”
menu. The Timers display and Max Values display can be selected by rotating the rotary control during the normal
display.

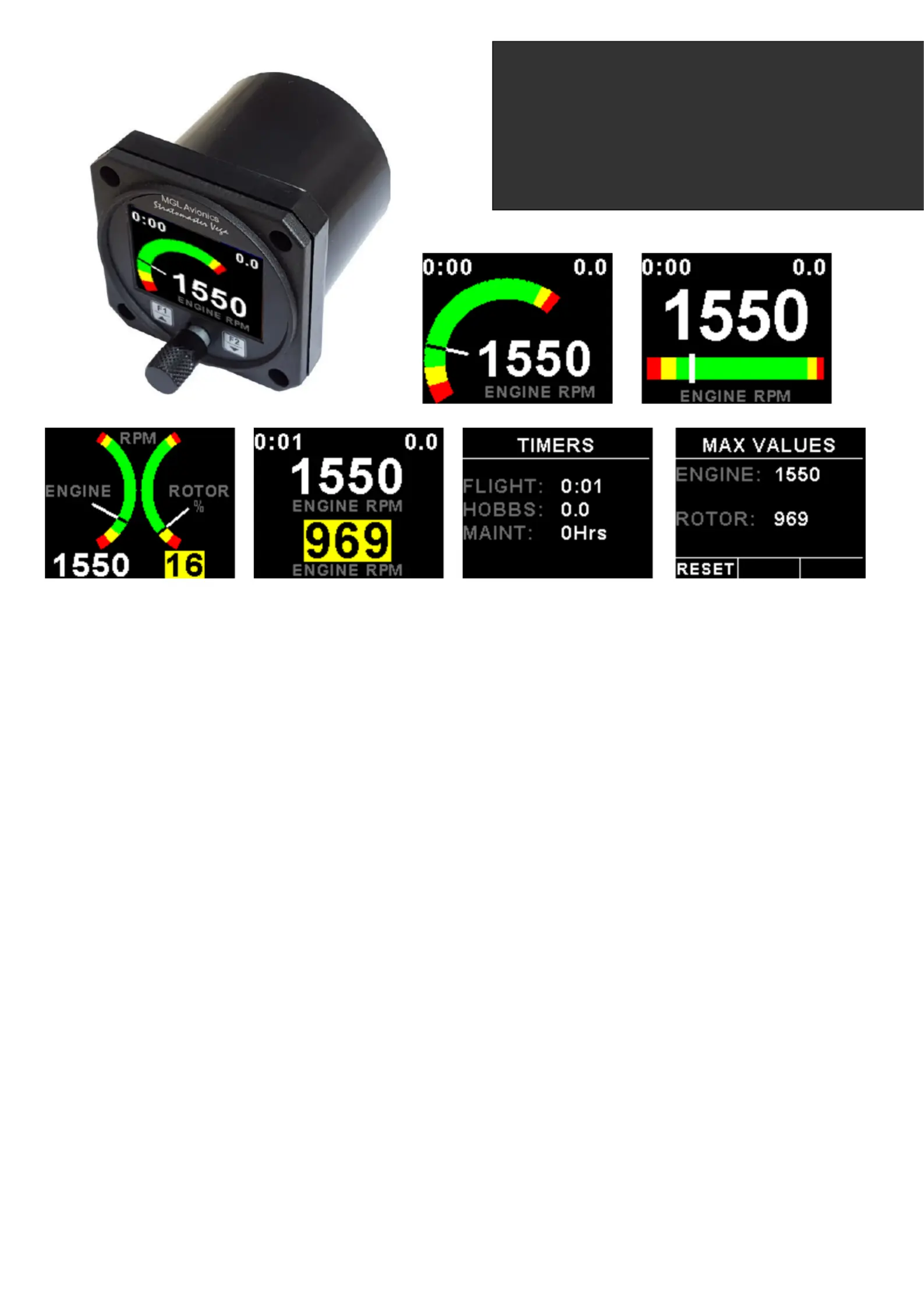

Single - Arc Single - Bar Dual RPM
Engine / Rotor Timers Display Max Values
F2 / Down Button:
Menu System: Softkey button
Normal Display: Enable magneto
check function
Sunlight readable color
graphic display:
Backlight can be adjusted in the
menu system
Rotary Control (Up/Down) & Enter Button:
Press the rotary control during the normal display screens to access the menu system.
Rotate anti/clockwise for up/down menu scrolling. Rotate the rotary control during the
normal display mode to view the Timers and Max Values display.
F1 / Up Button:
Menu System: Softkey button
Normal Display: Start / Stop the
flight timer (Manual flight only)
2 1/4” enclosure.
Can be front or rear mounted
Duration of flight since take-off
Hobbs Meter
