BGR SERIES

Cable Chases

installation instructions

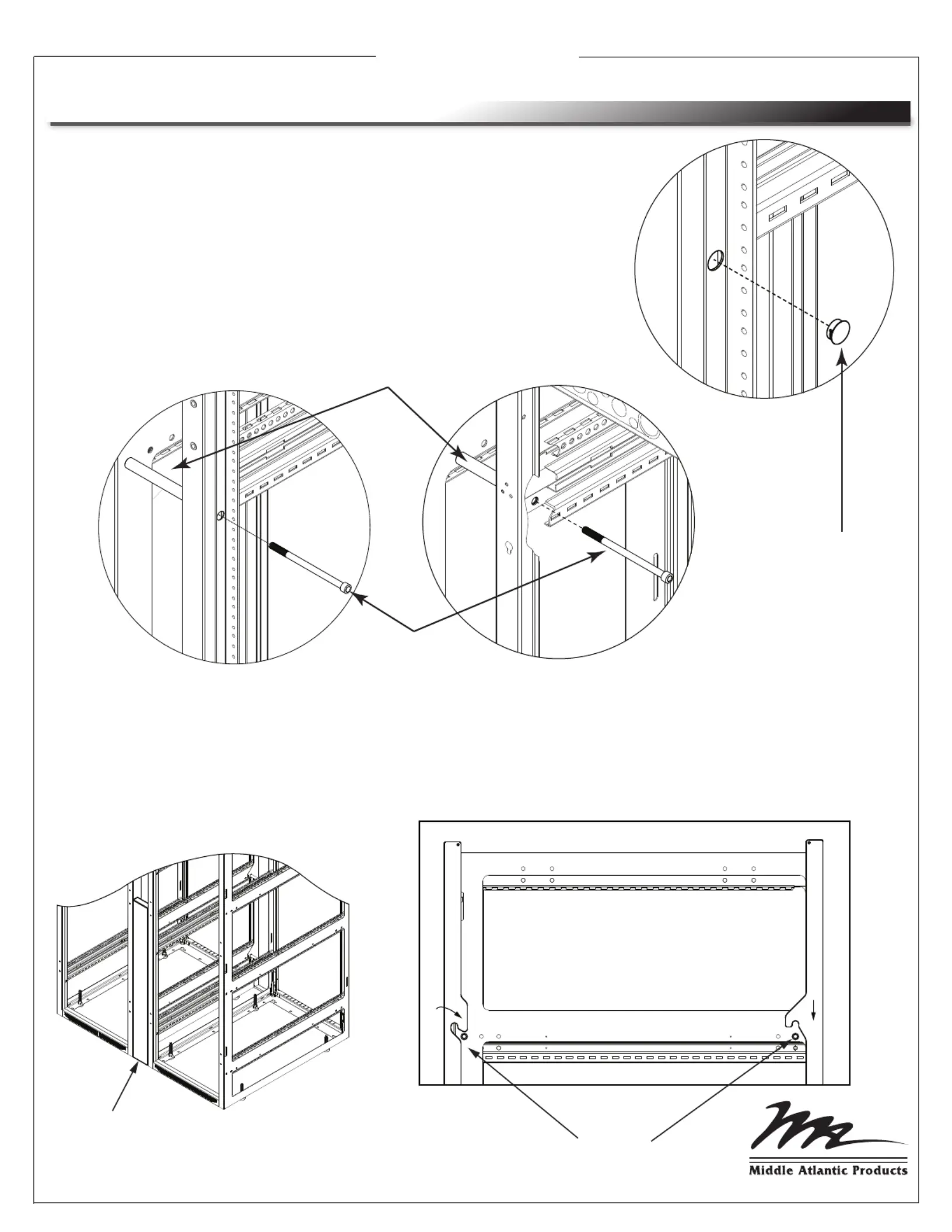

3) Install cable chase bottoms onto spacers located at the front and rear of joined racks. Install front

and rear tops once bottoms are in place. (FIGURE C)

NOTE: Cable chase markings will identify chase and proper orientation. (FIGURE C)

1) Remove plastic caps from racks. (FIGURE A)

2) Install spacers between racks at the front and rear

using supplied bolts (four places each). Front and rear

spacers are installed at the first hole position as shown.

(FIGURE B)

FRONT TOP

REAR TOP

Spacers

Front of Rack

Rear of Rack

FIGURE A

Front Cable Chase Rear Cable Chase

INSTALLATION (41SP/45SP SIZES)

FIGURE B

FIGURE C

Spacer

I-00484 Rev B

Plastic

Cap

Bolts

4) Reinstall plastic caps (extras provided).

Bottoms do not have handles

INSTALLATION (38SP SIZE)

Page 2

FRONT TOP

1) Remove plastic caps and install spacers using supplied bolts at the front and rear of the rack

(three places each). Install front and rear cable chases as previously described in step 3.

(FIGURE D)

2) Reinstall plastic caps (extras provided).

FIGURE D

Produkt Specifikationer

Mærke:	Middle Atlantic
Kategori:	Ikke kategoriseret
Model:	BGR-CC-45FB
Type:	Kabelbakkepanel
Bredde:	112 mm
Dybde:	50 mm
Højde:	2100 mm
Antal pr. pakke:	1 stk
Produktfarve:	Sort
Pakkevægt:	7480 g
Pakkedybde:	74.8 mm
Pakkebredde:	317.5 mm
Pakkehøjde:	1136.7 mm
Husmateriale:	Stål
Harmoniseret systemkode (HS):	85389099
Bæredygtighedscertifikater:	RoHS
Kapabilitet:	BGR Series
Størrelse:	4.4 "
Rackkapacitet:	45U
