• 1,000 lb. [453kg] weight capacity

• 1/

" [3mm] thick structural steel internal braces

•

22” [559mm] OD width, 25” [635mm] OD depth

• 1/

" , 3/4", 1” & 1-1/

" electrical knockouts on removable

rear plates top and bottom, easily removable for cable pass-through

Top plate additionally includes UHF / VHF knockouts

• Standard front, optional rear 11-gauge 10-32 threaded

rackrail with numbered rackspace increments

• Optional front doors available

• Configurable top options

• Durable black textured powder coat finish

• UL Listed in the US and Canada

• Models available with or without locking rear door

ERK Series Ready-to-Assemble enclosure ships flat

for simplified shipping and storage

ERK-4425KD

ERK Series

Ready-to-Assemble Enclosure

96-01051 / rev 4b / 01-13-11

ENCLOSURE ACCESSORIES

ADDITIONAL RACKRAIL KIT

CASTER BASE

COPPER BUSS BAR

CRATING SERVICE

DOCUMENT POCKET

DOOR LATCH

LEVELING FEET

CONFIGURABLE TOPS

TOP RAILS

UNIVERSAL FRONT DOORS

VENTED REAR DOORS

WRINKLE TOUCH-UP PAINT

RISER BASES

for details - see Master Catalog

or visit middleatlantic.com

96-01051 / rev 4b / 01-13-11 / ERK Series Ready-to-Assemble Enclosure

EIA compliant 19" ready-to-assemble equipment rack shall be Middle Atlantic Products model

# ERK-__25KD (refer to chart). Overall dimensions of rack shall be __H x 22" [559mm]

W x 25" [635mm] D (refer to chart). Useable height shall be __ rackspaces, useable depth

shall be 23.47" [596mm] (refer to chart). Weight capacity shall be 1,000 lbs. [453kg].

Rack shall be constructed of the following materials: top and bottom shall be 14-gauge steel,

horizontal braces shall be 16-gauge steel welded to integral structural side panels of 16-gauge

steel giving an 1/8" [3mm] thick structure, all structural elements shall be finished in a

durable black powder coat. Rack shall include a locking, latching rear door. Rack shall come

equipped with one pair of 11-gauge steel rackrail with tapped 10-32 mounting holes in

universal EIA spacing, black e-coat finish and numbered rackspaces. Rack shall include solid

locking rear door standard, solid side panels with vertical slotted vent pattern at top and

bottom and laser knockouts for cable pass-through. Top and bottom of rack shall feature

vertical slotted vent pattern. Rack shall have a removable rear knockout panel with 1/2",

3/4", 1" and 1-1/2" electrical knockouts and BNC knockouts for UHF/VHF antennas installed

in top. Grounding and bonding stud shall be 1/4-20 threaded, installed in base of enclosure.

Rack shall be UL Listed in the US and Canada. ERK-_25KD shall be GREENGUARD Indoor Air

Quality Certified for Children and Schools. ERK-_25KD shall be RoHS EU Directive 2002 / 95 /

EC compliant. ERK-_25KD shall be manufactured by an ISO 9001 and ISO 14001 registered

company. Rack shall be warrantied to be free from defects in material or workmanship

under normal use and conditions for the lifetime of the product.

OPTIONS

• Front doors shall be 16-gauge steel & available as model #FD-XX (solid), VFD-XX (vented),

PFD-XX (plexi) PVFD-44 (vented plexi), (X=# of rack spaces of ERK rack)

• Vented rear doors shall be 16-gauge steel & available as model #ERK-VRD-XX,

(X=# of rackspaces of ERK rack)

• Top panels shall be 16-gauge steel, in 6 styles - model #ERK-ST (blank), #ERK-10FT (10"

[254mm] fan), #ERK-4FT (three 4-1/2" [114mm] fans), #ERK-VT (vented), #ERK-10FT-FC

(10” [254mm] fan with integrated fan control), #ERK-4QFT-FC (three 4-1/2” [114mm]

fans with integrated fan control)

• Caster base, four casters shall have a total weight capacity of 1300 lbs. [590 kg], model

# CBS-ERK-YY (Y= cabinet depth)

• Leveling feet model # LF, shall be 3/8" [10mm] threaded steel, adjustable from top or bottom

• Keyless Latch, replaces keylock & fits front & rear doors, model # LATCH

• Lacer strip, heavily perforated, 78" [1981mm] long, 11-gauge steel, model # LACE

• Rear rail kit, 11-gauge, 10-32 threaded, sold in pairs, hardware included,

model # ERK-RRXX (X=# of rackspaces)

Ships flat

EIA/TIA Compliant

C U S T O M I Z A B L E S P E C I F I C AT I O N C L I P S A VA I L A B L E AT M I D D L E AT L A N T I C C O M.

Features

EXCEPTIONAL SUPPORT & PROTECTION™

C U S T O M I Z A B L E S P E C I F I C AT I O N C L I P S A VA I L A B L E AT M I D D L E AT L A N T I C C O M.

US: New Jersey • California • Illinois • Voice: 973-839-1011 Fax: 973-839-1976 • middleatlantic.com

Canada: Ontario • British Columbia • Voice: 613-836-2501 Fax: 613-836-2690 • middleatlantic.ca

Architects’ and Engineers’ Specifications

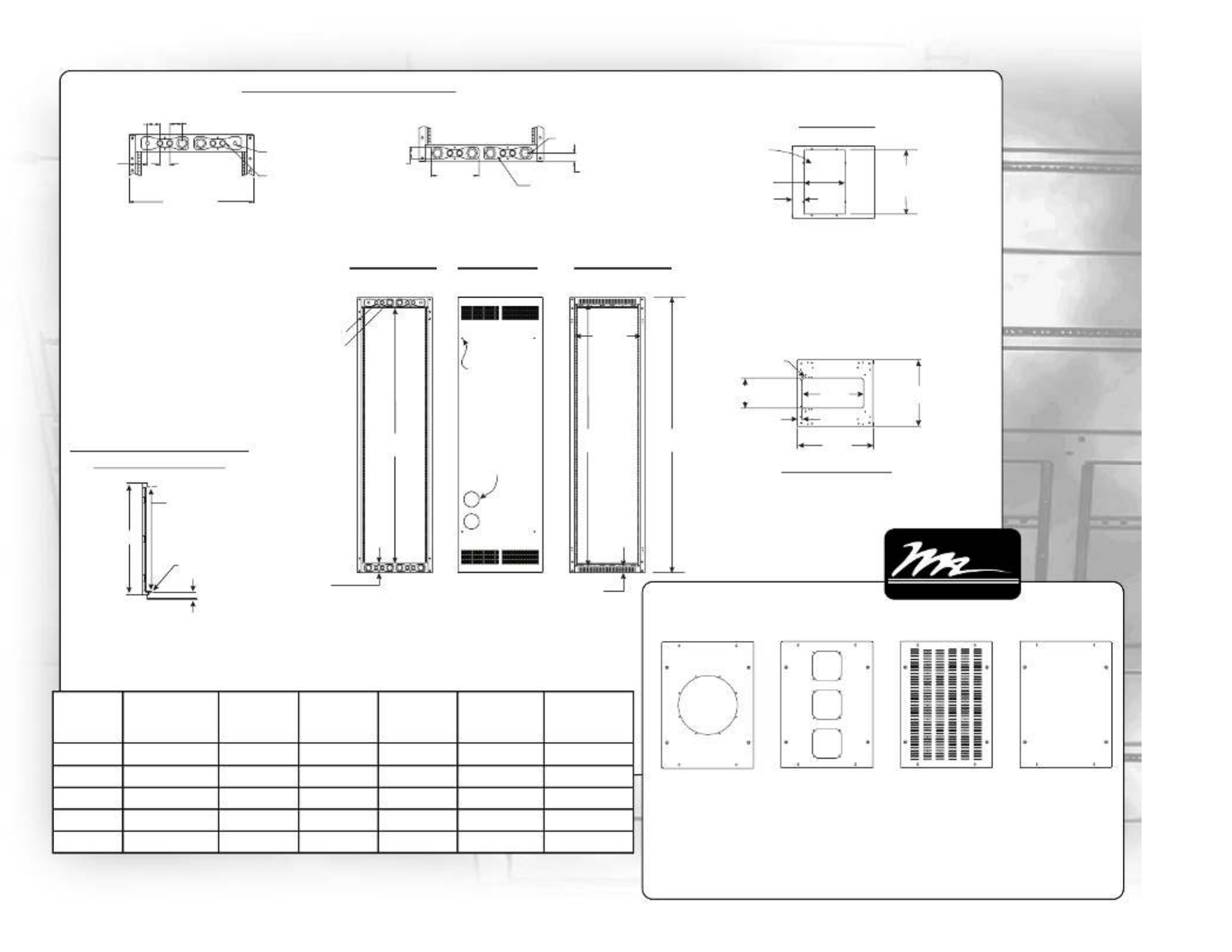

ERK basic dimensions

ERK top options

1.718

[44] 1.5 [38]

3.28

[83] 8.406

[213]

2.125

[54]

22.00

[559]

2.188

[56]

removable

EKO plates

fully adjustable

10-32 threaded

rackrail

front door clearance

(with rackrail in

forward-most position)

1.44 [37] solid/vented door

1.25 [32] plexi door

3.0 [762]

typical rear

9.75 [248]

1.44 [37]

22.00 [559]

Four 11/32” dia.

laser knockouts

for ganging

laser knockouts

for 4” electrical

tubing

19.25

[489]

B A

2.0 [51]

typical front

REAR VIEW, TOP & BOTTOM

TOP VIEW OF ERK SIDE

SECTIONAL VIEW

REAR VIEW SIDE VIEW FRONT VIEW

BOTTOM VIEW

EKO’s

1/2” [13] &

3/4” [19]

1” [25] &

1-1/2” [38]

ERK-10FT

ERK-10FT-FC*

ERK-4FT

ERK-4QFT-FC* ERK-VT ERK-ST

1” & 1-1/2” EKO

5/8” [16] dia.

KO for UHF/VHF

Antenna

1/2” [13] & 3/4”

[19]

EKO

1/4 - 20 X 1”

[25] grounding and

bonding stud

(1 place only)

opening

for 10”

[254]

fan

laser knockouts

configurable -

1 to 3 4-1/2” [114]

fans

2.188

[56]

All dimensions in inches unless otherwise noted [All dimensions in brackets are in millimeters]

19.50

[495]

12.37[314]

3.50 [90]

opening for

top option

TOP VIEW

* Includes fan(s)

and integrated

thermostatic fan

control

US: New Jersey • California • Illinois • Voice: 973-839-1011 Fax: 973-839-1976 • middleatlantic.com

Canada: Ontario • British Columbia • Voice: 613-836-2501 Fax: 613-836-2690 • middleatlantic.ca

Middle Atlantic Products

* Includes fan(s)

and integrated

thermostatic fan

control

Part #

Overall Height

Useable

Height

Rear Height

Overall Depth

Bottom

Opening Depth

Useable Depth

ERK-4425KD

81.125 [2061] 77.00 [1956] 75.125 [1908] 25.00 [635] 20.25 [514] 23.47 [596]

ERK-3525KD

65.375 [1661] 61.25 [1556] 59.375 [1508] 25.00 [635] 20.25 [514] 23.47 [596]

ERK-2125KD

40.875 [1038] 36.75 [933] 34.875 [886] 25.00 [635] 20.25 [514] 23.47 [596]

ERK-1825KD

35.625 [905] 31.50 [800] 29.625 [752] 25.00 [635] 20.25 [514] 23.47 [596]

ERK-1025KD 21.625 [549] 17.50 [445] 15.625 [397] 25.00 [635]

20.25 [514] 23.47 [596]

* Add - LRD suffix to any of the above part #’s to denote models without a locking rear door.

Produkt Specifikationer

Mærke:	Middle Atlantic
Kategori:	Ikke kategoriseret
Model:	ERK-RR18
Type:	Stativskinne
Bredde:	35.7 mm
Dybde:	35 mm
Højde:	800.1 mm
Antal pr. pakke:	1 stk
Produktfarve:	Sort
Husmateriale:	Stål
Certificering:	Greenguard
Harmoniseret systemkode (HS):	85389099
Bæredygtighedscertifikater:	RoHS
Kapabilitet:	ERK
Rackkapacitet:	18U
