IRCS Series

rack system

conﬁgured rack series designed for use

in residential installations

• Fully welded steel construction

• UL Listed with up to a 1,200 lb. / 544 kg weight capacity,

depending on model

• Includes removable locking side panels

• Includes locking, reversible glass door and locking rear access panel

• Ships complete with locking swivel casters and leveling feet

• Each rack includes pre-installed shelves and blank panels

EIA compliant 19” equipment rack shall be Middle Atlantic Products model #IRCS-__24 (see chart

for available models). Overall dimensions of IRCS shall be __mm H x 592mm W” x 610mm D (refer to

chart). Useable height of IRCS shall be __ rackspaces, useable depth shall be 513mm. IRCS shall come

equipped with two pairs of adjustable steel rackrail with tapped 10-32 mounting holes in universal EIA

spacing, black e-coat ﬁnish and numbered rackspaces. IRCS shall be of fully welded construction. IRCS

shall include locking reversible tempered glass front door with a push-button latch. IRCS shall include

solid locking rear and side panels. IRCS shall include locking swivel casters and leveling feet. IRCS shall

have a top mounted grommet with an opening of 33mm x 191mm for cable pass through. IRCS shall

have a 305mm x 305mm and 33mm x 191mm bottom opening. IRCS shall come preconﬁgured with

shelves and blank panels, please refer to chart. IRCS shall be ﬁnished in an environmentally friendly,

durable metallic grey powdercoat. Fully welded construction shall provide UL Listed load capacity of

___kg.(refer to chart.) IRCS shall be UL Listed in the US and Canada. IRCS shall be GREENGUARD

Indoor Air Quality Certiﬁed for Children and Schools. IRCS shall comply with requirements of RoHS

EU Directive 2002 / 95 / EC. IRCS shall be manufactured by an ISO 9001 and ISO 14001 registered

company. IRCS enclosure shall be warrantied to be free from defects in material or workmanship under

normal use and conditions for the lifetime of the rack.

Customizable speciﬁcation clips available at middleatlantic.com

features:speciﬁcations:

96-01185 / rev b / 10-20-14

EIA/TIA COMPLIANT

IRCS-4224

ESSEX by Middle Atlantic

middleatlantic.com | middleatlantic.ca

what great systems are built on.

™

all dimensions in inches unless otherwise noted [all dimensions in brackets are in millimeters]

IRCS Series

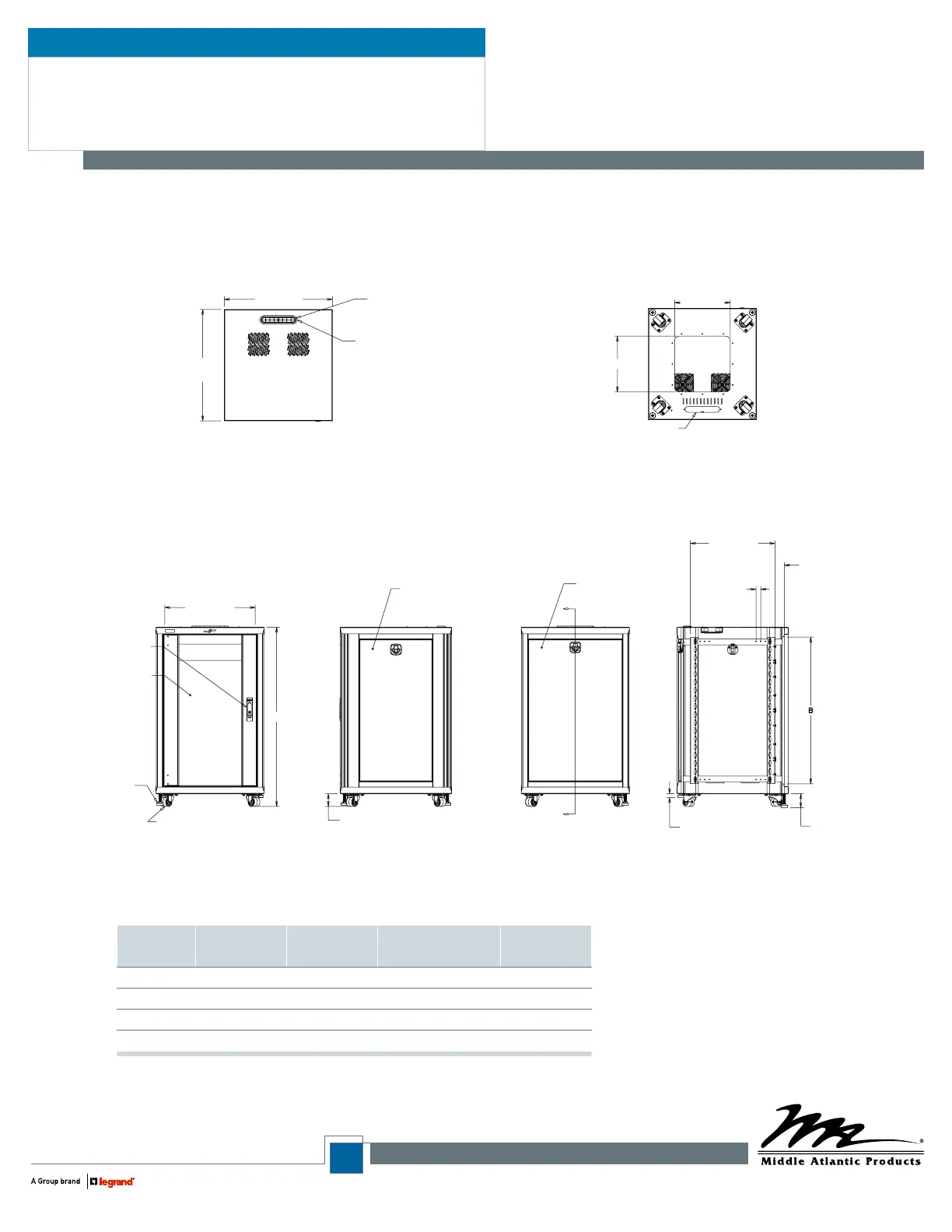

basic dimensions

front view

top view bottom view

23.3 [592]

24.0

[610]

grommet for cable

pass through

1.30 [33]

x 7.5 [191]

opening

1.30 [33] x 7.5 [191]

opening

2.75 [69.8]

caster height

18.20 [462]

(factory setting)

20.20 [513.1]

maximum

2.0 [51] rackrail

face to inside

surface of door

(factory setting)

1.0 [25.4]

minimum

19.48 [495]

front opening width

.84 [21]

minimum extension

(leveling foot)

3.00 [76]

maximum

extension

(leveling foot)

12.0 [305]

1.00 [25]

rackrail

adjustment

increments

side view back view

tempered

glass door

w/metal

sides

leveling

foot (4)

casters

(2) non-locking

(2) locking

push button

latch w/lock

removable right

and left locking

side access panels

removable locking

rear access panel

section a-a

front door not shown

Part # Weight Rating

“A”

Overall Height

“B”

Front Opening Height Rackspaces

IRCS-1824 500 lbs/227 kg 38.62 [981] 31.59 [802] 18 [31.50”]

IRCS-2724 750 lbs/340 kg 54.37 [1381] 47.34 [1202] 27 [47.25”]

IRCS-3524 1000 lbs/454 kg 68.37 [1737] 61.34 [1558] 35 [61.25”]

IRCS-4224 1,200 lbs/544 kg 80.62 [2048] 73.59 [1869] 42 [73.50”]

Produkt Specifikationer

Mærke:	Middle Atlantic
Kategori:	Ikke kategoriseret
Model:	IRCS-3524
Type:	Fritstående reol
Bredde:	592 mm
Dybde:	610 mm
Højde:	1737 mm
Produktfarve:	Sort
Pakkevægt:	92080 g
Pakkedybde:	685.8 mm
Pakkebredde:	660.4 mm
Pakkehøjde:	1905 mm
Materiale:	Stål
Harmoniseret systemkode (HS):	85381000
Styrehjul:	Ja
Bæredygtighedscertifikater:	RoHS
Maksimal vægtkapacitet:	454 kg
Størrelse:	19 "
Indre bredde:	462 mm
Rackkapacitet:	35U
Indvendig dybde:	510 mm
Indre højde:	1558 mm
Nøglelås:	Ja
Aftagelig hoveddør:	Ja
Dørkonstruktion:	Glas
Sidepanel konstruktion:	Stål
Bagdørskonstruktion:	Stål
Aftagelige sidepaneler:	Ja
Nøglelås til bagdør:	Ja
Dørlås til hoveddøren:	Ja
Sidepanel nøglelås:	Ja
