THANK YOU

Thank you for purchasing the Vertical Lacer Strips. Please read these instructions

thoroughly before installing this product.

PRODUCT FEATURES

- Unique slot pattern includes tie posts for sliding

on pre-assembled cable bundles

- Mounting holes accept Cage Nuts as well as PD Slim and PDT Series

vertical power strips

- Accepts cable ties and hook and loop straps up to 3/4” wide

LACE-OWP LACE-OP

POSITION AS SHOWN

FOR INSTALLATION

Page 2

PARTS

A) MOUNTING SCREW QTY C) LACER STRIP QTY

B) RECTANGLE NUT QTY

INSTALLATION

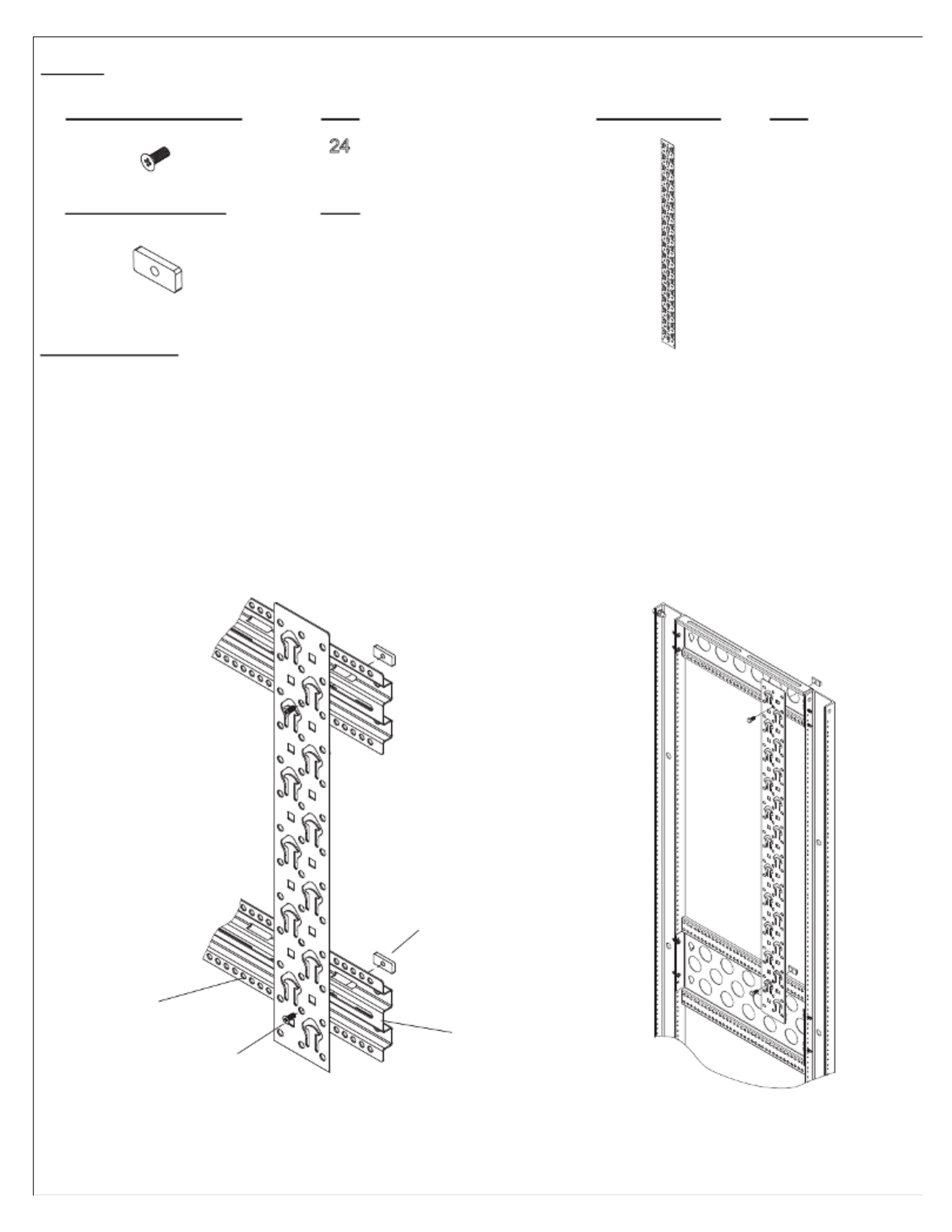

1) Mount Lacer Strip to Rackrail Brackets as shown using Mounting Screw and Rectangle Nut.

Strip can be mounted to Fixed Hole, or Adjustable Slot for ease of movement.

(Fixed Hole mounting shown - FIGURE A)

- 37, 40 and 44 space Lacer Strips use four mounting points

- 23 space Lacer Strips use two or three mounting points, R4 Series Rack side shown (FIGURE B)

Certain series racks have only Fixed Hole or Adjustable Slot mountingNOTE:

- 13 space Lacer Strips use two mounting points (FIGURE A)

Rectangle Nut

Mounting Screw

Fixed Hole

Adjustable Slot

FIGURE A FIGURE B
