PD Series

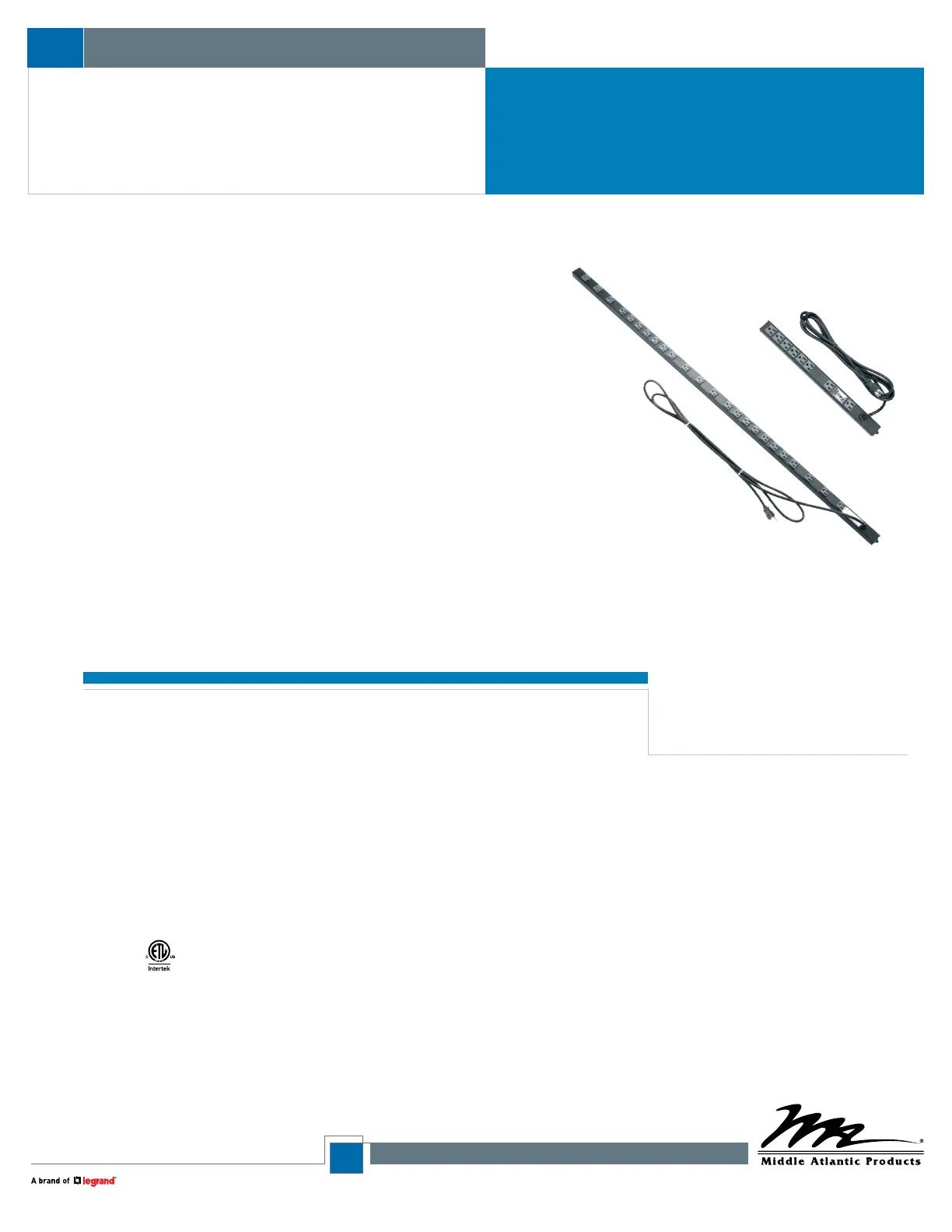

slim power strips

high density power strips feature a slim,

low-proﬁle design and staggered outlets

to accommodate plug-in power supplies

features:

• UL Listed and CSA certiﬁed (PD-2420SC-NS UL Listed only)

• (1) 15 or 20 amp circuit depending on model

• Includes SignalSAFE™ power cord terminated with NEMA 5-15P

or NEMA 5-20P plug depending on model

• Up to 24 outlets depending on model

• Outlets spaced to accommodate plug-in power supplies

• Circuit breaker or MOV surge & EMI ﬁlter & breaker protected,

depending on model

• Mounting hardware included

• Slim low-proﬁle design requires less space

• Gray outlets easy to see in rear of enclosures

• Lightweight anodized al

uminum chassis

* For additional Vertical Power Strips, please see A&E Spec # 96-938

High density slim power strip shall be Middle Atlantic Products model # PD-__-__ with __ outlets

and __ amps (refer to chart). Slim power strip shall be__” long x 1.25” deep x 1.6” wide and shall

have gray __ NEMA ___ outlets (refer to chart) in unique spacing pattern that allows up to __

plug-in power supplies (refer to chart). Slim power strip includes __ amp circuit breaker protection

and mounting hardware (refer to ch

art). Terminated with ___ (refer to chart) SignalSAFE™ power

cord with NEMA ___ plug (refer to chart). Grounding and bonding stud shall be 1/4 - 20 threaded.

Slim power strip shall be ETL listed to UL standards 1149 and 1363 in US and to CAN/CSA standard

C22.2 #8 and C22.2 #21 in Canada. Slim power strip shall be manufactured by an ISO 9001

registered company. Slim power strip shall be warrantied to be free from defects in material or

workmanship under normal use and conditions for a period of 3 years.

Customizable speciﬁcation clips available at middleatlantic.com

speciﬁcations:

options:

• Model # PB-XS, rackmounting bracket shall mount

any 8 outlet power strip (PD-815SC, PD-815SC-NS)

between rackrail of any EIA compliant 19” rack.

Includes cable management tie points

• Model # PB-5A mounting brackets shall accommodate

the mounting of vertical power strips to rackrail of any

rack

• Model # PB-DWR mounting bracket shall accommodate

the mounting of vertical power strips to rear rackrail of

Middle Atlantic Products DWR & SR series wall racks

PD-2415SC-NS

PD-815SC-NS

middleatlantic.com | middleatlantic.ca

what great systems are built on.

™

Part #

Overall Length

Outlet

Spacing

Outlet

Spacing

# of Plug In

Power Supplies

Accomodated

# Of

Outlets

Outlet

Type

Cord Length/

Termation Circuit

Surge

Protection

Overcurrent

Protection

PD-715SC-NS 13.60 [345] 1.18 [30] N/A 1 7 5-15R 10’ cord w/NEMA 5-15 plug 15 AMP (1) none circuit breaker

PD-815SC 18.60 [472] 1.18 [30] 2.48 [63] 3 8 5-15R 10’ cord w/NEMA 5-15 plug 15 AMP (1) single stage circuit breaker

PD-815SC-20 18.60 [472] 1.18 [30] 2.48 [63] 3 8 5-15R 20’ cord w/NEMA 5-15 plug 15 AMP (1) single stage circuit breaker

PD-815SC-NS 18.60 [472] 1.18 [30] 2.48 [63] 3 8 5-15R 10’ cord w/NEMA 5-15 plug 15 AMP (1) none circuit breaker

PD-815SC-PBSH* 18.60 [472] 1.18 [30] 2.48 [63] 3 8 5-15R 10’ cord w/NEMA 5-15 plug 15 AMP (1) single stage circuit breaker

PD-2415SC 60.60 [1539] 1.77 [45] 2.84 [72] 11 24 5-15R 10’ cord w/NEMA 5-15 plug 15 AMP (1) single stage circuit breaker

PD-2415SC-NS 60.60 [1539] 1.77 [45] 2.84 [72] 11 24 5-15R 10’ cord w/NEMA 5-15 plug 15 AMP (1) none circuit breaker

PD-2420SC-NS 60.60 [1539] 1.77 [45] 2.84 [72] 11 24 5-15R (22), 5-20R (2) 10’ cord w/NEMA 5-20 plug 20 AMP (1) none circuit breaker

all dimensions in inches unless otherwise noted [all dimensions in brackets are in millimeters]

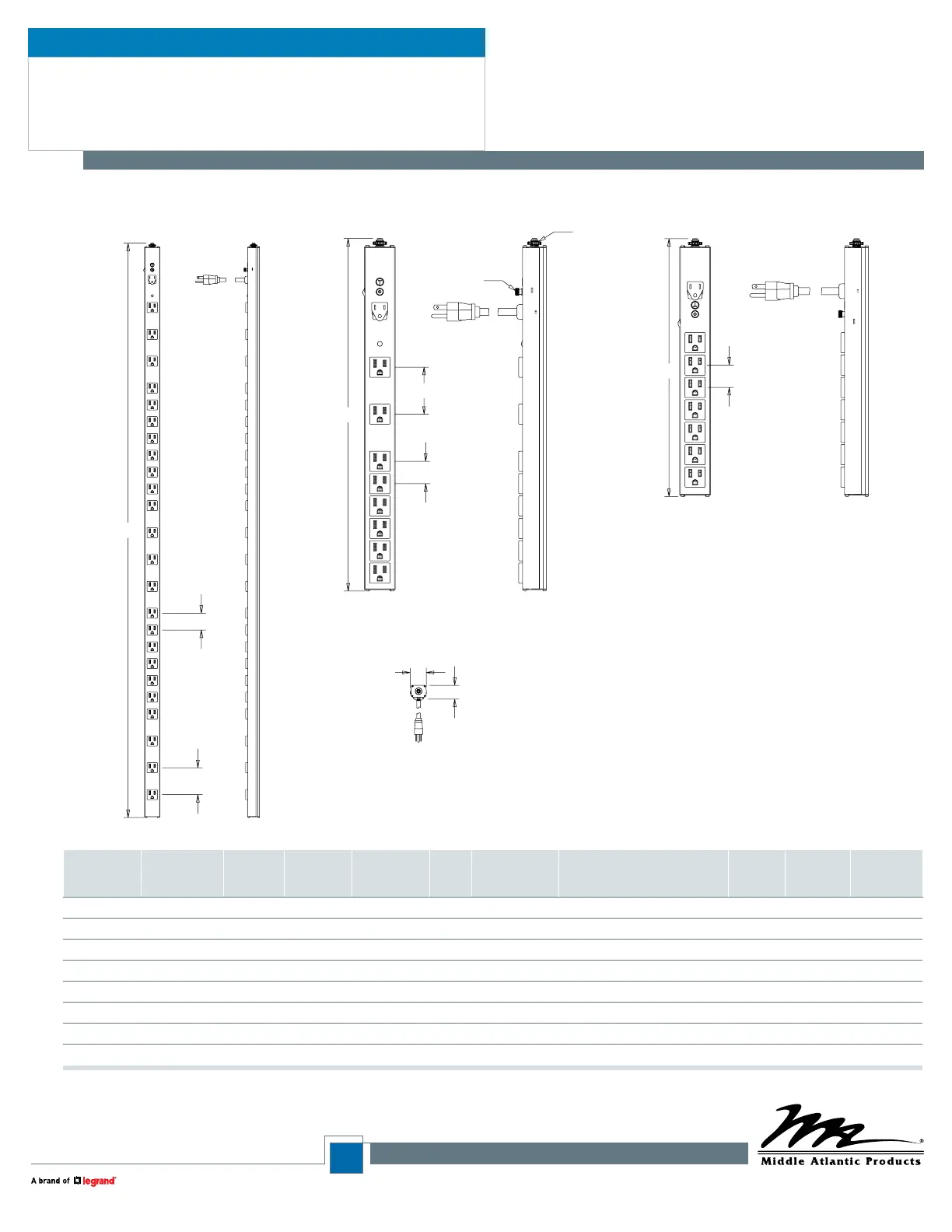

PD Series Slim

basic dimensions

Note:

PD Slim Series Includes Signalsafe™ Power Cord Technology

1.46 [37]

1.71 [43]

PD -715 SC-NSPD-815SC-X XPD-24XXSC-XX

ground

stud

circuit

breaker

*PD-815SC-PBSH mounts on UXV Series fully vented utility shelves, RC and CAP Series clamping rackshelves, VRS - Vertical Rackmount Shelves, KD Series

ready-to-assemble rackshelves, RSH Series custom face rackmounts
