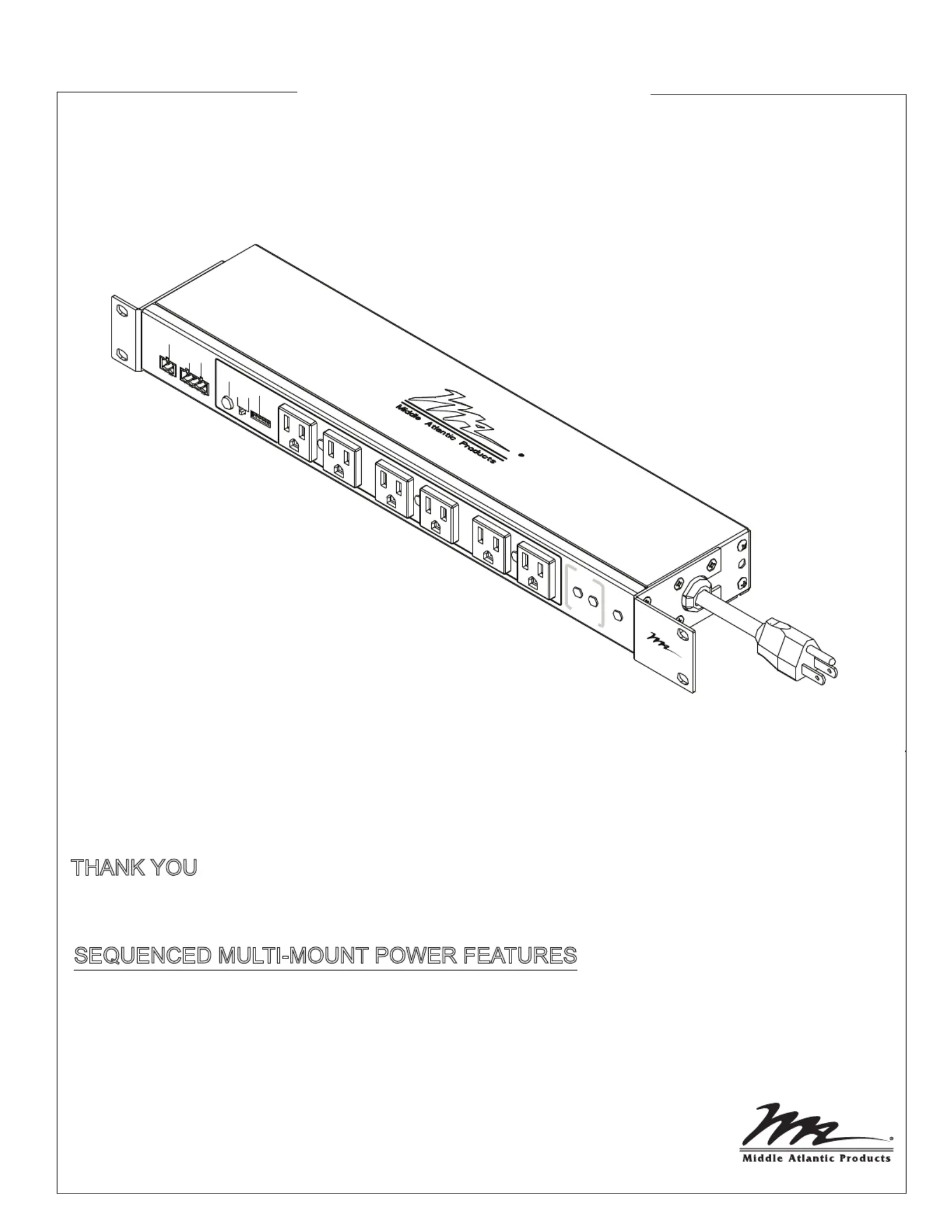

THANK YOU

Thank you for purchasing Sequenced Multi-Mount Series Power. Please read

these instructions thoroughly before installing and connecting to this product.

™

SEQUENCED MULTI-MOUNT POWER FEATURES

- 3 Step sequencing with multiple delay options

- Universal sequence control

- 2 Stages of surge and spike protection with dry contact surge status notification

based on model

- Provides a high outlet density in a compact size

- Adjustable mounting ears for flexible installation options

- Mixed outlet spacing to accommodate various plug types

I-00429 Rev E

Instruction Sheet

PDS-SERIES

SEQUENCED MULTI-MOUNT

™

STEP 3

STEP 2

STEP 1

Sequence

Up / Down

los ed o

Sequence Com

lete

Sequence

Compl ete

osed if

Com

prom i

n o i t c

e t o r P e g r

Status

ote

In i

ia te

Local

Sequence

Ini tiate

Rem

ote

Local

ONTROL

POWER

Sequence

Settin gs

ROTECTION

SURGE

DETCETORP

TIL NEHW

Stage 1 Stage

IMPORTANT NOTES

Page 2

DANGER HAZARDOUS VOLTAGE/DANGER HAUTE

TENSION

The lightning flash with the arrowhead symbol, within an

equilateral triangle is intended to alert the user to the

presence of uninsulated dangerous voltage within the

product’s enclosure that may be of sufficient magnitude to

constitute a risk of electric shock to persons.

L'éclair avec le symbole de flèche dans un triangle

équilatéral est destiné à alerter l'utilisateur de la présence

d'une tension dangereuse non isolée dans l'enceinte du

produit qui peut être d'une ampleur suffisante pour constituer

un risque de choc électrique pour les personnes.

CAUTION/

FCC STATEMENT

ATTENTION

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the

literature accompanying the appliance.

Le point d'exclamation dans un triangle équilatéral est

destiné à alerter l'utilisateur de la présence d'importants

instructions d’opération et de maintenance (entretien) dans la

documentation accompagnant l'appareil.

READ AND SAVE THESE INSTRUCTIONS!

CONSERVER CES INSTRUCTIONS!

• Contains switched receptacle(s). To reduce risk of shock , disconnect the

device from the power source before servicing any connected

equipment

Contient de(s) receptacle(s) commuté(s). Pour réduire les risques

d'électrocution, débranchez l'appareil de la source d'alimentation

avant l'entretien de tout équipement connecté

• Do not overload the wall outlet where this device is being connected. Do not

overload this device. Ensure the total load to this device does not exceed that

which is listed in the specifications section of this manual

Ne surchargez pas le réceptacle de mur ou le circuit qui fournit l'énergie à ce

appareil. Ne pas surcharger cette appareil. S'assurer que la charge totale à cet

appareil ne dépasse pas celle qui est répertoriée dans la section des

spécifictions de ce manuel

• Ensure this device is connected to a properly grounded AC power source.

Ensure the device is plugged into a source providing the required 120V. Do not

use a plug adapter that defeats the ground pin of the AC plug

Assurez-vous cet appareil est connecté à une source d'alimentation C/A avec

mise à la terre. Assurez-vous cet appareil est branché sur une source

d’alimentation fournissant les nécessaires 120V. Ne pas utiliser un adaptateur

qui contrecarre la broche de terre de la prise du cordon d’alimentation

• There are no user-serviceable components within this device. Removal of the

cover from this device may present a shock hazard, and void the warranty

Il n'ya pas de composants réparables par l'utilisateur au sein de cet appareil.

Retrait de la couverture de cet appareil peut présenter un danger

d'électrocution et annuler la garantie

• To be used indoors in a dry location only

Pour être utilisé en intérieur dans un endroit sec seulement

• Do not operate with a damaged cord or plug

Ne pas faire fonctionner avec un cordon ou une prise endommagée

• Clean only with dry cloth

Nettoyer avec un chiffon sec seulement

NOTE: The MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall

remain readily operable. The socket-outlet shall be installed near the equipment and shall be easily accessible.

• lnstall power strip in a 19” EIA-310 compliant rack or cabinet.

IMPORTANT SAFETY INSTRUCTIONS

Part #

Circuit

Breaker

Location

PDS-1615R One 15

Amp

PDS-1620R-NS One 20

Amp

# Rear

outlets

# Front

outlets

# outlets per

step

Sequence

delay (in Sec)

Cord

length

Surge Protection

Power on

Indication

(Sequenced)

2, with LED Status

# Sequence

steps

0, 1, 2, 6, 10,

30, 60, 90

0, 1, 2, 6, 10,

30, 60, 90

(Unswitched)

(Sequenced)

LED on

Front

LED on

Front

9’

N/A

2 stage with N/O remote

dry contact notification

Rear

SEQUENCED MULTI-MOUNT FEATURE CHART

Rear

This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to PART 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following

measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.
