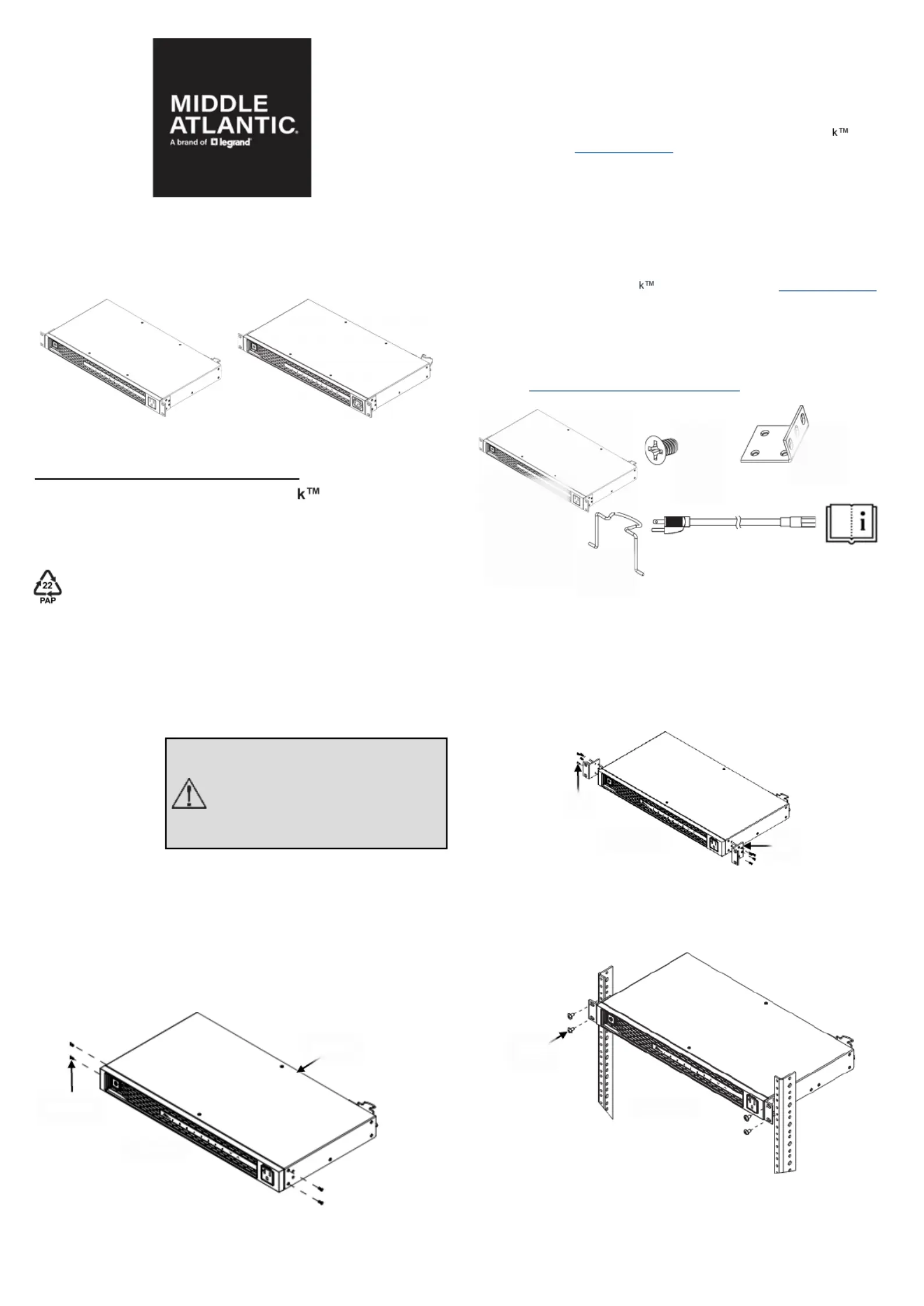

Setting Up Your RackLink Device

- - 2

- - 3

- - 4

IMPORTANT SAFETY INSTRUCTIONS—EN

SAVE THESE INSTRUCTIONS This manual contains important instructions that should -

be followed during installation and maintenance of the power distribution unit (PDU).

For complete safety instructions, refer to the Premium+ PDU with RackLin User

Manual (I 00826) at .-www.legrandav.com

• Only use attachments and accessories specified by the manufacturer.

• Read all instructions before using the product.

INSTRUCTIONS IMPORTANTES SUR LA SÉCURITÉ–FR

CONSERVER CES INSTRUCTIONS Ce manuel contient des instructions importantes -

qui doivent être suivies lors de l installation et de la maintenance de unité de distribution ’

d'énergie (PDU).

Pour obtenir des instructions de sécurité complètes, reportez vous aux manuel d utilisa--’

tion Premium+ PDU with RackLin User Manual (I 00826) à .-www.legrandav.com

• Utiliser uniquement les accessoires spécifiés par le fabricant.

• Lisez toutes les instructions avant d utiliser le produit.’

Supplied Components and Hardware

After carefully opening all product packaging, identify the supplied components and hard-

ware shown. If pieces are missing or damaged, please report it immediately to Technical

Support at or (866) 977 3901.av.middleatlantic.techsupport@legrand.com -

Keep the original packaging in a safe place for future use.

NOTE:

• To order more hardware, contact support at av.support@legrand.com or (866) 977-

3901.

• Additional hardware is included that may not be required for your installation.

• #1 Phillips Screwdriver

Required Tools

WARNING

Use tools with caution and

follow all safety protocols.

AVERTISSEMENT

Utiliser des outils avec pru-

dence et suivre tous les

protocoles de sécurité.

Supplied Components and Hardware (Continued)

NOTE: Prepare the installation site. Make sure the installation area is clean

and not exposed to extreme temperatures or humidity. Allow sufficient space

around the device for cabling and outlet connections.

1. Use #1 Phillips screwdriver and remove (2x) pre installed -5/16”

screws from both sides of the PDU (A) as shown. ( )FIGURE A

(2x)

Mounting

Bracket

(4x)

5/16”

Phillips

Screw

Power Cord

NOTE: Cord provided varies

based on model purchased.

Quick

Start

Guide

Cord

Retainer

2. Use screwdriver, (2x) removed screws, and additional (2x) screws 5/16”

(B) to attach a mounting bracket (C) to each side of the unit as shown

(4x screws pre bracket). (FIGURE B)

Setting Up Your RackLink Device (Continued)

FIGURE C

Rack

Screw

FIGURE A

FIGURE B

3. Attach the mounting brackets to the rack using rack screws (not provided)

as shown. ( )FIGURE C

Pre Installed -

Screws

Premium+ Series PDU with RackLin

Quick Start Guide

I 00827 Rev D-

Rackmount

Unit

NOTE: Form factor

and outlet type vary

based on model

purchased.

- - 7

- - 8

WARRANTY

For warranty information, refer to .www.legrandav.com/policies/warranty_information

Contacting Corporate Headquarters

P: (866) 977 3901 | F: (877) 894 6918 | - - www.legrandav.com |

av.middleatlantic.techsupport@legrand.com

Contacting Middle Atlantic Canada

P: (888) 766 9770 | F: (888) 599 5009 | - - www.legrandav.com |

av.canada.customerservice@legrand.com

Contacting Middle Atlantic Europe, Middle East, and Africa (EMEA) Technical Support

P: +31 495 726 003 | - - av.emea.middleatlantic.support@legrand.com

Initial Network Configuration via Device Discovery

1. After launching your RackLink Device Discovery program, the tool

automatically discovers all PDUs on the subnet to which you are

connected.

Use the Discover button to refresh the screen and discover any newly

connected PDUs.

By default, the PDU is set for DHCP. You can identify each device by the

MAC address or IP address.

NOTE: You may need to disable your Windows firewall to discover your PDU.

Contact your network administrator for assistance.

2. Click Device Control to access the default web interface for a specific

device.

• Default network interface address:

192.168.1.200

• Default administrator account credentials:

Username: admin

Password: admin

• Default user account credentials:

Username: user

Password: user

After logging in for the first time, the system forces you to change

default passwords for security purposes.

- - 6

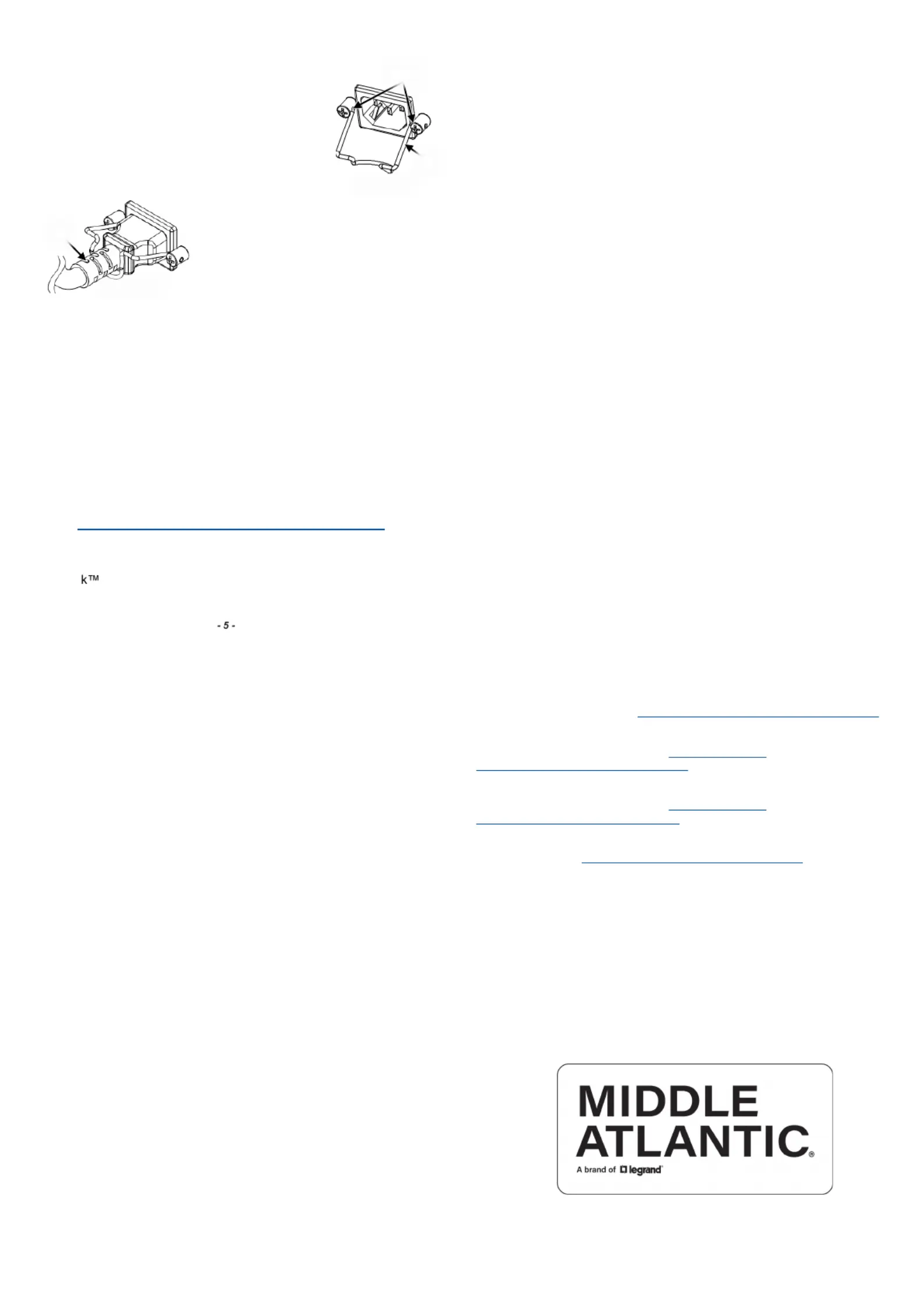

Connecting Your PDU

1. Install the cord retainer (D) by inserting two

ends of the retainer into the two tiny holes adjacent

to the inlet as shown. ( )FIGURE D

2. Connect the power cable (E) to the inlet, and position

the retainer to secure the cable as shown.

( )FIGURE E

Networking Defaults

Your PDU uses DHCP as the default network configuration. The default static

address is .192.168.1.200

Installing the RackLink Discovery Tool Software

Holes

FIGURE D

3. Connect the other end of the power

cable to an appropriately rated branch

circuit.

4. Your PDU then powers up and per-

forms a brief self test.-

5. Connect a standard Cat5e cable (or better, not provided) to the

ETHERNET port on your PDU.

6. Connect the other end of the Cat5e cable to your network.

Default Web Interface Address and Account Information

At Legrand AV Inc. we are always listening. Your comments are welcome.

Legrand AV is an ISO 9001 and ISO 14001 Registered Company.

United States (US)

Legrand | AV Headquarters

6436 City West Parkway

Eden Prairie, MN, 55344, USA

European Union (EU)

Legrand AV Netherlands

B.V. Franklinstraat 14 6003

DK, Weert, Netherlands

United Kingdom (UK)

Starline Holding Technology Ltd.

(Authorized Representative)

Unit C, Island Rd.

1. If you haven t done so already, download the Discovery Tool onto your ’

workstation from the Power Downloads page at:

https://www.legrandav.com/resources/power downloads-

2. Install the application on your workstation. For more information about

installing the Device Discovery tool, refer to the Premium+ PDU with

RackLin User Manual (I 00826) at www.legrandav.com.-

If you have questions, please contact support at av.support@legrand.com

or (866) 977-3901.
