• Tapped for 10-32 threads

• Threaded rack rail is 1/8” [3mm] thick

• Suitable for use in 19-1/8” [486mm] wide openings

• Sold in pairs

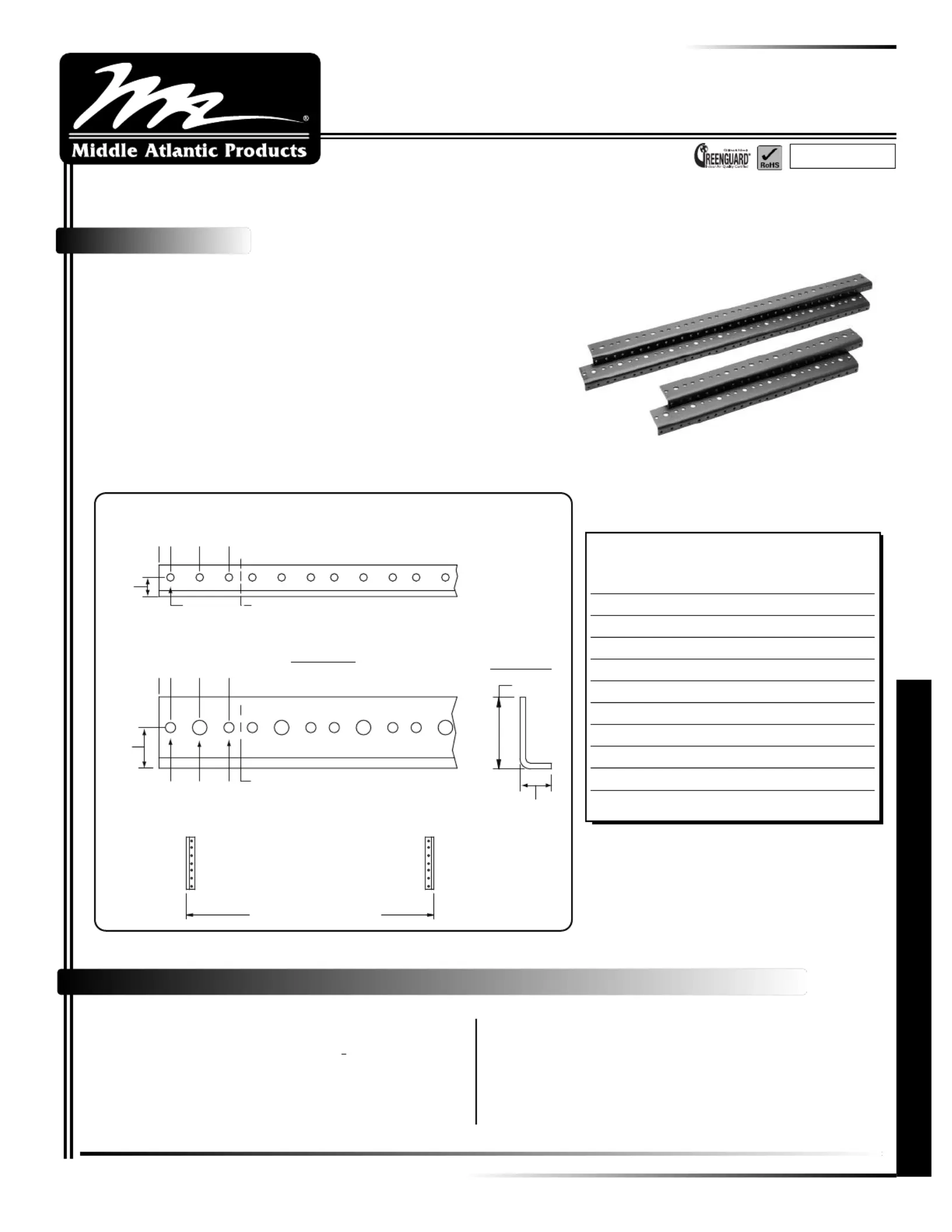

RRF Full-Hole Rackrail

96-033 / rev 3b / 07-16-10

96-033 / rev 3b / 07-16-10 / RRF Rackrail

EIA/TIA compliant RRF Series Rackrail shall be Middle Atlantic Products model number RRFx

(refer to chart). Rackrail shall be 1/8” thick steel. Rail shall be x

rackspaces in length (refer to

chart) pre-treatment process shall be 3 stage iron phosphate. Steel rackrail shall be finished

with a durable black e-coat. Rackrail shall be GREENGUARD Indoor Air Quality Certified for

Children and Schools. Rackrail shall be RoHS EU Directive 2002/95/EC compliant. Rackrail

shall be manufactured by an ISO 9001 and ISO 14001 registered company. Rackrail shall

be warrantied to be free from defects in material or workmanship under normal use and

conditions for the lifetime of the product.

RRF basic dimensions

RACKING

PART # LENGTH HEIGHT MATERIAL

RRF2 3.50” (2 spaces) 0.125” steel

RRF4 7.00” (4 spaces) 0.125” steel

RRF6 10.50” (6 spaces) 0.125” steel

RRF8 14.00” (8 spaces) 0.125” steel

RRF12 21.00” (12 spaces) 0.125” steel

RRF14 24.50” (14 spaces) 0.125” steel

RRF16 28.00” (16 spaces) 0.125” steel

RRF18 31.50” (18 spaces) 0.125” steel

RRF21 36.75” (21 spaces) 0.125” steel

RRF27 47.25” (27 spaces) 0.125” steel

RRF45 78.75” (45 spaces) 0.125” steel

.000 [0]

SIDE VIEW

EIA/TIA Compliant

.250 [6]

.875 [22]

1.50 [38]

1.75 [45] (1 space) pattern repeated10-32

threads

.000 [0]

.250 [6]

.875 [22]

1.50 [38]

.41

[10]

.87

[22]

ø.218 [6]

ø.312 [8]

ø.218 [6]

1.75 [45] (1 space) pattern repeated

1.53 [39]

.68 [17]

TOP VIEW

19.125 [486] wide rough opening

(19” [482] EIA Standard)

* All dimensions in inches unless noted

[bracketed dimensions are in millimeters]

EXCEPTIONAL SUPPORT & PROTECTION

™

C U S T O M I Z A B L E S P E C I F I C AT I O N C L I P S A VA I L A B L E AT M I D D L E AT L A N T I C C O M.

Features

C U S T O M I Z A B L E S P E C I F I C AT I O N C L I P S A VA I L A B L E AT M I D D L E AT L A N T I C C O M.

US: New Jersey • California • Illinois • Voice: 973-839-1011 Fax: 973-839-1976 • middleatlantic.com

Canada: Ontario • British Columbia • Voice: 613-836-2501 Fax: 613-836-2690 • middleatlantic.ca

Architects’ and Engineers’ Specifications

RRF

Produkt Specifikationer

Mærke:	Middle Atlantic
Kategori:	Ikke kategoriseret
Model:	RRF10
Type:	Stativskinne
Bredde:	17.2 mm
Dybde:	38.9 mm
Højde:	444.5 mm
Antal pr. pakke:	1 stk
Produktfarve:	Sort
Husmateriale:	Stål
Certificering:	Greenguard
Harmoniseret systemkode (HS):	85389099
Bæredygtighedscertifikater:	RoHS
Rackkapacitet:	10U
