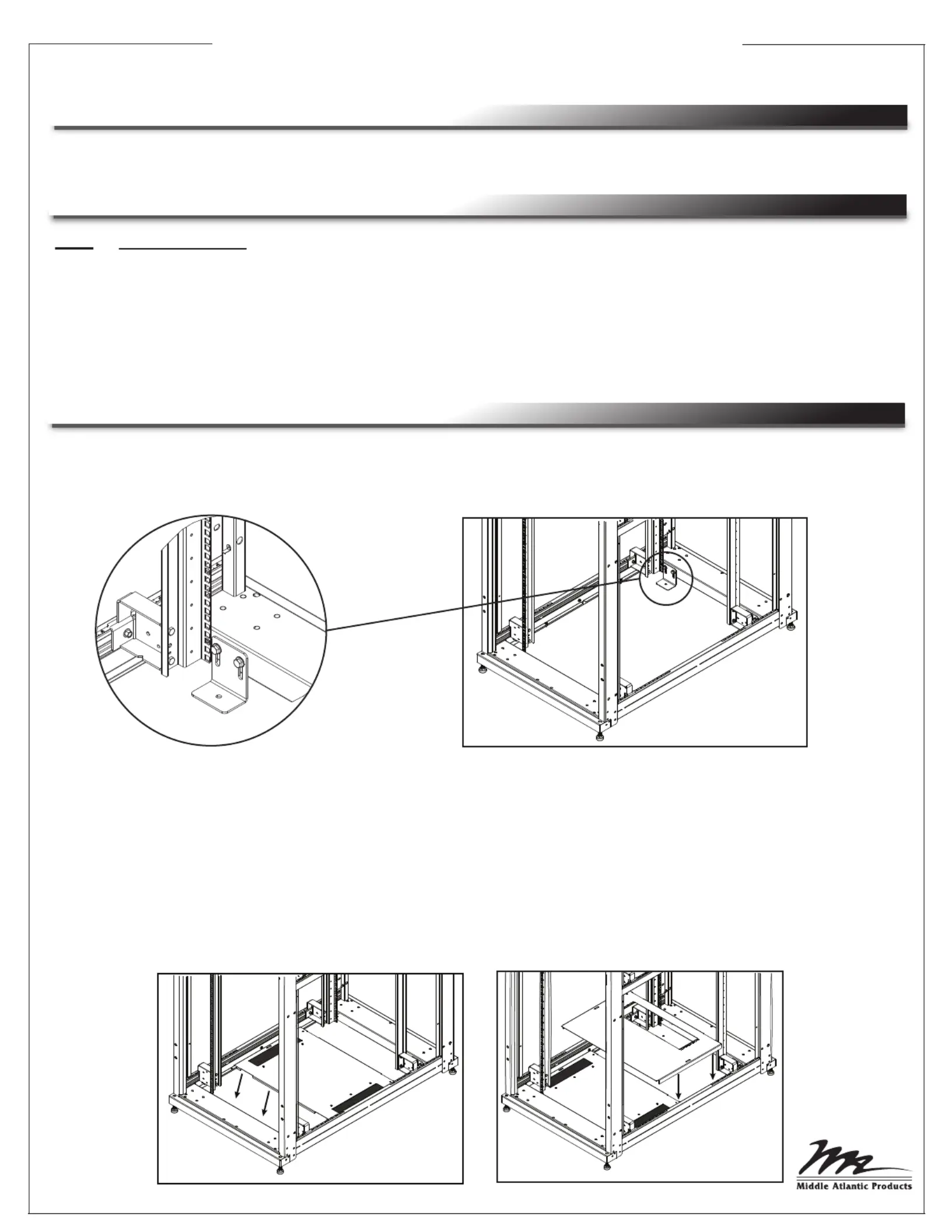

I-00636 Rev A

Installation Instructions

SNE Series

SNE Bottom Blank Plate

Panel With Two Brushed Access Points

Panel For Use With Removable Two Space Access Panel

Removable Two Space Panel

Cage Nuts

10-32 Truss Head Phillips Screws

15” Bond Wire

QTY

DESCRIPTION

1) Using a 1/2” wrench, remove the shipping brackets, four places. (FIGURE A)

NOTE: Chimney must be positioned and secured prior to installing bottom blank plate.

3) Place the panel with the brushes in the bottom of the enclosure first . Place the other (FIGURE B)

panel on the opposite side. The panels can be installed in either the front or back of the enclosure.

(FIGURE C)

#2 Phillips Screwdriver

1/2” Wrench

FIGURE A

FIGURE B

FIGURE C

INSTALLATION

PARTS LIST

TOOLS REQUIRED

2) Before installing panels, attach the 15” bonding conductor to the panels and SNE frame. The

bonding conductor terminates in a 10/32 ring terminal for connection to the panel and a 1/4-20 ring

terminal for connection to the protective earth terminal (PET) on the SNE frame. The main protective

earth ground needs to be the first terminal placed on the PET and this terminal needs to be secured

on its own (with nut). The bonding conductor for the base plate can be added to the PET after the

securing nut for the main ground.

Page 2

WARRANTY

Middle Atlantic Products, Inc. (the "Company") warrants the SNE Series Bottom Blank Plate to be free from defects in material or

workmanship under normal use and conditions for the lifetime of the product.

The Company's entire liability to the purchaser, and the purchaser's (or any other party's) sole and exclusive remedy, under this warranty

shall be limited, at the Company's option, to either (a) return of and refund of the price paid for, or (b) repair or replacement at the

Company's factory of the products purchased, or any part or parts thereof, which the Company has determined to be defective after

inspection thereof at the Company's factory.

This warranty does not cover damage due to acts of God, accident, misuse, abuse or negligence by parties other than the Company, or

any modification or alteration of the products. In addition, this warranty does not cover damage due to improper handling, assembly,

installation or maintenance.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT

NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY

SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION,

DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF

THE USE OF THE PRODUCTS PURCHASED, EVEN IF THE COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH

DAMAGES. THE COMPANY'S LIABILITY TO THE PURCHASER (OR ANY OTHER PARTY) HEREUNDER, IF ANY, SHALL IN NO

EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCTS PAID TO THE COMPANY.

Corporate Headquarters

Corporate Voice 973-839-1011 - Fax 973-839-1976 / International Voice +1 973-839-8821 - Fax +1 973-839-4982

middleatlantic.com - info@middleatlantic.com

Middle Atlantic Canada

Voice 613-836-2501 - Fax 613-836-2690 / middleatlantic.ca - @middleatlantic.ca

Factory Distribution

USA: NJ - CA - IL Canada: ON - BC

At Middle Atlantic Products we are always listening. Your comments are welcome.

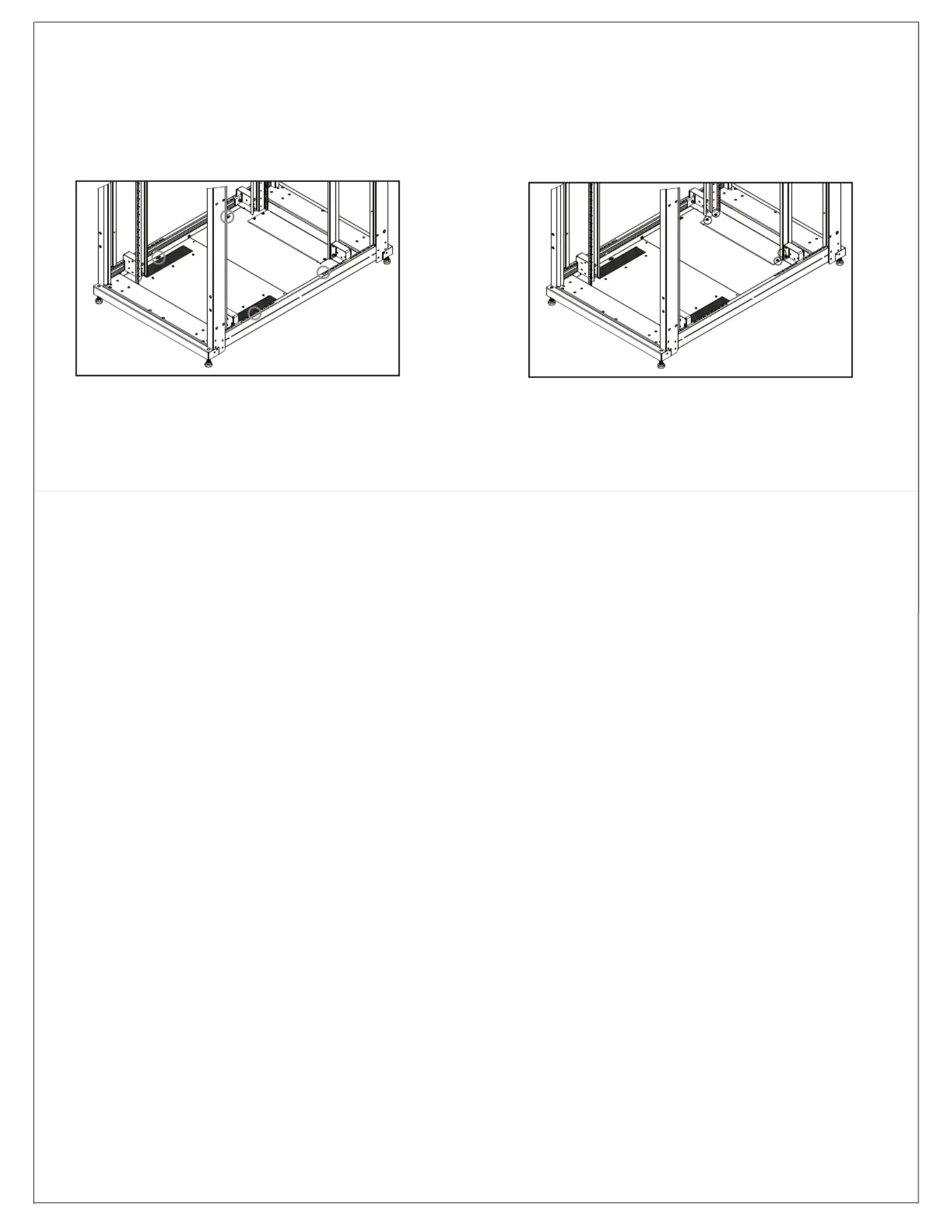

FIGURE D

FIGURE E

4) Adjust panels accordingly. Install Phillips screws on the sides of the panels four places,

two per panel. (FIGURE D)

5) Install two space panel. Insert cage nuts into the main panel and secure using two Phillips screws.

(FIGURE E)

NOTE: The two space panel can be replaced with standard 19” vent, brush or grommet panels.
