I-0900 Rev J
THANK YOU
Thank you for purchasing the SRS Series. Please read these instructions
thoroughly before installing/assembling this product.
Page 2

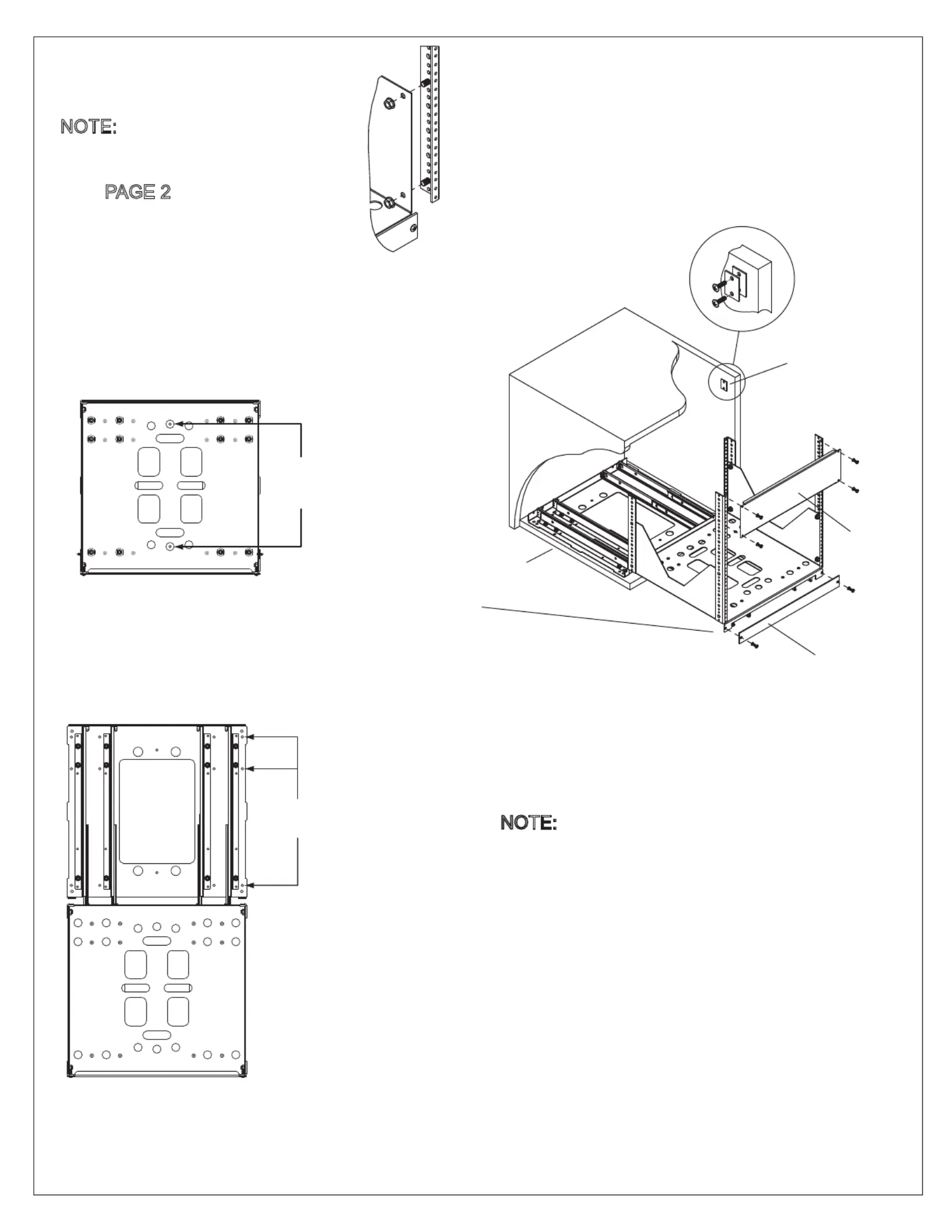

12 MOUNTING
HOLES
BOTTOM
PAN
LOCKING
PANEL
SQUARING
PANEL
1) Position and center SRS in millwork with setback
desired.
2) Using 2 preliminary mounting hole locations attach
the SRS to the millwork.
PRELIMINARY
MOUNTING
HOLES
3) Remove "Locking Panel" and slide rack out
4) Secure SRS using 12 mounting points indicated
in drawing.
(4x)
(4x)
(4x)
5) Attach rackrail to the sliding section using hardware
provided, finger tighten only.
6) Install squaring panel approximately 1/3 of the way
down from the top of the rackrail using hardware
provided. NOTE: The squaring panel remains in place
until some of the equipment is loaded.
7) Final tighten the rackrail to the sliding section.
8) Test the sliding carriage operation. Adjust mounting
positions as necessary should interference with the
millwork occur.
9) Attach the Locking panel.
10) Rail Stops serve to maintain a plumb position when rack
is closed. Mount 2 stops per side in the highest position
possible while maintaining contact with the backside of
the rackrail in the closed position. Wood screws are
for this provided attachment. (see illustration above)
RAIL STOPS
(stack 2 per side)
NOTE: If optional cable carrier
is used it must be
installed prior to rackrail.
(See PAGE 2)
