• Simplifies millwork cabinet design
• Shortens installation & service time
• Rack can be mounted from 3” to 40” off floor
• Available with 26”, 20” and 16-1/2” frame depths
• Articulating cable carriers provide effective
cable management
• Frame heights from 10 spaces (17-1/2”) or
15 spaces (26-1/4") to 43 spaces (75-1/4")
• Service stand is quick and simple to install
• 650 lb. weight capacity with proper weight distribution
96-055M / rev 9 / 2-22-12 / AXS System for Millwork

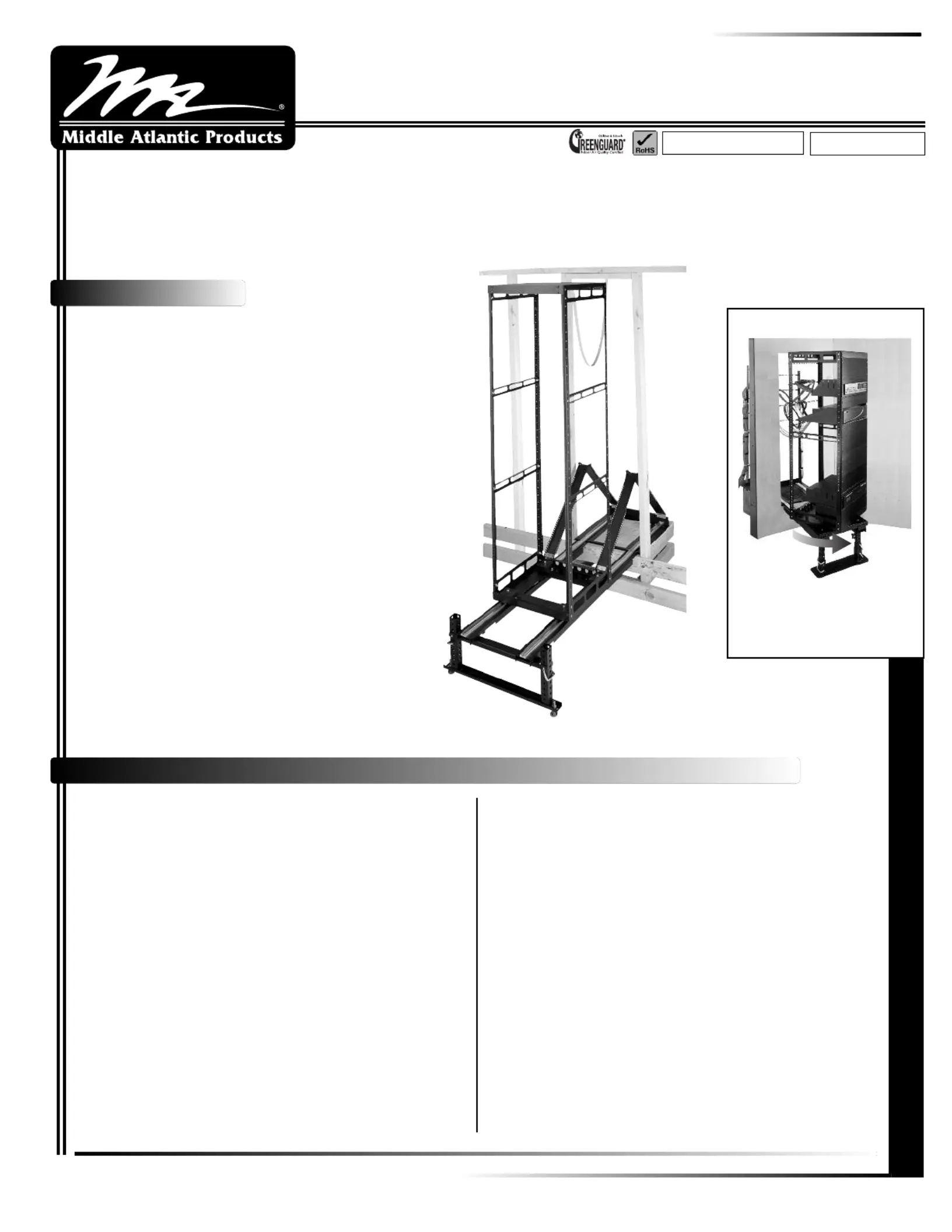

The AXS system allows an entire bay of equipment to pull out for
easy installation or service. The telescoping service stand and tracks
disconnect for storage.
AXS System shown
installed in millwork
in service position
96-055M / rev 9 / 2-22-12
AXS System For Millwork & In-Wall
Patented EIA compliant 19” slide-out equipment rack for millwork installation shall be Middle
Atlantic Products model #__ (refer to chart). Rack shall have __ useable rackspaces, overall
height of __”, and a useable depth of __” (refer to chart). Rough-in millwork dimensions shall
have a minimum depth of __” (refer to chart) with a 1/2” setback, overall width of __” (refer to
specs) and a weight capacity of 650 lbs. with proper weight distribution. Rack shall be constructed
of the following materials: top, base, caster brackets, and horizontal braces shall be 13-gauge
steel with black powder coat finish, rack uprights shall be 11-gauge steel rackrail with tapped
10-32 mounting holes in universal EIA spacing. Rackrail shall be finished in black e-coat with
marked rackspaces, top and bottom trim panels shall be 11-gauge aluminum with a black brushed
and anodized finish. Cable carrier shall be constructed of the following materials: cable carrier
and lower hinges shall be constructed of 16-gauge steel, center hinge shall be constructed of
10-gauge steel and cable carrier shall be finished in a black powder coat. Rack top shall have
openings to accept up to 2 fans, model # AXS-FAN (one fan) or AXS-FAN-K (two fans). Service
tracks and stands shall be constructed of a 13-gauge steel frame with an aluminum extrusion.
Service tracks for AXS, SAX and AXS-xx-26 systems shall be model # TRACK50 with a 50” track
length and 48” rack frame extension depth. Service Tracks for AX-SX and SSAX systems shall be
model # TRACK25 with a 25” track length and 25” rack frame extension depth. Service stand
shall be model # TRACKL (for 2-1/4” - 3-1/4” mounting height off floor), TS310 (for
3”-11” mounting height off floor), TS1022 (for 10”-22” mounting height off floor)
and TS1640 (for 16”- 40” mounting height off floor). Rack shall be GREENGUARD Indoor Air
Quality Certified for Children and Schools. Rack shall be RoHS EU Directive 2002 / 95 / EC
compliant. Rack shall be manufactured by an ISO 9001 and ISO 14001 Registered Company.
Rack shall be warrantied to be free from defects in material or workmanship for a period
of 3 years.
OPTIONS
• Optional slim fan for AXS systems shall be model # AXS-FAN. Kit with 2 fans shall be model
# AXS-FAN-K
• Optional 20" and 26" full-depth front and rear mount AXS rackshelf shall be model # SH-5A
(fits AXS, AX-SX, SAX and SSAX), SH-5A-26 (fits AXS-XX-26)
• Optional cable management tray shall be model # AXS-WT25 (fits AX-SX, SSAX), AXS-WT50
(fits AXS, SAX)
• Brush gasket shall require 19-5/8” rough-in opening width and shall be model # BG17
• Gasket and guide to center rack and protect millwork requires 19-5/8” rough-in opening
width and shall be model # AXS-GGxx (xx=depth of rack; 16, 20, 26)
AX-SXR Rotating Slide-Out System
for millwork and in-wall
installations, please see A&E
specification # 96-01000
Also available
US Patent # 5, 443, 312
EIA/TIA Compliant
EXCEPTIONAL SUPPORT & PROTECTION
™
C U S T O M I Z A B L E S P E C I F I C AT I O N C L I P S AV A I L A B L E AT M I D D L E A T L A N T I C C O M.
Features
C U S T O M I Z A B L E S P E C I F I C AT I O N C L I P S AV A I L A B L E AT M I D D L E A T L A N T I C C O M.
US: New Jersey • California • Illinois • Voice: 973-839-1011 Fax: 973-839-1976 • middleatlantic.com
Canada: Ontario • British Columbia • Voice: 613-836-2501 Fax: 613-836-2690 • middleatlantic.ca
Architects’ and Engineers’ Specifications

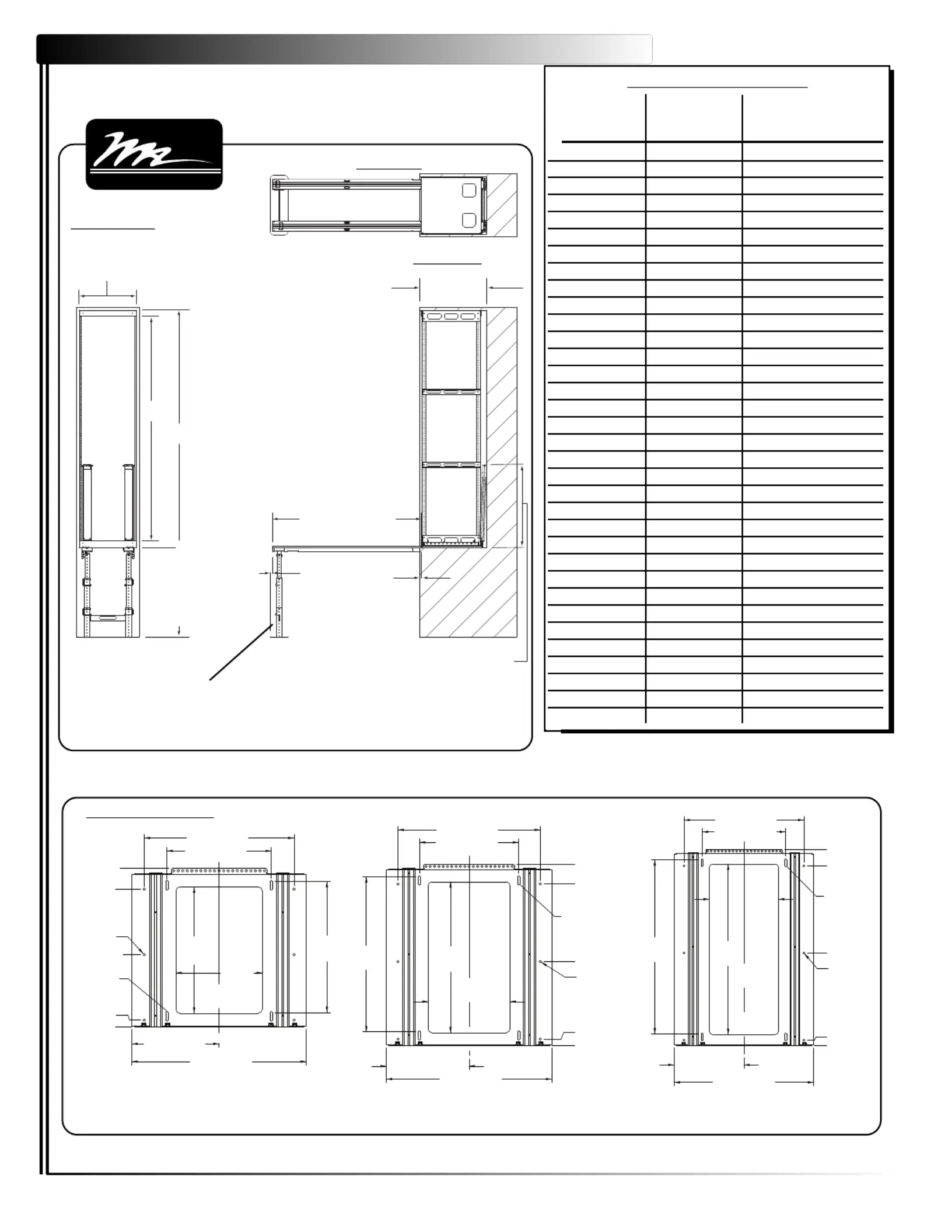

SIDE VIEW
FRONT VIEW
NOTE: Service stand TS1022 and TS1640 in
outer-most position will extend .517” beyond
track, TS310 will extend 4.743” beyond track,
TRACKL does not extend beyond track.
19-1/4 [489] min. finished opening width without gasket
TOP VIEW
A
B
.518 [13]
TS1022/
TS1640 and
4.743 [120]
TS310
.50 [13] min.
2.50 [63] max.
set back
Track 25 = 25.00 [635]
(used with AX-SX / SSAX)
Track 50 = 50.00 [1270]
(used with AXS / SAX /
AXS-xx-26)
AXS-xx-26 = 28.00 [711]
AX-SX = 17.00 [432]
AXS = 28.00 [711]
SSAX = 17.00 [432]
SAX = 28.00 [711]
AXS-xx-26 = 28.50 [724] min.
AX-SX = 22.50 [572] min.
AXS = 22.50 [572] min.
SSAX = 19.00 [483] min.
SAX = 19.00 [483] min.
includes 1/2 set back
see
service
stands
chart
MILLWORK SPECIFICATIONS
* When using optional gasket and guide kit, 3/8” must be added
to millwork opening height.
** AX-SX & SSAX only
SAX-XX, SSAX-XX
(frame depth = 16.5”)
AXS-XX, AX-SXR-XX, AX-SX-XX
(frame depth = 20”)
AXS-XX-26
(frame depth = 26”)
Specifications for AXS System
All dimensions in inches [Bracketed dimensions are in millimeters]
1
9-5/8 [498] when using optional gasket
A
A B
#
OF USEABLE USEABLE RACK MILLWORK OPENING
R
ACKSPACES HEIGHT (in.) HEIGHT (in.)*
**10 17-1/2 [444] 22-3/16 [568]
**11 19-1/4 [489] 23-15/16 [608]
**12 21 [533] 25-11/16 [653]
**13 22-3/4 [578] 27-7/16 [697]
**14 24-1/2 [622] 29-3/16 [741]
15 26-1/4 [667] 30-15/16 [786]
16 28 [711] 32-11/16 [837]
1
7 29-3/4 [756] 34-7/16 [875]
18 31-1/2 [800] 36-3/16 [919]
19 33-1/4 [845] 37-15/16 [964]
20 35 [889] 39-11/16 [1011]
21 36-3/4 [934] 41-7/16 [1053]
22 38-1/2 [978] 43-3/16 [1097]
23 40-1/4 [1022] 44-15/16 [1142]
24 42 [1067] 46-11/16 [1186]
25 43-3/4 [1112] 48-7/16 [1231]
26 45-1/2 [1156] 50-3/16 [1275]
27 47-1/4 [1200] 51-15/16 [1319]
28 49 [1244] 53-11/16 [1364]
29 50-3/4 [1289] 55-7/16 [1408]
30 52-1/2 [1334] 57-3/16 [1453]
31 54-1/4 [1378] 58-15/16 [1497]
32 56 [1423] 60-11/16 [1545]
33 57-3/4 [1467] 62-7/16 [1586]
34 59-1/2 [1512] 64-3/16 [1631]
35 61-1/4 [1556] 65-15/16 [1675]
36 63 [1600] 67-11/16 [1720]
37 64-3/4 [1645] 69-7/16 [1764]
38 66-1/2 [1689] 71-3/16 [1809]
39 68-1/4 [1734] 72-15/16 [1853]
40 70 [1778] 74-11/16 [1898]
41 71-3/4 [1823] 76-7/16 [1942]
42 73-1/2 [1867] 78-3/16 [1986]
43 75-1/4 [1912] 79-15/16 [2031]
M
Middle Atlantic Products
®
16.50 [419.1]
16.50 [419.1]
11.5 [292.1]
11.5 [292.1]
16.50 [419.1]
11.5 [292.1]
14.43
[366.5]
18.00
[457.2]
24.00
[609.6]
17.5
[444.5]
23.5
[596.9]
9.5
[241.3]
9.5
[241.3]
21.05
[534.6]
18.75
[476.3]
4X Ø.28 [7.1] X
1.13 [28.6] OB
4X Ø.28
[7.1] X
1.13 [28.6]
OB
13.93
[353.8]
17.48
[443.9]
15.18
[385.6]
6X Ø.28
[7.1]
6X Ø.28
[7.1]
6X Ø.28
[7.1]
.75
[19.1]
.75 [19.1]
27.05
[687]
24.75
[628.7]
9.75
[247.7]
12.75
[323.9]
4X Ø.28
[7.1] X 1.13
[28.6]OB
7.97 [202.3]
.75 [19.1]
0 [0]
0 [0]
0 [0]
9.5
[241.3]
9.59 [243.7]
19.19 [487.4]
9.59 [243.7]
19.19 [487.4]
9.59 [243.7]
19.19 [487.4]
C
L
C
L
C
L
BASE DIMENSIONS
