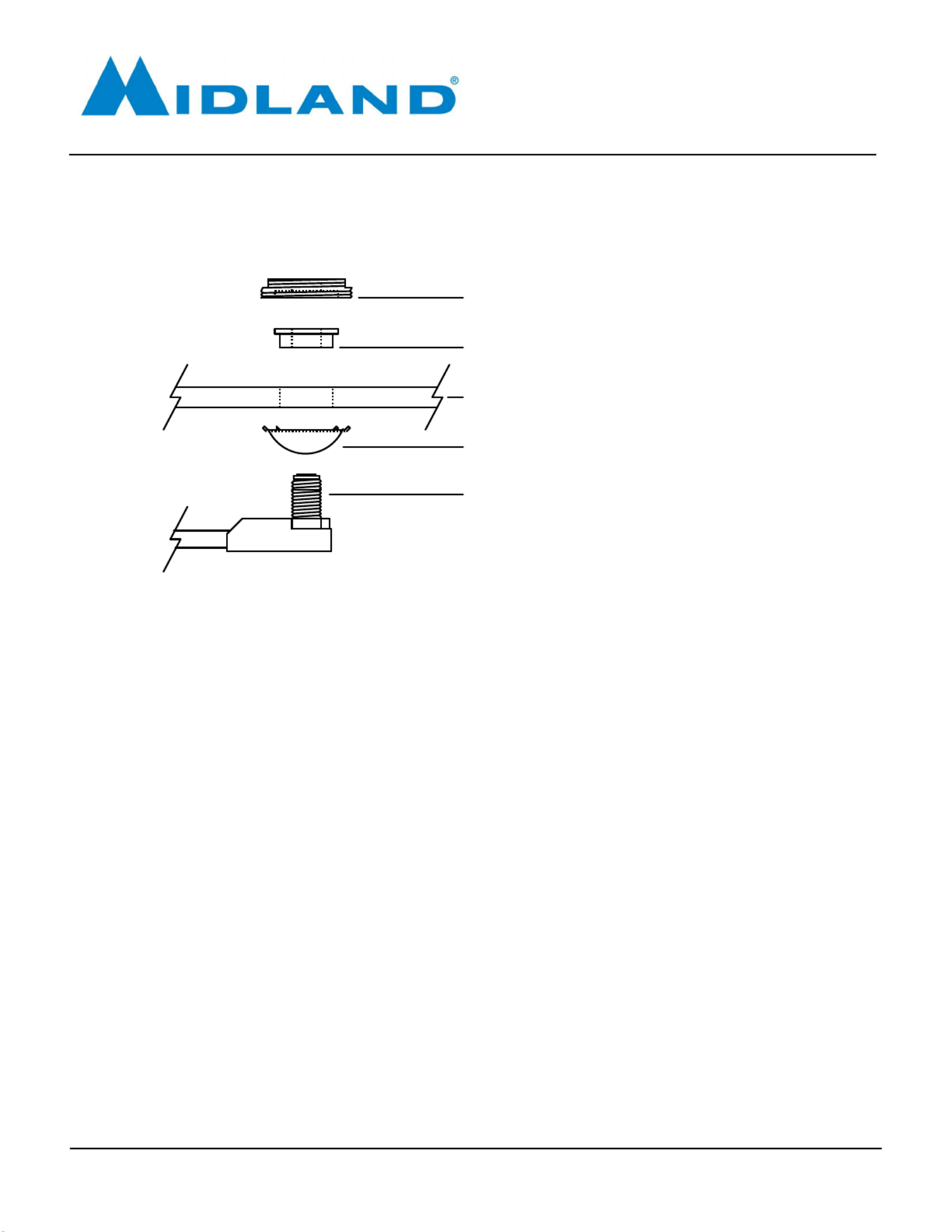

MXTA24 Assembly Diagram

1. The MXTA24 is designed for mounng brackets or surfaces 1/8” to 1/4" thick. Thinner materials may

require some stainless washer(s) below the surface for proper spacing.

2. The MXTA24 can be installed directly in a 3/8” hole, or in the 5/8” hole on some brackets using the

included nylon spacer, part B. The two ears on Part D help keep the assembly centered in a 3/4" hole.

3. Part D should be installed on part E before inserng from below the bracket or mounng surface.

4. Part B is only needed if using a bracket with a 5/8” hole. It should be inserted in the 5/8” hole from the

topside of the bracket.

5. Part A is installed on top of the bracket (and Part B if used) or mounng surface with the wrench ats up

and the O-ring down. The rubber O-ring on the boom of part A acts as a seal to prevent water entering

the mounng surface hole. Maximum torque: 16 lb-.

6. The center conductor of Part E should end up 1/32” to 3/16” proud of Part A to properly interface with

the NMO style antenna. Tighten the antenna by hand, to just snug.

A) 1 1/8" - 18 U NEF NMO Nut

B) 3/8" by 5/8" Bushing for 5/8" Hole (Optional)

C) Mounting Surface/Bracket, 1/8" to 1/4" Thick

D) Toothed Sa ddle Washer

E) 3/8" - 24 UNF Right An gle Coaxial NMO Interface
