MODECOM
user’s manual
7” GPS Navigation
www.modecom.eu
2
MODECOM NAVIGATION
Contents
Keys and Functions 6
I. Product Introduction 7
1.1 Introduction 7
1.2 Package 7
II. Features and specications 7
2.1 Main Features 7
2.2 Specication 8
III. Manual instruction 10
3.1 Power supply and charge 10
3.2 Power on/o󰀨 11
3.3 Reset system 12
3.4 Use bracket to x nawigator 12
3.5 Stylus 13
3.6 SD/MMC card 14
3.7 Connect with computer 14
IV. Primary function 16
4.1 The main interface and the function 16
4.2 Navigation Function Features and Operation 19
4.3 Video player interface and operation 20
4.4 Audio player interface and operation 23
4.5 Photo viewer interface and operation 27
4.6 E-Book reader interface and operation 30
4.7 Flash interface and operation 35
4.8 Favroite 38
4.9 Games interface and operation 41
4.10 Unit conversion 41
4.11 Calculator 42
4.12 USB setting 42
4.13 Volume setting 43
4.14 Backlight setting 44
4.15 Time setting 45
4.16 Screen calibration 46
4.17 FM transmitter setting 47
4.18 Bluetooth setting and operation description 48
4.19 System information 65
4.20 Language selection 66
4.21 Navi Path 66
4.22 Factory restore 67
4.23 GPS Information 67
Trouble shooting handle and maintenance of GPS 68
3
MODECOM NAVIGATION
Spis treści
I. Informacje o produkcie 73
1.1 Wprowadzenie 73
1.2 Zawartość zestawu 73
II. Funkcje i specykacje 74
2.1 Główne cechy 74
2.2 Specykacja 75
III. Instrukcja 77
3.1 Zasilanie i ładowanie 77
3.2 Uruchamianie on/o󰀨 78
3.3 Reset urządzenia 79
3.4 Mocowanie do urządzenia 79
3.5 Rysik 80
3.6 Karta pamięci SD/MMC 80
3.7 Połączenie z komputerem 81
IV. Podstawowe funkcje 82
4.1 Główny interfejs i funkcje 82
4.2 Opis funkcji nawigacji 85
4.3 Opis funkcji wideo 86
4.4 Opis funkcji audio 89
4.5 Opis funkcji odtwarzacza zdjęć 92
4.6 Opis funkcji czytnika E-Book 95
4.7 Opis funkcji odtwarzacza Flash 100
4.8 Ulubione 103
4.9 Interfejs gier 106
4.10 Konwersje jednostek 107
4.11 Kalkulator 107
4.12 Ustawienia USB 108
4.13 Ustawienia głośności 108
4.14 Ustawienie podświetlenia 110
4.15 Ustawienia czasu 111
4.16 Kalibracja ekranu 112
4.17 Ustawienia transmitera FM 113
4.18 Ustawienia Bluetooth 114
4.19 Informacja o sysystemie 130
4.20 Wybór języka 130
4.21 Plik nawigacji 131
4.22 Ustawienia fabryczne 131
4.23 Informacja o sygnale GPS 132
Rozdział II: Problemy i konserwacja GPS 133
www.modecom.eu
4
MODECOM NAVIGATION
User Manual
Welcome to use our GPS navigator
We reserve the nal explanation right on this User’s
Manual.
Specications are subject to change without notice.
Sorry for any inconvenience caused!
Please make a copy of the important data. We assume
no responsibility for the data loss.
● This manual has been carefully checked. Please con-
tact our service center when any typing mistake is found.
Please read the operating instruction carefully and
use the accessories only provided by the original factory to
avoid any unexpected damage. No warranty will be execut-
ed if you are not following the instruction or connecting with
the incompatible accessories, we assume no responsibility
for any loss and damage caused hereby.
The electronic navigation data may be not in confor-
GB
7” GPS Navigation
5
MODECOM NAVIGATION
mity with the actual transporting marks due to the tra󰀩c
construction development. Please be sure to comply with
the real road condition and follow the tra󰀩c rules. Operat-
ing and viewing the GPS during driving may cause severe
tra󰀩c accident. Our company will not be responsible for
any loss caused by the unexpected accident.
● Users can update and upgrade software from website
at his/her option.
● Any discrepancy between the pictures with real prod-
ucts hereinafter, the real one prevails.
Use Power adaptor provided with the device or dedi-
cated Modecom charger to avoid trouble. Otherwise it may
cause defect or re.
Do not tint the window for better GPS signal reception.
Do not expose this advice directly to the sun light. It
may cause over-heating.
Remodeling or rebuilding of the device may cause
defect of functions.
Do not store or use the device in extremely low or high
temperatures, as it may damage it.
It is not possible to receive the GPS signal in her-
mitical area like tunnel or underground parking lot. Also,
the GPS signal can be unstable when the vehicle is located
beside of tall buildings.
If front windshield is coated with a reective layer,
glass may be metallised/heated and may jam the GPS sig-
nal. In that case, please install the device in “clear area”
– i.e. under the rear-view mirror.
www.modecom.eu
6
MODECOM NAVIGATION
Keys and Functions

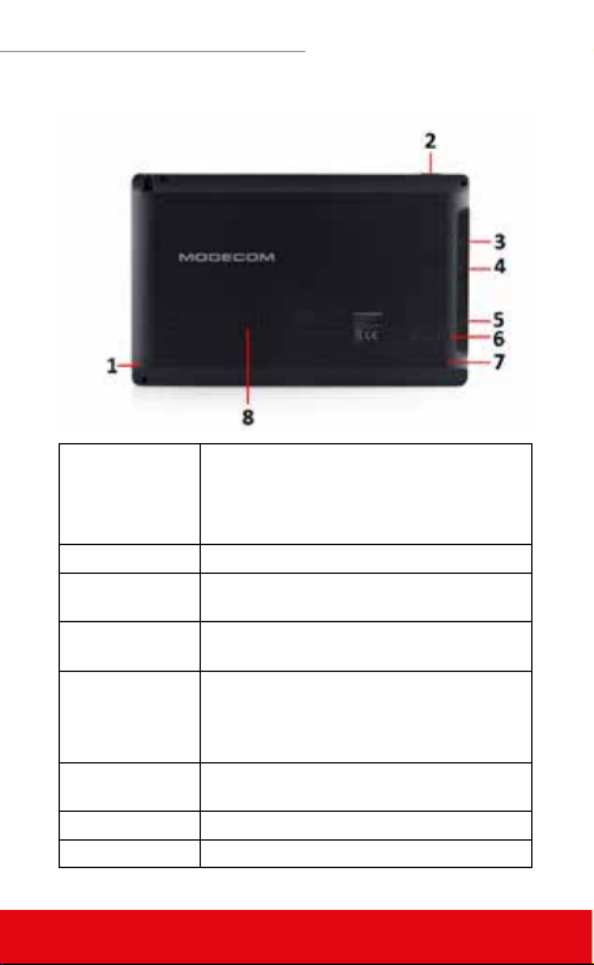

1. Stylus Pen Stylus Pen
2. Power key
Power ON/OFF
3. Earphone
Jack To connect your earphone
4. TF card slot To insert your TF card
5. mini USB
Connect to a output adaptor as in-
cluded in the accessories or connect to
a computer via a USB cable to transfer
data (music, videos, photos, etc.)
6. Reset
Press to reset the tablet if it freezes or
behaves
7. Microphone
Microphone
8. Speaker Speaker
7
MODECOM NAVIGATION
I. Product Introduction
1.1 Introduction
Welcome to use the GPS navigator, which is mainly
used for navigating and also has the optional function of
Bluetooth hands free, video playing, audio playing, FM,
photo viewing, and E-Book etc.
1.2 Package
The packing box contains the following accessories,
please conrm:
1. GPS navigator
2. Car charger
3. MINI USB cable
4. User’s manual
5. Car bracket
6. Car cradle
For the items listed above, please conrm the actual
products. If any damage,
Please contact with the distributor or the agent as soon
as possible.
The user’s manual is only applied to GPS products.
II. Features and specications
2.1 Main Features
Operating system: Microsoft Windows CE 6.0
7.0’’ TFT LCD display with resolution of 800*480 pixels
www.modecom.eu
10
MODECOM NAVIGATION
This chapter will give an introduction of the apparent
components and basic function of the GPS Navigator and it
will help you to be familiar with the basic operation quickly.
III. Manual instruction
3.1 Power supply and charge
If this navigator is rst used, please use AV adaptor to
fully charge it.
3.1.1 Power supply
There are three types of supplying power: battery, adap-
tor, USB cable.
GPS navigator uses the Li-battery to supply power
when it is not connected with adaptor. The mark indi-
cate the current electric volume.
GPS navigator uses the external power when it is con-
nected with the adaptor.
GPS navigator uses the USB cable to supply power
when the GPS connects to the PC.
[ ] Remark This machines adopt built-in, unchangeable
Lithium battery. At normal condition (if the back light is not
so bright), the actual supply hour can be di󰀨erent because
of the di󰀨erent way using the navigator. Some function (au-
dio playing, video playing, bright back light) will consume a
large power, which will reduce the using hour.
[ ] Note This machine adopts built-in, unchangeable
Lithium battery. In order to avoid re and burning, please do
11
MODECOM NAVIGATION
not poke, bump or take it apart or throw it into re or water.

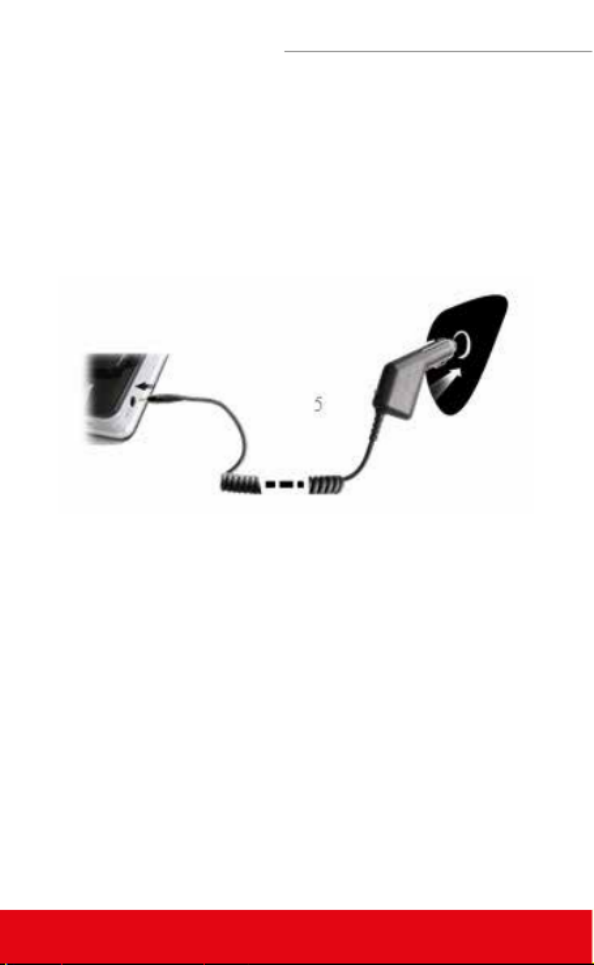

3.1.2 Use the car charger to supply power
1. Connect the DC part of the adaptor with the power
interface
2. The other part connect to the power socket, it sup-
plies power while charging.
[ ] Note Please insert the car adaptor after running the
car so as not to damage the machine by electricity collision.
3.2 Power on/o󰀨
Power on/o󰀨 is controlled.
3.2.1 Startup
Please check The battery is enough, or it is connected
to external power source;
Please press the button on the top of the unit to boot.
[ ] Note If bring the unit from one place to another place,
please boot until it adapts to the environment. Big humidity
uctuation will make the mainframe short circuited.
www.modecom.eu
12
MODECOM NAVIGATION
3.2.2 Shutdown
Press the button on the top of the unit to turn o󰀨, the
unit will enter the power saving mode and maintain the last
operation status when boot next time.
3.3 Reset system
If the system cannot work, you can reset the system by
the following way:
Click the reset key on the right part of the machine to
reset the system by using the stylus.
[relative information] It can be no response in the
following condition:
1. The shift between pictures is delayed or stopped.
2. The program select function cannot work normally,
such as long time to carry out or cannot be activated.
3. The power button can not work.
[ ] Note The unsaved data will be lost as you reset the
system when the system has no response. Please copy the
data every other time.
3.4 Use bracket to x nawigator
When use GPS in the car, you should x the device to
the part of window besides the panel by using the bracket.
www.modecom.eu
14
MODECOM NAVIGATION
3.6 SD/MMC card
The attached SD/MMC card contains the navigation
software, map data and media le. Please insert the card
correctly when use it.
[ ] Note Please do not take out the SD/MMC card when
the system is navigating or playing.
[ ] Note
1. Don’t stress or curve the SD/MMC card, avoid loss
and bulge.
2. Avoid high temperature or high humidity when use
and store the card, don’t expose the card directly to sun
light, let the card far away from liquid and corrosive mate-
rial.
3. Please pay attention to the heading when insert the
SD/MMC card. If you insert the card improperly, you will
damage the card.
3.7 Connect with computer
The device can be connected with the computer through
the MINI USB on its left part. You can copy the document
between navigator and computer or copy the data from
GPS navigator to computer so as to recover the data in
GPS when you are in need of them.
1. Please conrm the GPS navigator is power on;
2. Connect the MINI end [ ] of USB cable with the
USB port on the left part of GPS device and the normal end
[] with the Host port on computer.
15
MODECOM NAVIGATION

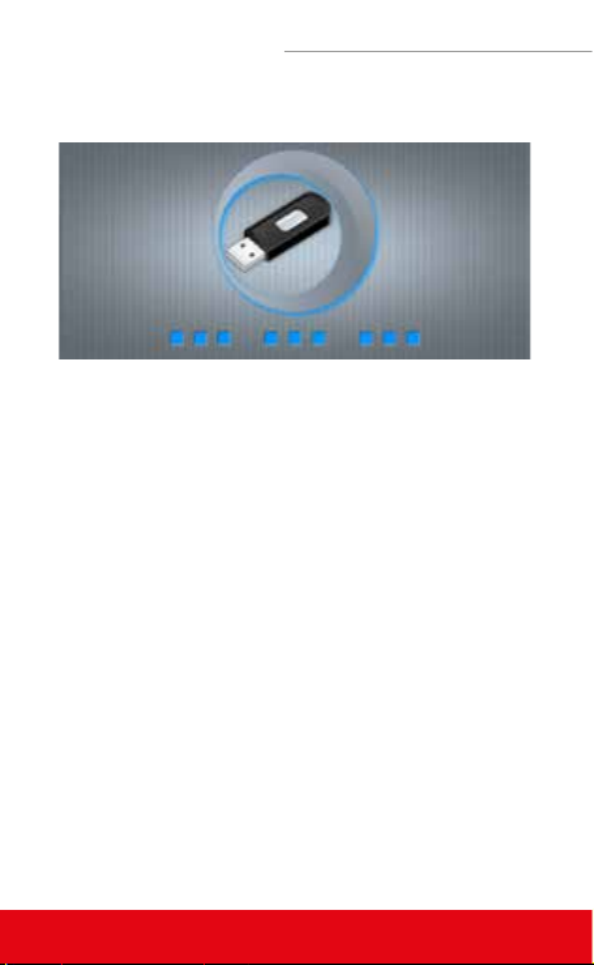

3. After connecting, the screen will display the interface
as below:
Enter into USB mode indicates it is connected to the
PC, the PC can auto recognize new GPS navigation, GPS
navigation will stop the current operation and switch into
the PC connected interface.,
[ ] Note Data security: Please copy the data to the outer
storage device every time before you update your system
data. Our company takes no responsibility to any loss of
data.
[ ] Remark The GPS navigator will stop the operation
when it is connected with computer. When it is switched
into USB mode, you can take any operation.
[ ] Note In the process of communication, the following
operations will break o󰀨 the connection with computer, the
unnished data will be lost
1. Pull out the MINI USB cable;
2. Power o󰀨
3. Reset the system by using reset button or electric
switch.
www.modecom.eu
16
MODECOM NAVIGATION
IV. Primary function
4.1 The main interface and the function
4.1.1 Main menu
Picture 4-1
Click desktop date, as Picture 4-2:
19
MODECOM NAVIGATION
Open/close date and time button
This chapter introduces how to use GPS navigation.
4.2 Navigation Function Features and
Operation
According to your choice of navigation system, the
GPS navigator can make position by GPS satellite signal
receiver and display on the navigation map. The system
can calculate a best route after setting the destination,
which can help users to arrive the destination safely and
rapidly.
The system can let you enjoy the individual charm and
enjoy your trip by many di󰀨erent ways such as vision map,
vivid animation, voice indication, and words indication.
The specic navigation functions are depended on your
choice of navigating software. Please refer to the Naviga-
tion Software Instruction.
Notes
1. Map information
It is probably that the electronic navigation data is not
consistent with the real tra󰀩c instructions because of the
tra󰀩c construction development. Please do comply with the
highway condition and the actual tra󰀩c rules.
2. Navigation
The navigator o󰀨ers the route for the reference; deter-
mine the route by yourself, the driver may be more familiar
with the route than GPS navigator.
21
MODECOM NAVIGATION
Picture 4-5
Picture 4-6

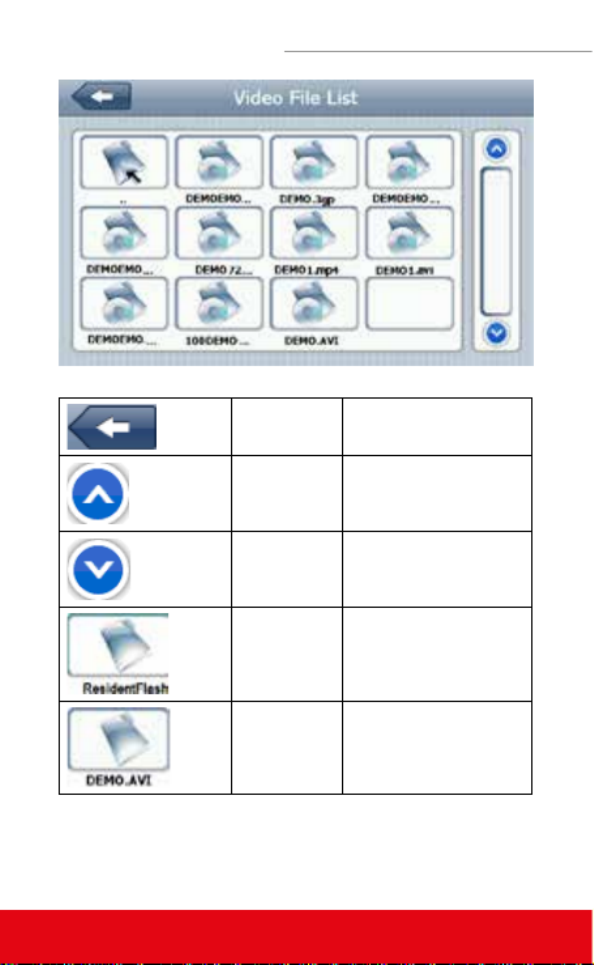

Close Close current folder
page
Display previous
page
Next page Display next page
Video folder
name
Display video folder
name
Video name Display video name
Click selected video enter into video play interface, as
Picture 4-7:
www.modecom.eu
22
MODECOM NAVIGATION
Picture 4-7

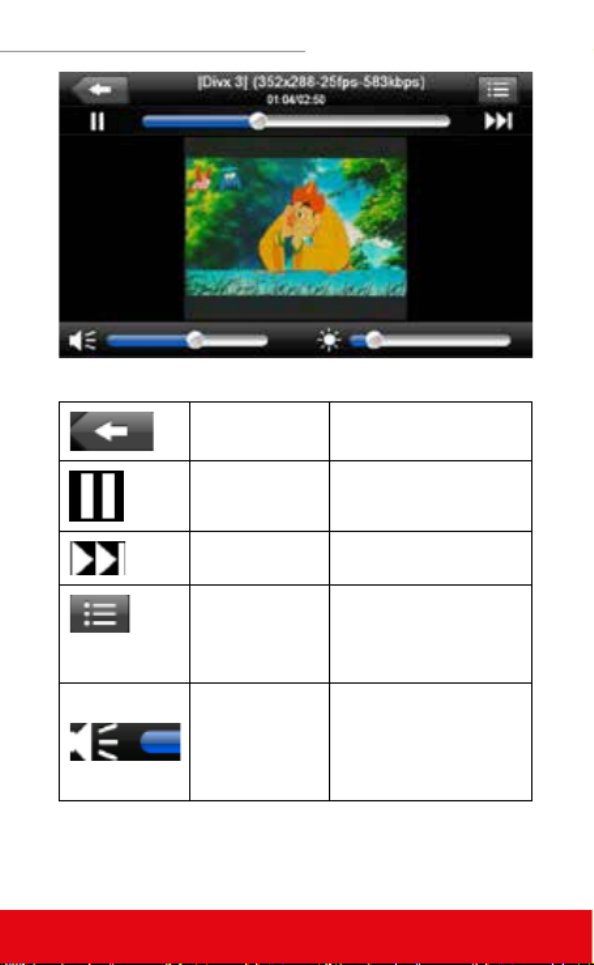

Close Click it to close video
player
Play It is paused, click it to
play
Next Play next video
Files list
Click it to switch into
video play interface,
select your favorite
movie(as Picture 4-6)
Volume
Click it and left move
it to decrease system
volume;
click it and right move
to increase volume
23
MODECOM NAVIGATION

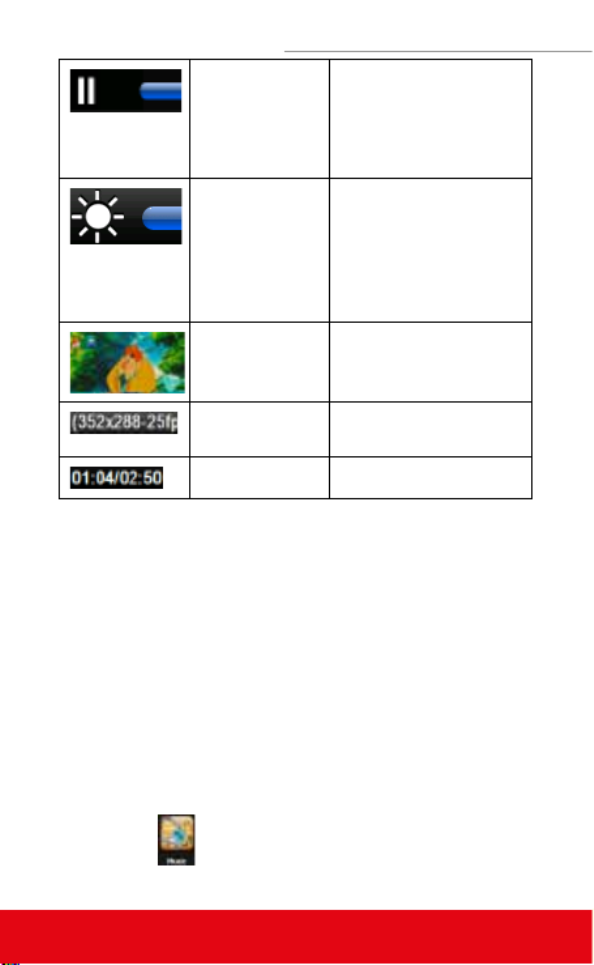

Progress ad-
justment
Right/left move to
adjust progress via
stylus, left move to
backward, right move
to forward
Brightness ad-
justment
Right/left move to ad-
just brightness, left to
increase brightness,
right to decrease bri-
ghtness
Play screen
Full screen play mode,
double click to return
to normal play mode
Music name Display current movie
name
Time Played time/ total time
4.4 Audio player interface and operation
This chapter will introduce how to use GPS audio player
to play your favorite music, make it become your portable
MP3.
4.4.1 Function features
Audio player support MP3 and WMA formats les; you
can set the play order as you like. Before audio player work,
please copy your audio les into any folder in another SD
card.
4.4.2 Operation methods
1 Click button to enter into audio play list, as Pic-
ture 4-8 shown:
25
MODECOM NAVIGATION

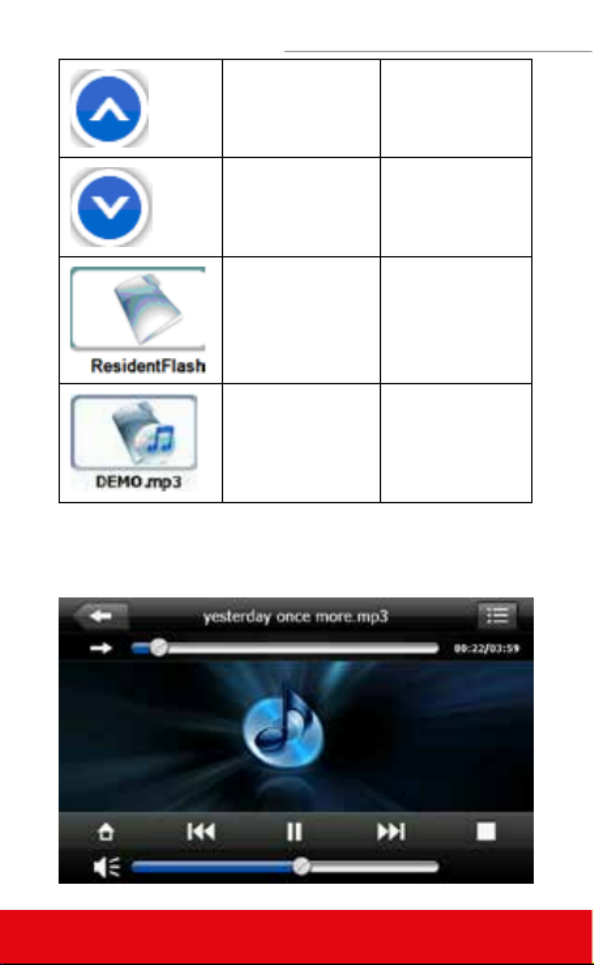

Previous page Display previ-
ous page;
Next page Display next
page;
Audio folder
name
Display the
audio folder;
Audio name Display audio
name
Click selected audio to enter into audio player interface,
as Picture 4-10:
31
MODECOM NAVIGATION
Picture 4-14
Picture 4-15 (text folder interfaces)
Close Click it to current folder
Previous
page Display previous page
Next page Display next page

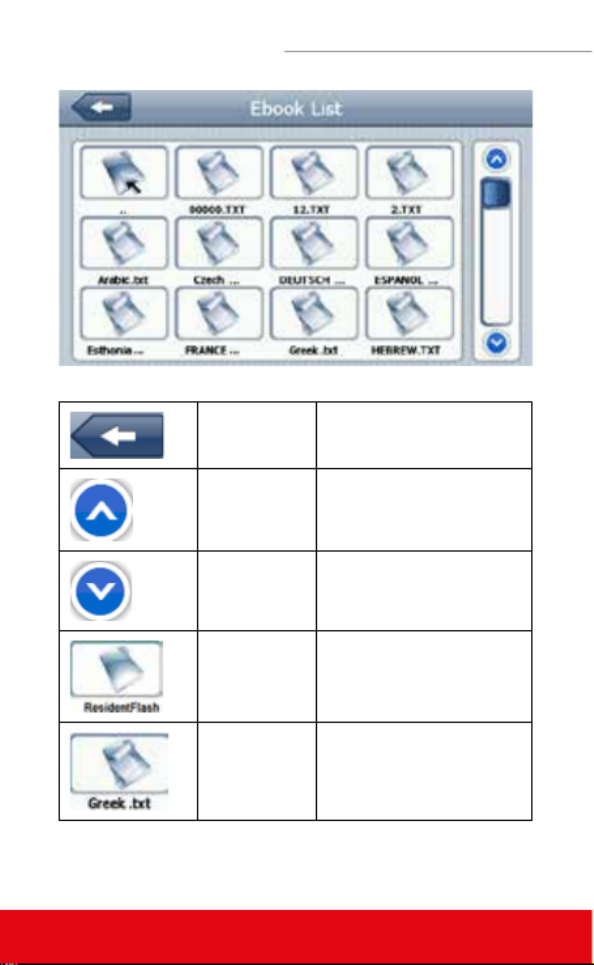

E-Book
folder name
Display E-Book folder
name
File name Display the le name
2. Click selected le name into E-Book reader, as Pic-
ture 4-16:
35
MODECOM NAVIGATION
Picture 4-19 (bookmark list interface)

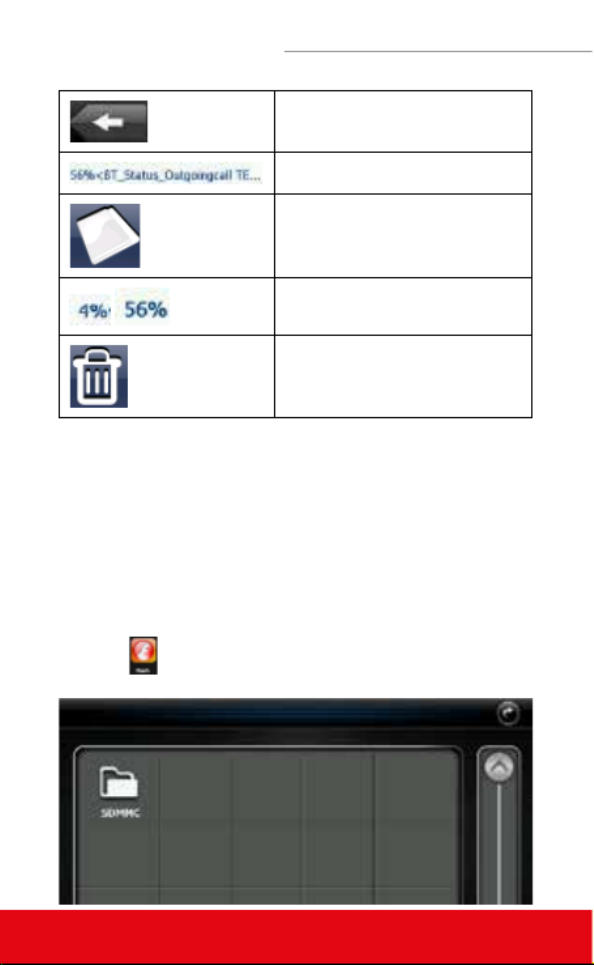

Return to E-Book interface
Click selected bookmark
Return to E-Book interface,
skip to selected bookmark
/
Display current reading prog-
ress
Delete selected bookmark
4.7 Flash interface and operation
This chapter introduces how to use GPS Flash.
4.7.1 Function features
1. Flash play
2. Support full screen play, progress selection, le se-
lection
4.7.2 Operation methods
Click button, open Flash interface as Picture 4-20:


Produkt Specifikationer

Mærke: ModeCom
Kategori: Navigator
Model: FreeWAY SX 7.0
Bredde: 174 mm
Dybde: 12.8 mm
Højde: 110 mm
Vægt: 250 g
Produktfarve: Black, Grey
Batterikapacitet: 950 mAh
Skærm diagonal: 7 "
Skærmopløsning: 800 x 480 pixel
Berøringsskærm: Ja
Kompatible hukommelseskort: MicroSD (TransFlash), MicroSDHC
Bluetooth: Ingen
Formfaktor: Fastgjort
Indbyggede højttaler(e): Ja
Understøttede videoformater: ASF, AVI, DIVX, MP4, WMV, XVID
Understøttede lydformater: MP3, WAV, WMA
Skærm: LCD
Operativsystem installeret: Windows CE 6.0
Strømkilde type: Batteri
Understøttede radiobånd: FM
Processorfrekvens: 800 MHz
Intern hukommelsestype: DDR
Understøttede Windows-operativsystemer: Windows CE
Processormodel: MStar MSB2531
Intern lagerkapacitet: 8 GB
Tilslutning af hovedtelefoner: 3,5 mm
Automatisk: Ja
Kort inkluderet: Ja
Kort dækning: Hele Europa
Licensens løbetid i år: 1 År
Livslang kortopdateringer: Ja
Widescreen: Ingen
Opbevaringsmedietype: Flash
RAM kapacitet: 256 MB
MP3-afspiller: Ja
Mini-USB 2.0 porte, antal: 1

Har du brug for hjælp?

Hvis du har brug for hjælp til ModeCom FreeWAY SX 7.0 stil et spørgsmål nedenfor, og andre brugere vil svare dig
