Side 1/4
Modern Forms
www.modernforms.com
Phone (800) 526.2588 • Fax (800) 526.2585
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761
Phone (800) 526.2588 • Fax (800) 526.2585
Modernforms retains the right to modify the design of our products at any time as part of the company's continuous improvement program. MAY, 2014
INSTALLATION INSTRUCTION
WS-3226
WARNING
IMPORTANT: NEVER attempt any work without shutting o the electricity.
- Read all instructions before installing.
- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local
regulations.
- Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or
switch ”OFF” the circuit breaker switch(es) that control the power to the xture or room that you are working on.
- Place the wall switch in the “OFF” position.
CAUTION
- All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts
that are worn out or broken. Failure to follow this instruction could invalidate the ETL/CETL listing of this xture.
CAUTION When handling the xture, do not apply pressure to the LEDs. Hold the xture by the base only.
AVERTISSEMENT
IMPORTANT : Coupez l’électricité avant TOUTE manipulation.
- Lisez toutes les instructions avant d’installer.
- Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les
règlements locaux.
- Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en
position d’arrêt (« OFF »).
- Placez l’interrupteur mural en position d’arrêt (« OFF »).
MISE EN GARDE
- Toutes les pièces doivent être utilisées tel qu’il est indiqué dans ces instructions. Ne remplacez pas les pièces, n’en
laissez pas de côté et ne les utilisez pas si elles sont usées ou brisées. Le non-respect de ces instructions peut annuler
l’homologation ETL/CETL du luminaire. ISE EN GARDE Ors de la manipulation de l’appareil, ne pas appliquer de pression M
à la LED, tenir l’appareil par la seule base.
ADVERTENCIA
IMPORTANTE: NUNCA intente hacer trabajos sin desconectar el suministro eléctrico.
- Lea y comprenda todas las instrucciones e ilustraciones por completo antes de proceder con el ensamblaje e insta
lación de esta lámpara.
- Sistema está disenado para ser instalado por un electricista calicado, de acuerdo con el código eléctrico nacional
y las normas locales.
- Diríjase a la caja de fusibles o a la caja del interruptor de circuito principal en su hogar. Coloque el interruptor de ali
mentación principal en la posición “OFF” (APAGADO).
- Coloque el interruptor de la pared en la posición “OFF” (APAGADO).
PRECAUCIÓN
- Todas las piezas deben usarse como lo indican estas instrucciones. No reemplace las piezas, noomita piezas durante la
instalación ni utilice piezas gastadas o rotas. El incumplimiento de esta indicación podría invalidar la calicación
ETL/CETL esta lámpara. PRECAUCIÓN Al manipular el aparato, no aplique presión a los LED, mantenga el aparato en la
base sólo.

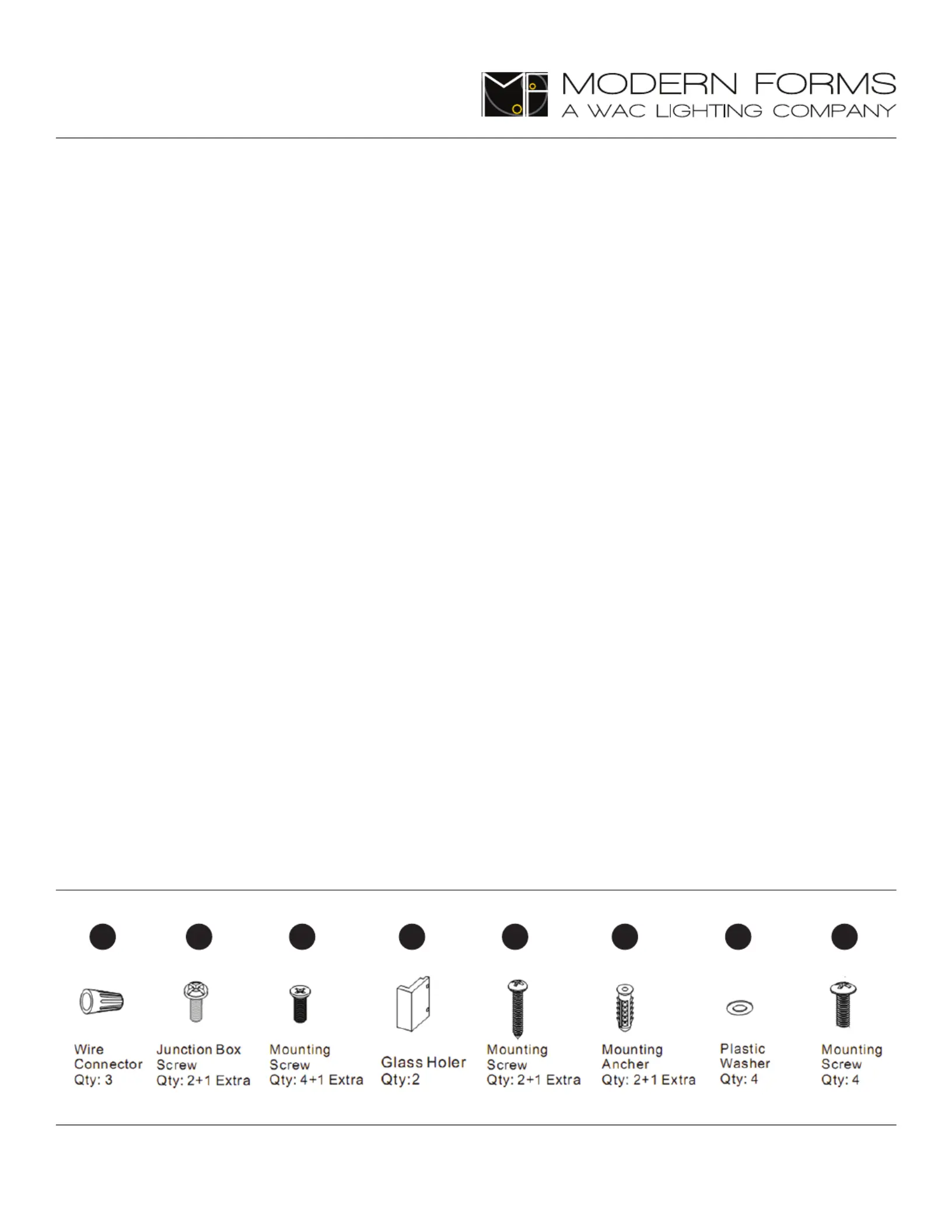

HARDWARE
A1 B1 C1 Q1 I1 J1 R1 O1
Modern Forms
www.modernforms.com
Phone (800) 526.2588 • Fax (800) 526.2585
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761
Phone (800) 526.2588 • Fax (800) 526.2585
Modernforms retains the right to modify the design of our products at any time as part of the company's continuous improvement program. MAY, 2014
INSTALLATION INSTRUCTION
WS-3226
PREPARATION
1. Shut o the power at the circuit breaker and remove existing xture, including the crossbar.
2. Carefully unpack your new xture and lay out all the parts on a clear area. Be careful not to lose any small parts necessary
for installation.
3. Remove screws (L1) from the xture.
CONNECTING THE WIRES (Fig. 2)
3. Remove screws (C1) from the xture.
4. Connect the electrical wires as shown in Fig, 2, making sure that all wire connectors are secured. If your outlet box has a green
or bare copper ground wire (N1), connect the xture’s ground wire to it. Otherwise, connect the xture’s ground wire directly to
the back plate (D1) using the green screw (E1) provided. After wires are connected, tuck them carefully inside the junction box.
*Requires Transformer to be recessed within the junction box
MOUNTING THE FIXTURE (Fig. 1)
5. Secure mounting backplate (D1) to the junction box (F1) using junction box screws (B1).The side of the mounting backplate
marked “GND” (E1) must face out
6. Secure the mounting backplate (D1) to wall using the screws (I1) and the plastic anchors(J1).
7. Connect the xture’s blue and red wires to the transformer’s red output wires; blue to red; red to the other red.
Use wire connectors (S1).
8. Place the xture back plate (K1) over the mounting backplate (D1)
and secure with screws (L1).
9. Place the pc shade (P1) onto the xture to cover the led.
COMPLETING THE INSTALLATION (Fig. 1)
10. Install the glass (G1) on the glass holder (Q1) with screws (O1)
and plastic washers (R1).
11. Secure the glass holder into the xture back plate (K1)
and secure with mounting screw (C1).
FIG.2
Fixture Wires
Black or
Smooth
Fixture Wires
White or
Ribbed
Fixture Wires
Bare Copper
(Ground)
House Wires
Black
(Hot)
House Wires
White
(Neutral)
House Wires
Green or Bare Copper
(Ground)
K1
D1
S1
A1
F1
N1
M1
J1
E1
B1
I1
H1
L1
P1
O1
R1
C1
Q1
G1

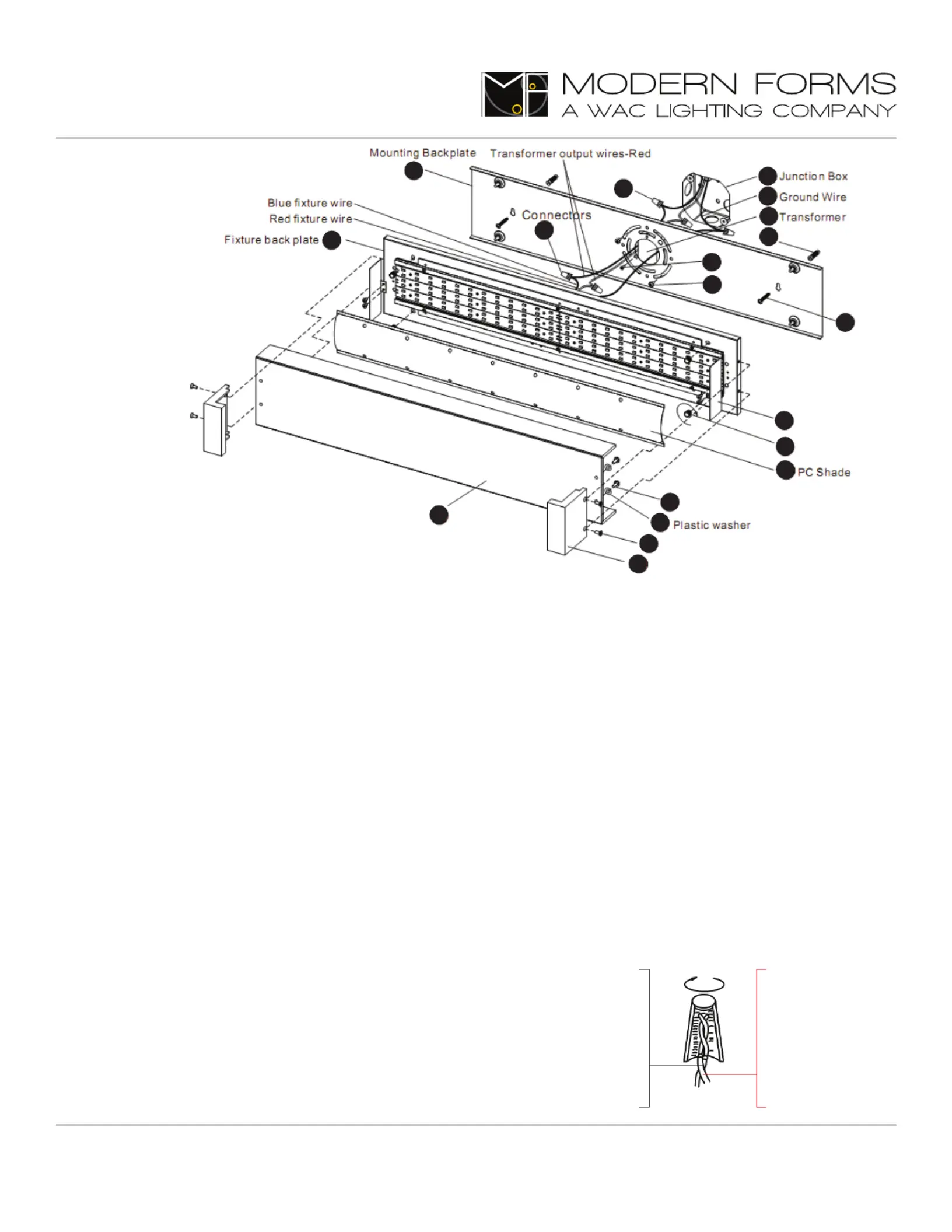

FIG.1
