Owner’s Manual
Important
Please read these instructions carefully before assembly, to reduce risk of fire, burn hazard or other injury.
Keep these instructions in a safe place for future use.
This manual covers the Morrison BC 260 SST, BC 260E SST Combination Unit and attachments.
Includes engines 1E34F and 1E34F-2E
www.morrisonoutdoor.com
Part N
o
: 555732.G.3
MORRISON COMBINATION UNIT
32
CULTIVATOR EDGER PRUNING SAW HEDGE TRIMMER BRUSHCUTTER
Sections
Brushcutter 2
Hedge Trimmer 18
Pruning Saw 30
Edger 44
Cultivator 52
Contents
Meaning of pictographs 2
Technical Data 3
Names of Parts 4
Safety Instructions 5
Ensuing Safe Operation 6
Fuel and Oil 8
Assembly 8
Starting and Stopping the Engine 10
Wearing the Harness 11
Inspection and Maintenance 13
Long-term Storage 15
Troubleshooting 15
About This Manual
Thank you for purchasing this product. This instruction manual
describes operating procedures and precautions as well as
inspection and maintenance procedures for the machine.
Before using this device, read this manual carefully until you are
familiar with the contents. Carefully observe all warnings and safety
instructions to ensure correct operation of the machine. Doing so
will ensure safe operation and optimum performance of the device.
This instruction manual covers the attachments, controls, and
engine of the Multi-Combination System. Use only attachments
specified by the manufacturer. Use of any other attachment can
result in damage to the equipment, possibly leading to death or
severe injury.
Be sure to strictly observe the important safety information that
follows each bulleted term below. Failure to follow the instructions
for correct operation contained herein can result in a severe
accident.
DANGER: Indicates that failure to follow the instructions creates
an imminent hazard leading to death orsevere injury.
WARNING: Indicates that failure to follow the instructions has
the potential to result in death or severe injury.
CAUTION: Indicates that failure to follow the instructions can
lead to minor injury or severe damage to the machine.
NOTE This is an auxiliary explanation that provides useful
information and instructions.

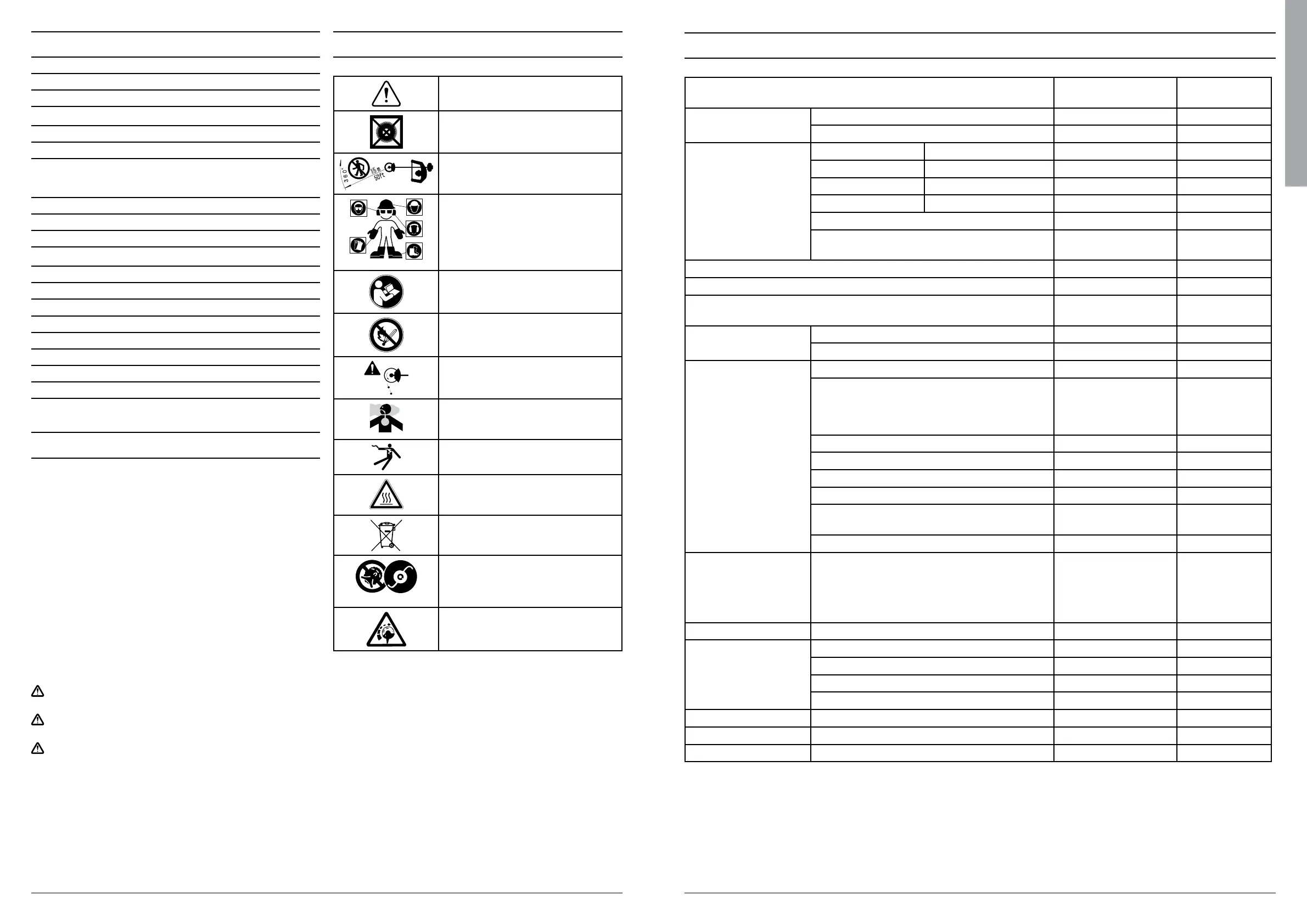

Meaning of Pictographs
DANGER - WARNING - CAUTION
Never attempt to mount a saw blade on
this brushcutter.
Do not operate the device within 15
meters of a child, animal, or bystander.
Wear safety gear.
1. Face shield or protective goggles
2. Head protection
3. Ear protection
4. Heavy-duty gloves
5. Non-slip safety shoes
Before using this device, read this
manual carefully until you are familiar
with the contents.
Do not refuel or operate the machine
near open flame.
Watch out for objects thrown from the
brushcutter.
Do not run the engine in a room or in any
confined area where exhaust emissions
can accumulate.
Never touch the spark plug cap or high-
voltage wire while the device is running.
Do not touch metal parts that can
become very hot during and immediately
after device operation.
Waste elecrical products should not
be disposed of with household waste.
Please recycle where facilities exist.
Warning! Never modify a trimmer or
cutter in any way. Improper use of any
trimmer can cause Serious or Fatal
Personal Injury.
Always Turn Off Engine and make sure
the cutting tool has stopped before
cleaning, removing or adjusting blade.
Technical Data - Brushcutter
Model
CG-260AF/
BC 260 SST
CG260AF-E/
BC 260E SST
Mases
Unit without cutting attachment, empty tank 4.04kg 5.9kg
Line Trimmer & Nylon Head 1.72kg 1.72kg
Cutting Attachment
Nylon Trimmer Nylon line diameter 2.5mm 2.5mm
Blade Specified blade diameter 255mm 255mm
Specified blade thickness 1.4mm 1.4mm
Number of cutting teeth 3 3
Center hole diameter 25.4mm 25.4mm
Rotational speed at maximum allowed engine
speed
8000 min
-1
9500 min
-1
Type of handle ‘D’ grip ‘D’ grip
Gear Ratio 17:22 17:22
Rotational direction of output shaft
Seen from above:
anticlockwise
Seen from above:
anticlockwise
External dimensions
Length of main unit 1000mm 1000mm
Length of drive shaft section to drive head 700mm 700mm
Engine
Name of Engine 1E34F 1E34F-2E (EU V)
Type
Air-cooled; 2 cycle;
vertical piston valve;
petrol engine
Air-cooled; 2
cycle; vertical
piston valve;
petrol engine
Dry Weight (kg) 3.2 3.1
Engine displacement 25.4cm
3
25.4cm
3
Maximum output (kW/r/min) ≥ 0.75/7500 ≥ 0.70/7500
Carburetor Diaphragm type Diaphragm type
Ignition
Non-contact electronic
ignition
Non-contact
electronic ignition
Method of Starting Recoil-type Recoil-type
Fuel used
Good quality 91 octane
gasoline with quality
proven motor oil for air
cooled 2 cycle engines
(ratio 25:1)
Gasoline mixed
with lubricating oil
(ratio of 30:1)
Volume Fuel Tank 0.75 L 0.65 L
Rotational speeds
Engine speed at maximum power 9000 min
-1
10000 min
-1
Recommended maximum engine speed 8000 min
-1
7800 min
-1
Output shaft speed 7500 min
-1
7500 min
-1
Recommended engine idling speed 2500 min
-1
2800 min
-1
Sound pressure levels
1)
Racing (L
PR
) ≤ 102 dB ≤ 102 dB
Sound power levels
2)
Racing (L
WR
) ≤ 120 dB ≤ 120 dB
Vibration levels
3)
Racing (R/L) ≤ 15 m/s
2
≤ 15 m/s
2
1) Reference for harmonized standard: ISO 22868
2) Reference for harmonized standard: ISO 22868
3) Reference for harmonized standard: ISO 22867
