Please read this manual properly before use and follow all the instructions
carefully.
Once you have read the manual you should store it in a safe place for
future reference.
You should only disassemble the pedals if you are familiar with the
technology and if you have all the necessary tools at hand.
Motobicycles-36 UG
Berlin, Germany
www.motobicycles.com
support@motobicycles.com
Thank you for choosing the MOTO Pedal. This manual has been designed
to assist you with technical support. Should you have any questions please
check this manual and if necessary contact an experienced bicycle mechanic or
support@motobicycles.com.
The MOTO Pedal is manufactured completely in Germany to the highest
quality requirements and assembled carefully by hand. However, should you
have reason to complain please contact your bicycle dealer or the MOTO
customer support team.
MOTO quality Safety notes
Urban Cycling Pedal
Manual
German patent and foreign patents pending
Safety notes
Please note that the pedals need to be driven for 50 to 100 km before the slide
bearings reach their nal smoothness.
For information regarding pedal maintenance, please read the instructions
below or visit our website. Please note that the pedals are not designed for
competition use.
We recommend lubricating the bearings with BERULUB FR 16 or equivalent
lightweight, silicone-free, synthetic special grease with PTFE additives.
Contents
Construction Initial adjustments
FasteningAssembly tool
When mounting the pedal, please follow the installation instructions
and the suggested torque strength given by the crank arm manufacturer!
The pedal shaft terminates
in an 8 mm hex socket.
An 8 mm Allen key is needed to
mount the pedals on the crank arms.
2 MOTO Pedals Allen key 3 mm
2 Stickers
Griptape pad
Griptape pad
Plastic
half-shell
Threaded
metal shaft Plastic
half-shell
Wooden frame
Screws
Screws
O-Ring
Nuts
Nuts
Dismount the current pedals
Clean the crank thoroughly, especially the thread of the
pedal crank arm
1.
2.
5 mm
Right pedal
Attention! The right pedal has a right hand thread and the left pedal
has a left hand thread at the pedal shaft for mounting on the crank arm.
Copyright Motobicycles 2015
Designed in Berlin
Engineered, produced and
assembled in Germany
©
Left pedal
The left pedal is further identiable by a groove / letter on the
pedal collar.
If the pedals develop a slight clicking sound after intensive use, this indicates
that the bearings should be retightened. Please proceed as described in
maintenance.
Slight clicking
Maintenance and care
To maintain optimal functionality of the pedals, they should be serviced every
few hundred kilometers. This is done in a few simple steps and takes less than
5 minutes. To allow servicing if required, the Griptape pads are designed to be
reused several times according to the state of their wearout.

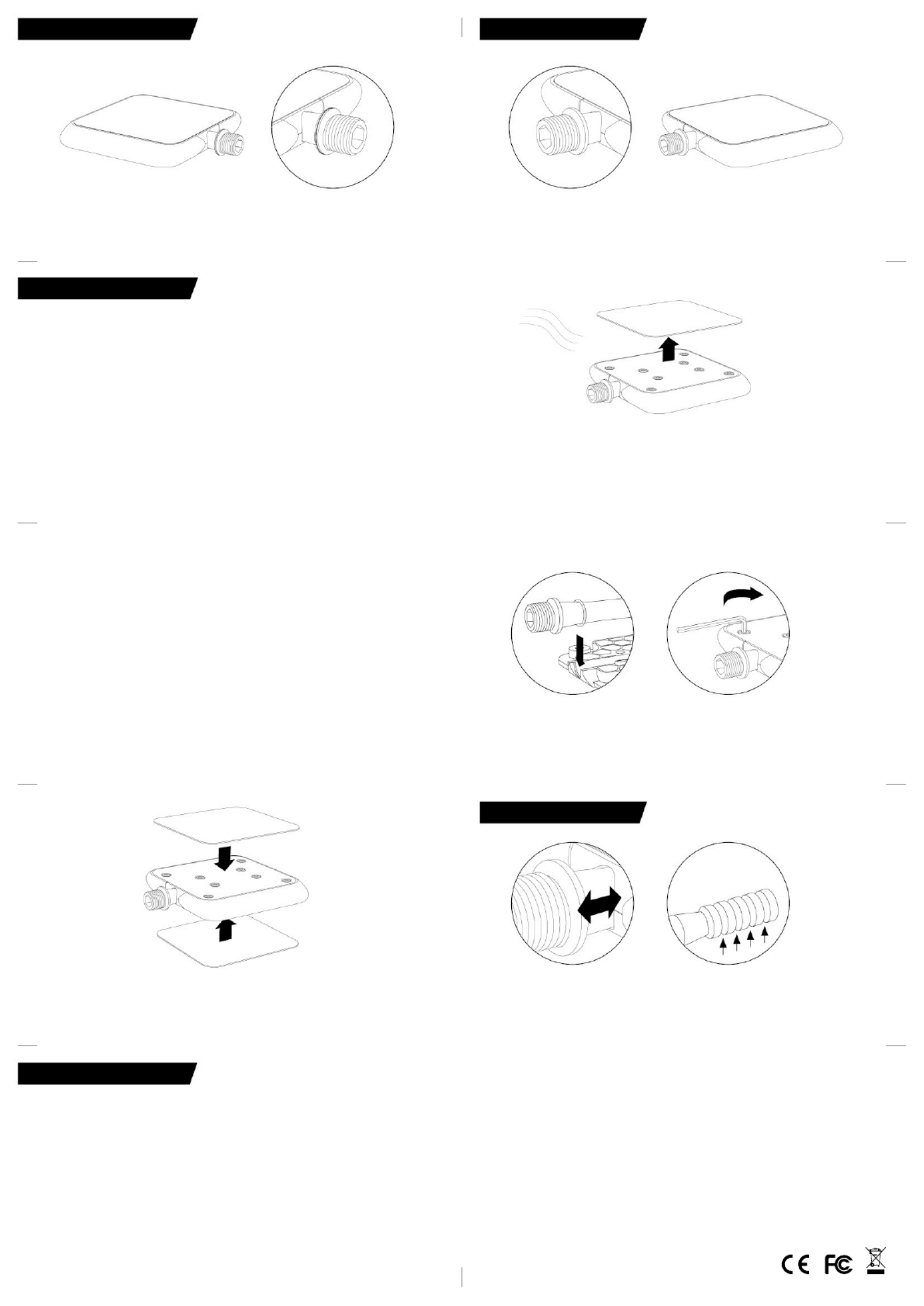

1. Remove Griptape (see diagram to the right)
Heat Griptape with a hair dryer for a few seconds and remove it carefully.
2. Seperate half-shells
Use the Allen key 3mm, included in the package to unscrew the half-shells.
Apply heat with a hair dryer in order to remove Griptape.
Fitting O-ring into designated grooves and tightening half-shells.
5. Apply Griptape
Stick on new or used MOTO Griptape pads on the top and bottom sides
of the pedals.
3. Grease pedal shaft
Clean and grease pedal shaft sufciently. We recommend lubricating the
slide bearings with BERULUB FR 16 or equivalent lightweight, silicone-free,
synthetic special grease with PTFE additives.
4. Tighten half-shells (see diagram to the right)
Make sure the O-ring is tted into the designated grooves of the half-shells to
prevent damage. Tighten the screws of the plastic half-shells with a torque of
120-150 Ncm. You can use the Allen key, included in the package.
Find more useful hints at
www.motobicycles.com/faq-en.html
Distance between platform and crank arm can be extented or reduced by 5
mm. To adjust pedal width, unscrew half-shells and change position of the pedal
shaft; see also maintenance. This provides additional space for large shoes.
5 mm
Adjustment
Right
Left
Pedal width-adjustment
